Cruze Round Concealed Individual Diverter + Thermostatic Control Valve with Handset + 300mm Shower Head

Cruze Round Concealed Individual Diverter + Thermostatic Control Valve with Handset + 300mm Shower Head

Create your own private oasis with the Cruze Round Thermostatic Control Valve. An indulgent rainfall shower head combines with a futuristic pencil style handset for a versatile showering experience. The concealed shower valve ensures all the fittings and fixtures are hidden, resulting in a clean, minimalist look for your bathroom. Smooth, rounded controls in shiny chrome allow you to find the perfect temperature and flow and switch seamlessly between the two outputs. This hardwearing set is specially designed with fuss free cleaning in mind, so removing limescale is the work of mere moments.

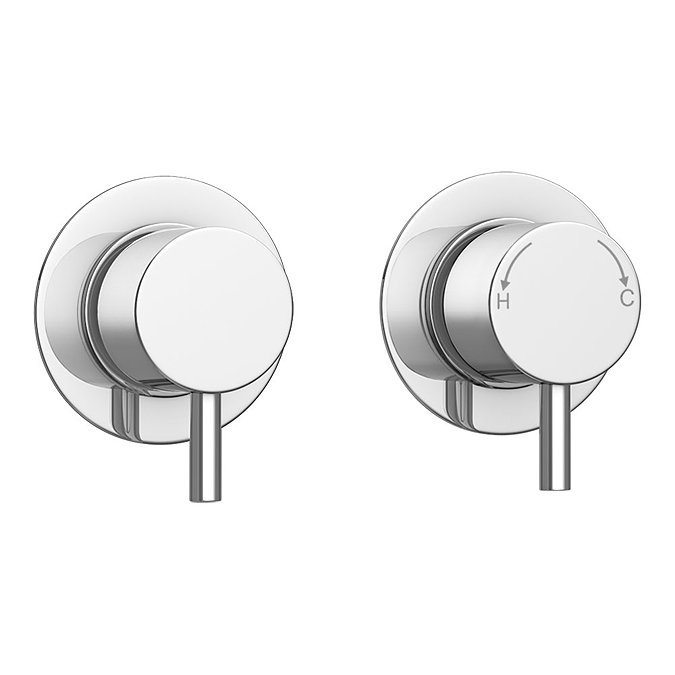

Shower Valve Details

• Diverter Valve: W70 x H70 x D138mm
• Thermostatic Control: W70 x H150 x D138mm
• Backplate: 80mm Diameter
• Style: Modern
• Range: Cruze
• Valve Handles: Round
• Colour/Finish: Chrome Plated

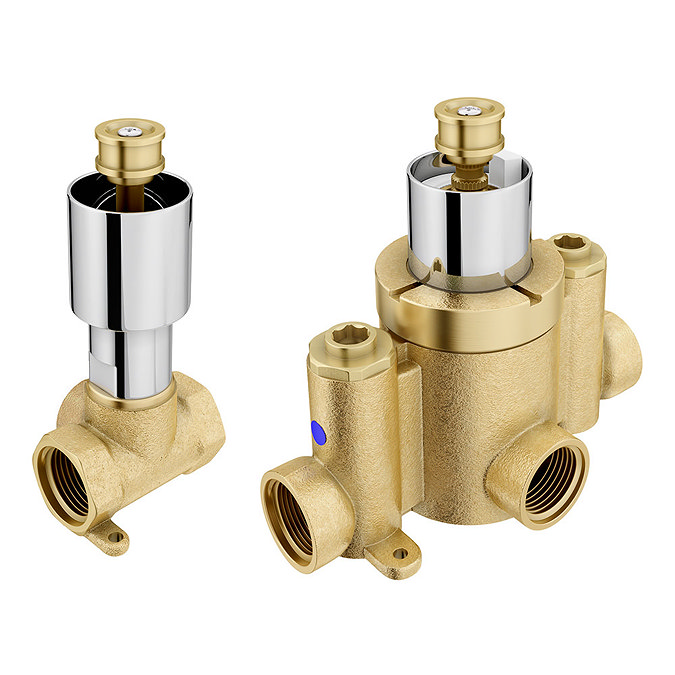

• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 2 Outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual diverter valve for switching water flow between 2 outlets.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

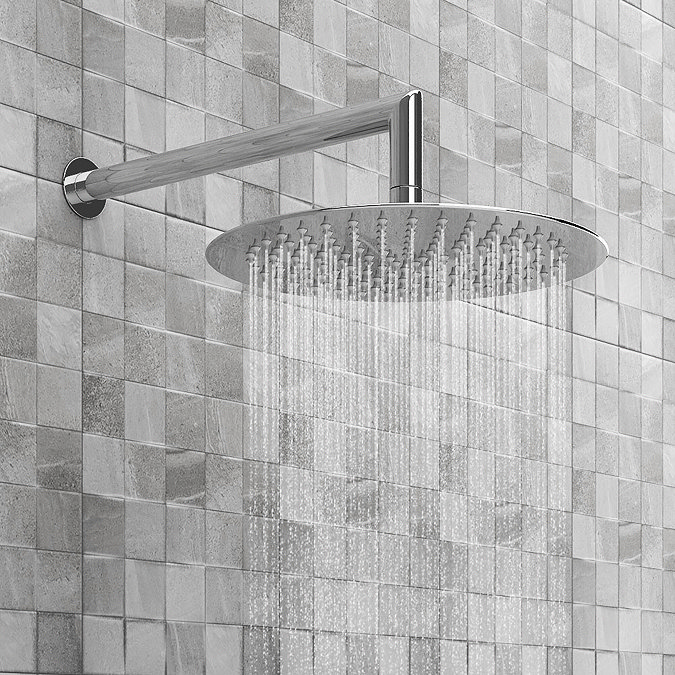

Shower Head Details

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Diameter: 300mm Head
• Rainfall Style
• Thickness: 3mm (excluding swivel joint)
• Shower Arm Length: 460mm
• Wall mounted 90-degree Bend
• Pressure requirement 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

Shower Handset Details

• Depth: 66mm
• Height: 244mm
• Width: 50mm
• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex -  Brass / Chrome plated
• Outlet Elbow with Parking Bracket - Brass / Chrome plated
• Handset - ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away

For further information refer to products installation instructions

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

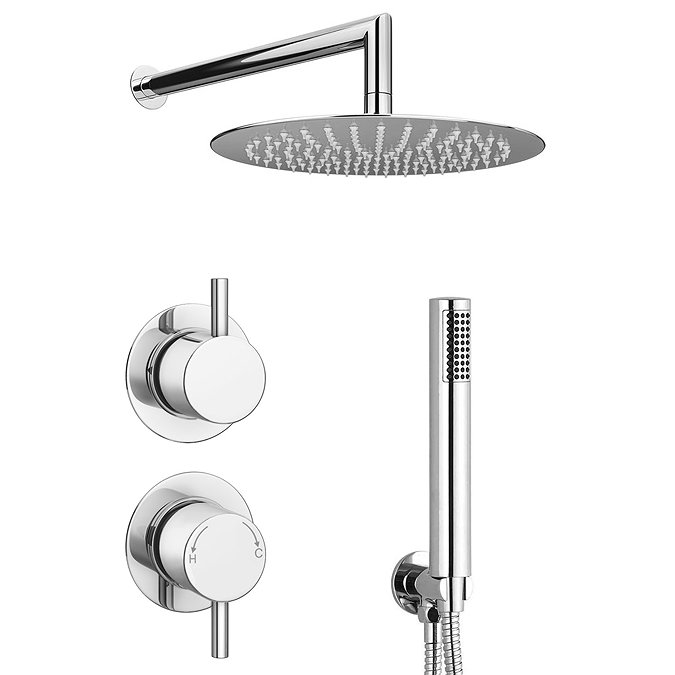

Comprises

(1) Cruze Concealed Individual Diverter + Thermostatic Control Shower Valve For 2 Outlets
(1) Cruze Round 460mm Wall Mounted 90 Degree Bend Shower Arm
(1) Cruze 300mm Ultra Thin Round Shower Head with Swivel Joint
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
