Cruze Round Concealed Dual Thermostatic Shower Valve with 200mm Head & Round Curved Arm

Part No:CSV04-PK1

£229.95

The stock status is In Stock

In Stock

()

Delivery OptionsAdd postcode to view all options

Delivery & Returns FAQs

Items that support this product

Product Information

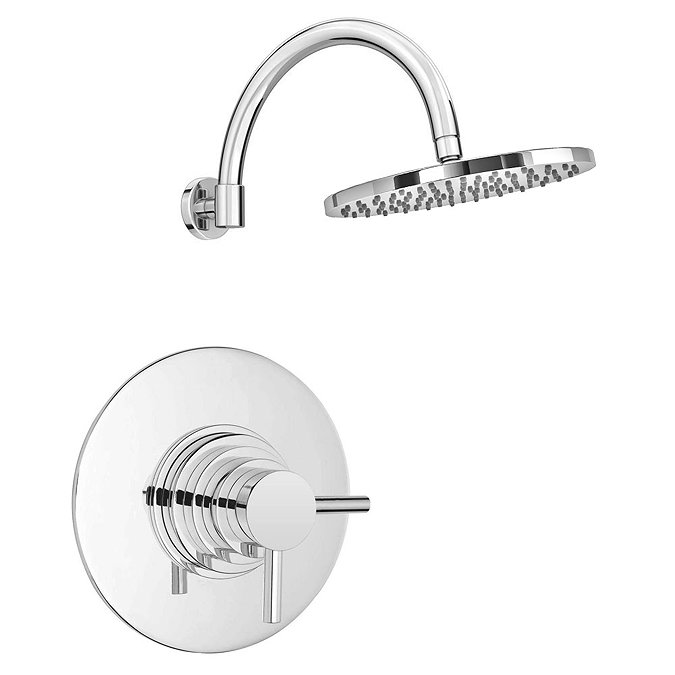

Cruze Round Concealed Dual Thermostatic Shower Valve with 200mm Shower Head and Round Curved Arm

The super‑sleek Cruze round concealed thermostatic shower valve with 200mm shower head and round curved arm provides reliable thermostatic control with two easy‑to‑use handles - one for flow and one for temperature.

The valve includes a built‑in anti‑scald safety device that activates if the cold‑water supply fails. This modern Cruze dual concealed thermostatic shower package adds a touch of sophistication and style to any bathroom.

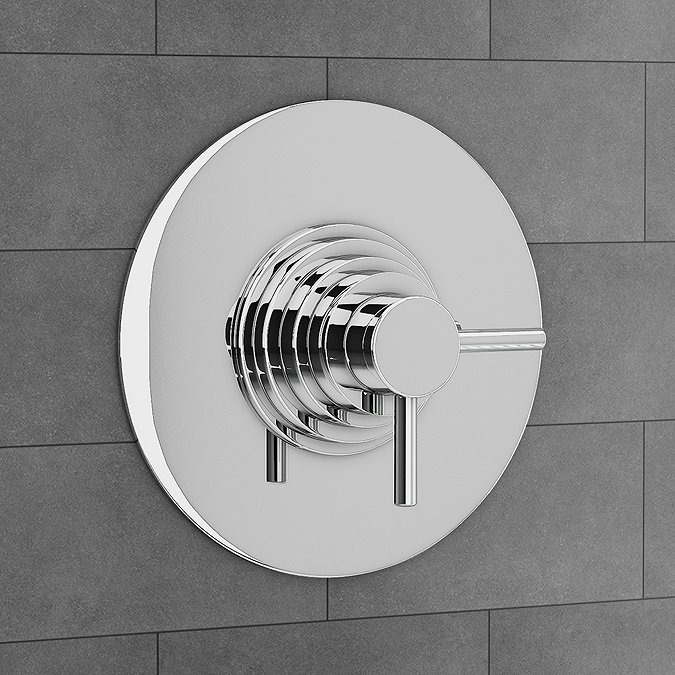

Shower Valve Details:

  • Diameter: 200mm
  • Type: Dual Concealed Shower Valve
  • Handle Type: Lever
  • Style: Modern
  • Colour/Finish: Chrome
  • Material: Solid brass
  • Operates a single shower accessory: 1 outlet
  • Wall mounted
  • Round back plate
  • Smooth operation with quality components
  • Water pressure: 0.5 bar to 5 bar
  • Anti‑scald technology
  • 150mm between pipe inlet centres
  • Inlets: 15mm
  • Outlet: 1/2" BSP
  • Suitable for modern pressurised plumbing systems
  • Flow rate of twin concealed valve:
  • 0.5 bar – 8.5 L/min
  • 1 bar – 12.5 L/min
  • 2 bar – 16.5 L/min
  • 3 bar – 19.5 L/min
  • Hot water temperature: 55–85°C
  • The shower valve will not work efficiently on a gravity‑fed tank system unless a booster pump is installed. If a pump is required, we recommend a universal or negative head pump.

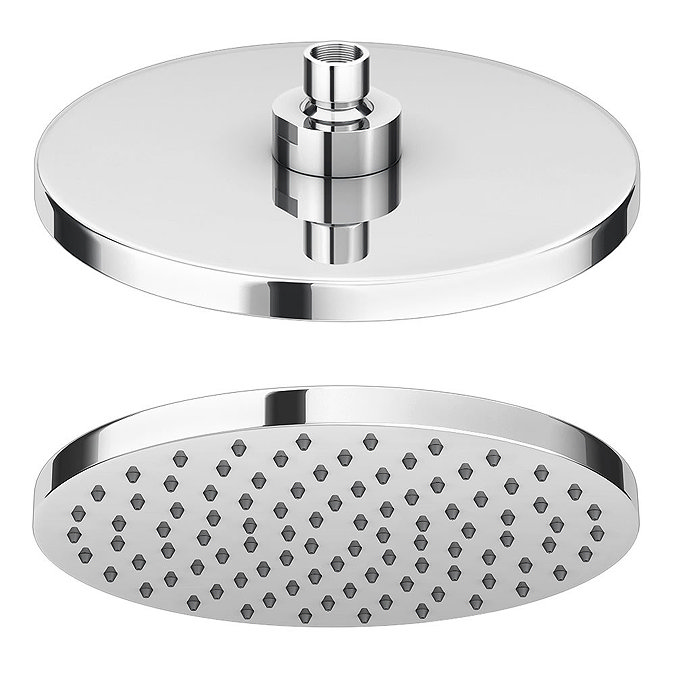

Shower Head Details:

  • Dimensions: 200mm diameter
  • Style: Modern
  • Colour/Finish: Chrome
  • Material: ABS plastic
  • Shape: Round
  • Water pressure: 0.5 bar min – 3 bar max
  • Supplied with swivel joint
  • Silicone nozzles allow easy removal of limescale
  • Chrome‑plated plastic (not metal)

Curved Wall‑Mounted Shower Arm Details:

  • Arm length: 303mm
  • Height: 180mm
  • Width: 60mm
  • Colour/Finish: Polished chrome
  • Material: Brass
  • Style: Modern
  • Shape: Round
  • Wall‑mounted curved design
  • Connection: G1/2"



Guarantee:
Shower valve: 5 years (1 year on serviceable parts such as cartridges and check valves)
Shower head and arm: 2 years
All measurements are approximate.
Images are for illustration purposes only.

Comprises:

Cruze 200mm Round Shower Head and Swivel Joint
Curved Wall‑Mounted Shower Arm – Chrome
Cruze Dual Concealed Thermostatic Shower Valve with Round Back Plate – Chrome

Gravity‑Fed Systems: If you live in an older property, you may have a low‑pressure gravity‑fed system. This shower valve requires a minimum of 0.5 bar, so we recommend installing a negative or universal pump (sold separately).
Please note: Positive head pumps will not work.
