Cruze Concealed Thermostatic Valve with Diverter, Fixed Shower Head + 4 Body Jets

Part No:CVDPK1

£219.95

In Stock

Delivery OptionsAdd postcode to view all options

Delivery & Returns FAQs

Spare Parts Available for This Item

Browse products that support this item.

Product Information

Cruze Concealed Thermostatic Valve with Diverter, Fixed Shower Head and 4 Body Jets

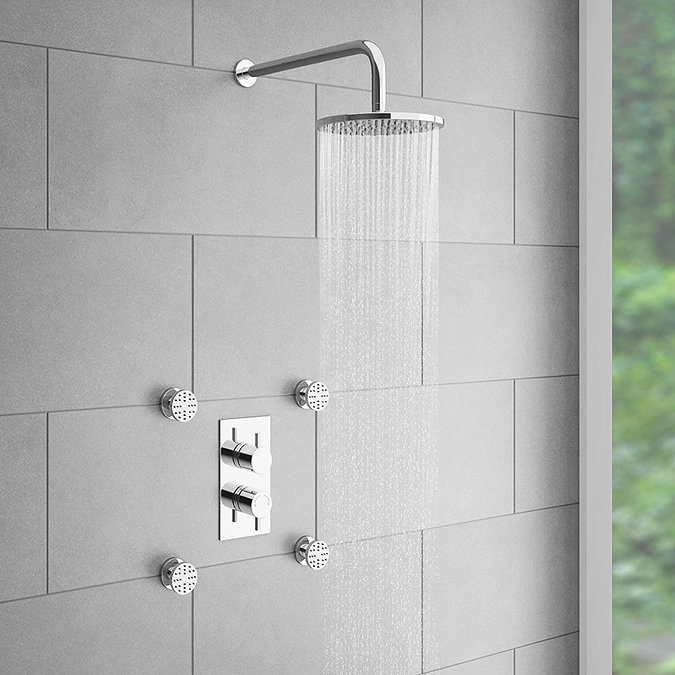

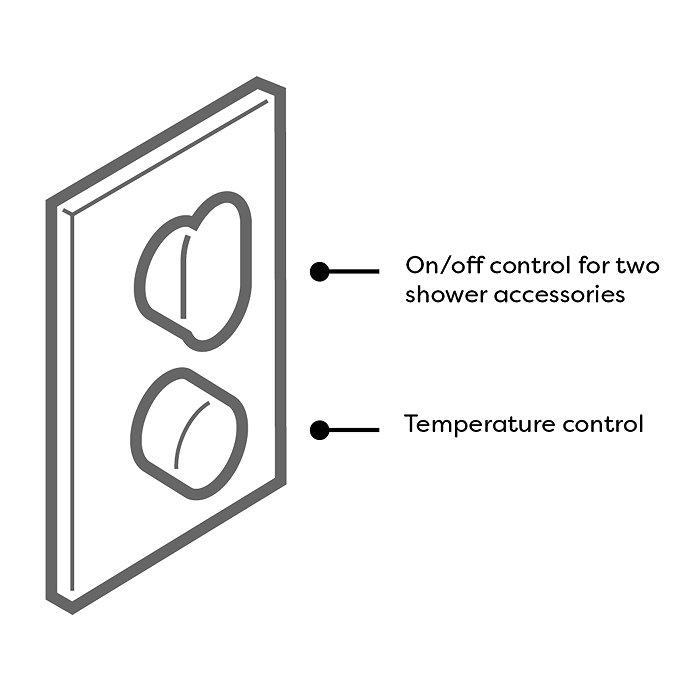

The stylish Cruze shower package includes a concealed thermostatic shower valve with a diverter, a round fixed shower head, and 4 body jets. This shower pack, which complements any modern bathroom suite, offers thermostatic showering via two easy-to-operate controls for temperature and flow. The shower valve has the added safety benefit of a built-in anti-scald device, which activates should the cold water supply fail. It diverts between two shower accessories: the fixed head and the body jets.

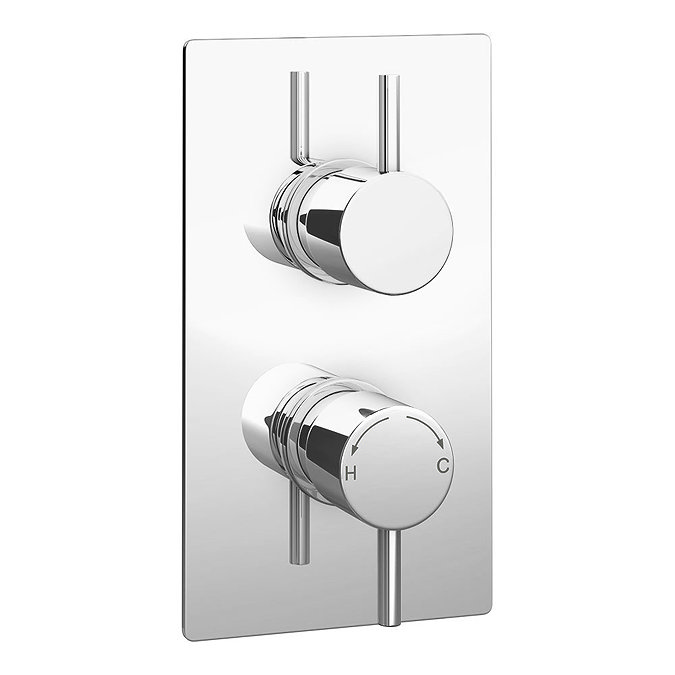

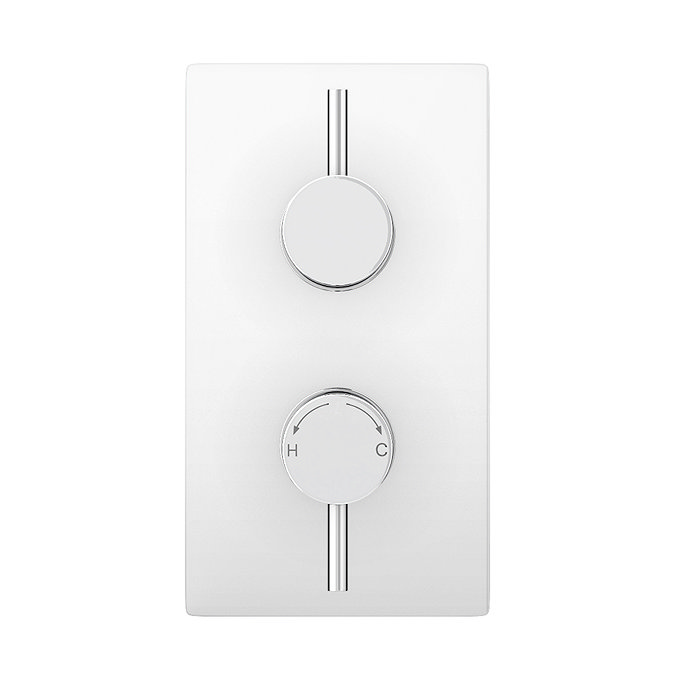

Shower Valve Details:

  • Style: Modern
  • Colour/Finish: Chrome Plated
  • Valve Handles: Round

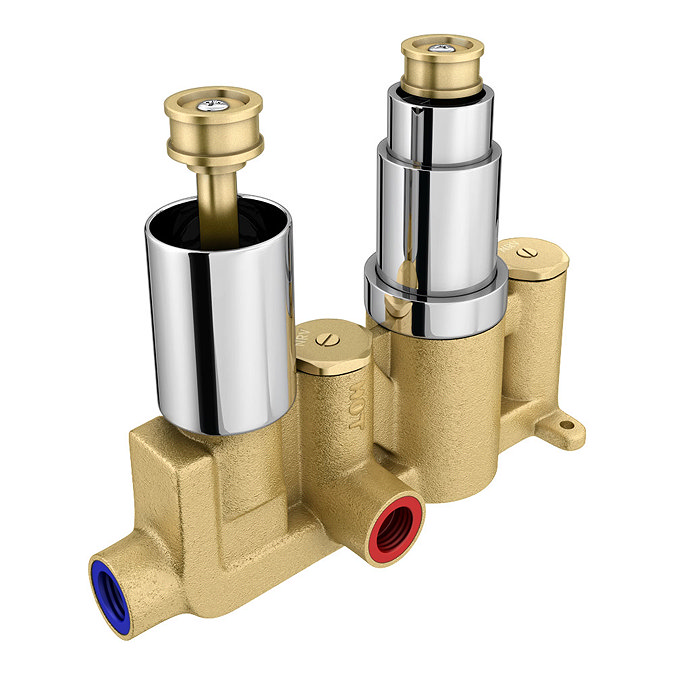

  • Brass Internals
  • Thermostatically controlled
  • Water Pressure: 0.5 bar min to 3 bar max
  • Rectangular Faceplate
  • Built-In Diverter
  • Can be fitted vertically or horizontally
  • Suitable for modern pressurised plumbing systems.
  • Hot water temperature: 55 to 85 Degrees
  • The shower valve will not work efficiently on a gravity-fed tank system unless a booster pump is installed. Should a pump be required, we recommend a universal or negative head pump.

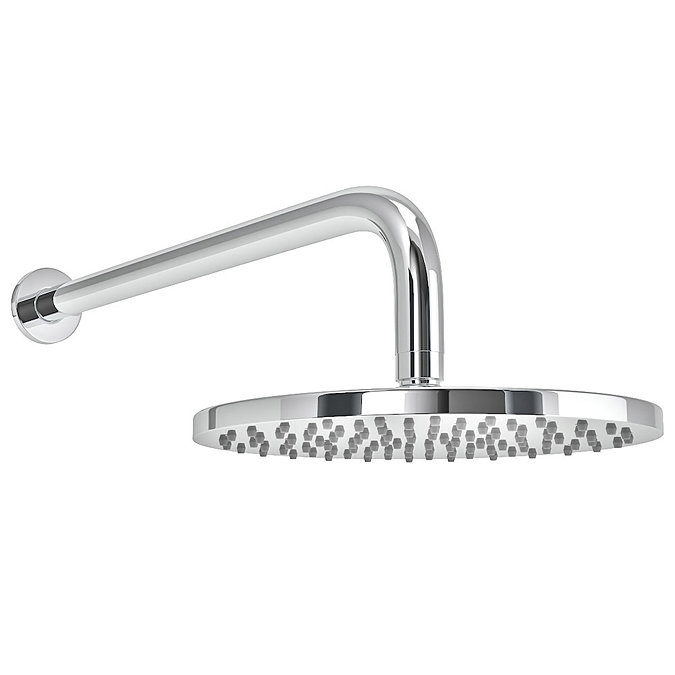

Shower Head Details:

  • Head Diameter: 200mm, Arm Length: 345mm
  • Style: Modern
  • Colour/Finish: Chrome
  • Water Pressure: 0.5 bar min to 3 bar max
  • Supplied with a swivel joint and a wall-mounted round arm.
  • The shower head is chrome-plated plastic, not metal.
  • Installation of the arm requires rear access behind the wall.

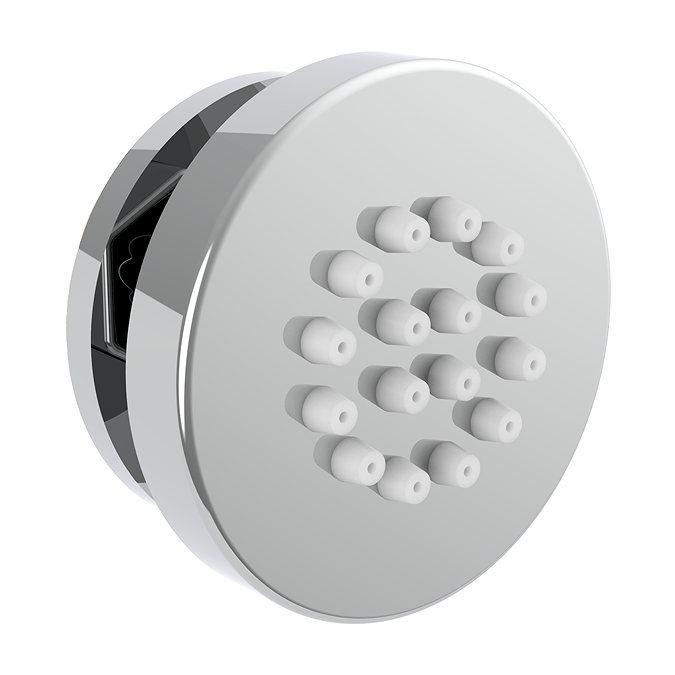

Body Jet Details:

  • Colour/Finish: Polished Chrome
  • Material: Brass
  • Product Type: Slim Round Body Jet
  • Features: Supplied with swivel joint, silicone nozzles for easy limescale removal



All measurements are approximate. Images shown are for illustration purposes only.

Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges). The shower head and arm are guaranteed for 2 years.

Comprises:

(1) Cruze Twin Square Concealed Shower Valve with Diverter - Chrome
(1) 200mm Round Head
(1) Round Shower Arm
(4) Body Jets

Gravity Fed Systems If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
