Cruze Concealed Modern Shower Package with Valve + Fixed Round Head

Part No.: CRZ-SCV-PK

£149.95

|

In Stock

Spare Parts Available for This Item

Overview

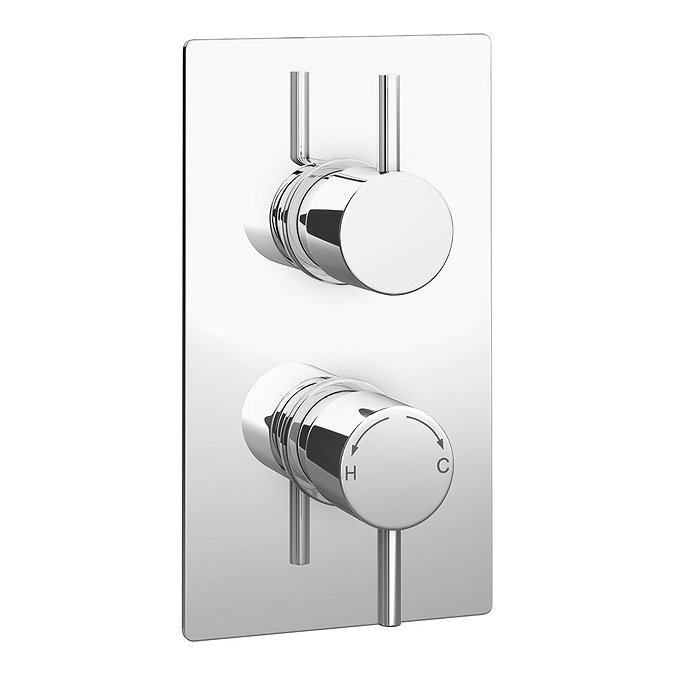

Cruze Concealed Shower Valve with Wall Mounted Fixed Round Head - Chrome

The Cruze Concealed Modern Shower Package with Valve makes a handsome accompaniment to a modern bathroom suite. This concealed shower valve features a rectangular faceplate with two easy to operate round handles to adjust the water temperature and flow to exactly how you like them. You can even fit the faceplate vertically or horizontally depending on your preferences. A chrome plated finish gives this thermostatically controlled shower a gleaming effect – and it's simple to clean with just a quick wipe. The overhead fixed shower head is adjustable and comes with a swivel joint and arm for straightforward installation.


Product Details
  • Style: Modern
  • Colour/Finish: Chrome Plated
  • Valve Handles: Round
  • Thermostatically controlled
  • Rectangular Faceplate
  • Adjustable Round shower head complete with shower arm
  • Shower head chrome plated plastic, not metal.
  • Shower head dimensions: 200mm diameter
  • Shower arm length: 345mm
  • Shower valve dimensions: H215 x W120mm

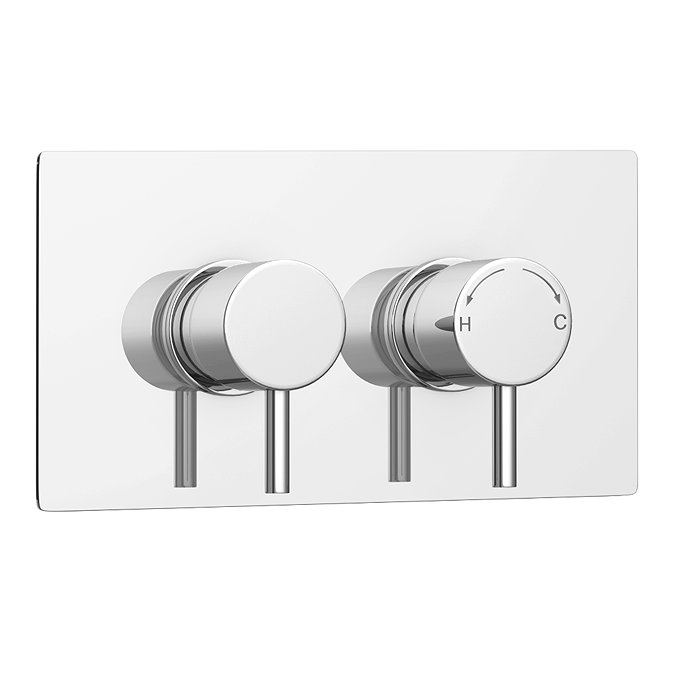

  • Shower valve can be fitted vertically or horizontally
  • Water Pressure: 0.5 bar min to 3 bar max
  • Suitable for modern pressurised plumbing systems.
  • Hot water temperature 55 to 85 Degrees
  • Shower valve will not work efficiently on a gravity fed tank system, unless a correct booster pump is installed.
  • Should a pump be required we recommend a universal or negative head pump.
  • Flow Rates:
  • 0.5 bar - 9.6 L/M
  • 1 bar - 14.1 L/M
  • 2 bar - 20.5 L/M
  • 3 bar - 24.8 L/M
  • 4 bar - 28.3 L/M
  • 5 bar - 32 L/M

Pictures for illustrative purposes only.

Installation of the arm requires rear access behind the wall.

All measurements are approximate

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Shower head and arm guaranteed for 2 years.

Comprises

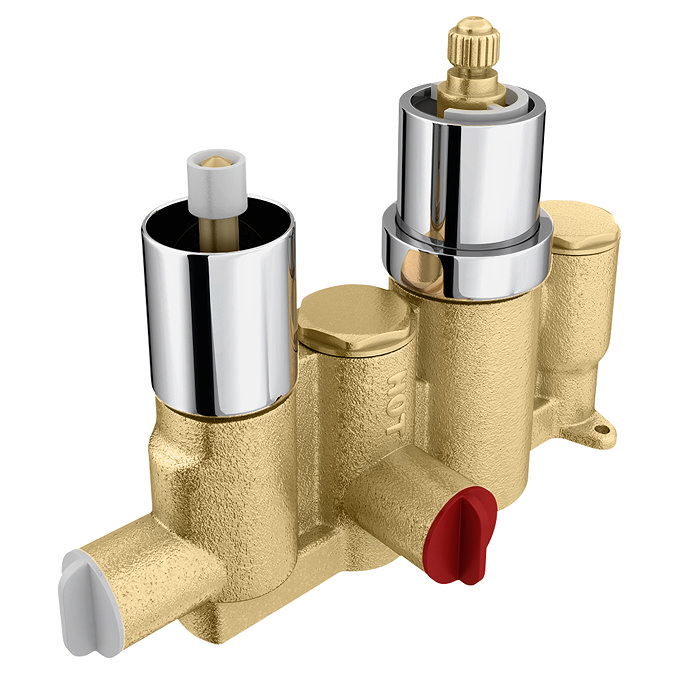

(1) Twin Round Concealed Shower Valve
(1) 200mm Round Head
(1) Round Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.

Product Overview

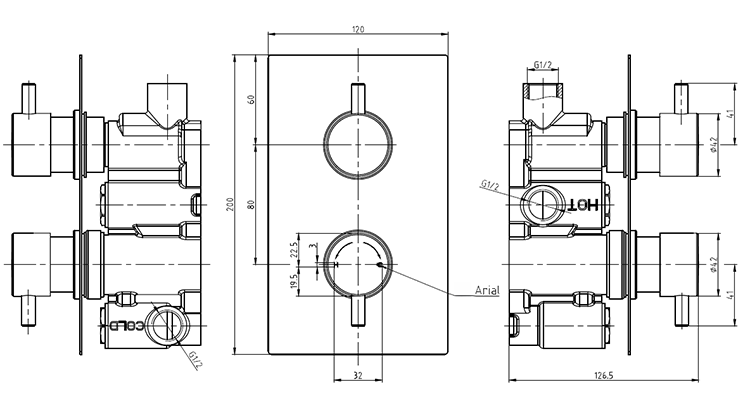

Dimension image
Dimension image

3 Questions

where are 2 inlet and outlet positions.

Asked by tee

ANSWER

Technical Team. replied on 5th November 2021

Hi, If you go on to our website and key in the product code then click on the instructions this will explain how & were you connect the unit. Thanks. Technical Team.

through wall connection

Asked by Chris

ANSWER

Shaun replied on 1st May 2019

Hi there. We would recommend using a 1/2 BSP female back plate elbow to secure the shower head to the wall. This is the most secure fixing type for mounting a wall arm with shower head.

what reason for shower not getting hot

Asked by spider

ANSWER

Sandra replied on 15th November 2016

Hi, Thank you for your question. I'm sorry to hear your shower is not getting hot. Please contact customer services on 0800 862 0878 and they will be able to assist you. Regards Sandra at VP
