Britton Bathrooms - Concealed Triple Thermostatic Valve with Square Fixed Head and Slider Kit
Part No:V52-V54
Discontinued
Product Information

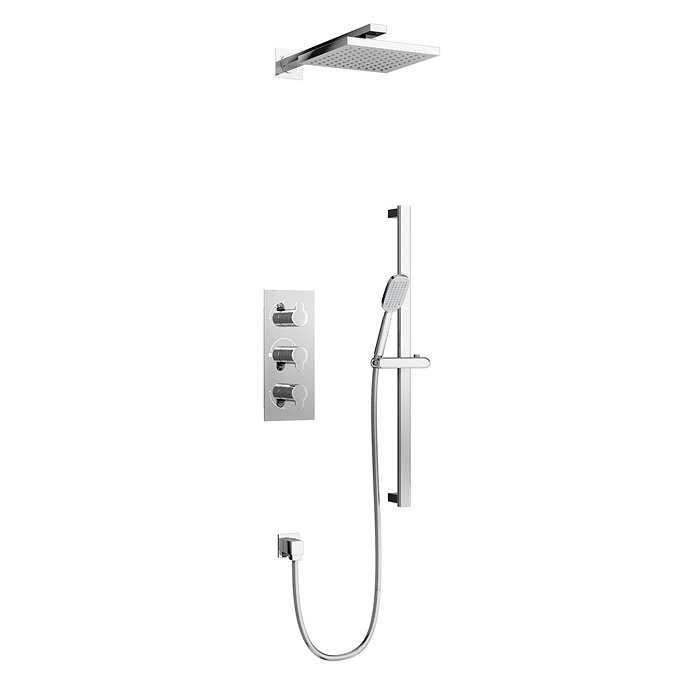

Britton Bathrooms - Concealed Triple Thermostatic Valve with Square Fixed Head and Slider Kit
An ultra stylish thermostatic valve with square shower arm, rose and slide bar kit. Features a shower valve with 3-way control, 20cm square fixed head and a single function shower handset. Within the valve there is an automatic adjuster which maintains temperature by adjusting the flow of each supply. This is useful in guarding against the possibility of scalding. If, for example, someone flushes a WC whilst you are showering the flow of hot water will immediately be adjusted to compensate for the reduced cold water flow. Comes with a 10 year guarantee.
Product Details
Compliance/Approvals
BS EN 1111:1999
Sanitary tapware. Thermostatic mixing valves (PN 10). General technical specification
BS EN 1287:1999
Sanitary tapware. Low pressure thermostatic mixing valves. General technical specifications
Flow Rates (taken through the handset)
0.2 Bar - 2.8 l/m
0.5 Bar - 4.4 l/m
1.0 Bar - 6.41 l/m
2.0 Bar - 9.41 l/m
3.0 Bar - 11.68 l/m
Flow Rates (taken through the rose)
0.2 Bar - 4.45 l/m
0.5 Bar - 5.63 l/m
1.0 Bar - 8.77 l/m
2.0 Bar - 12.66 l/m
3.0 Bar - 16.5 l/m
Comprises

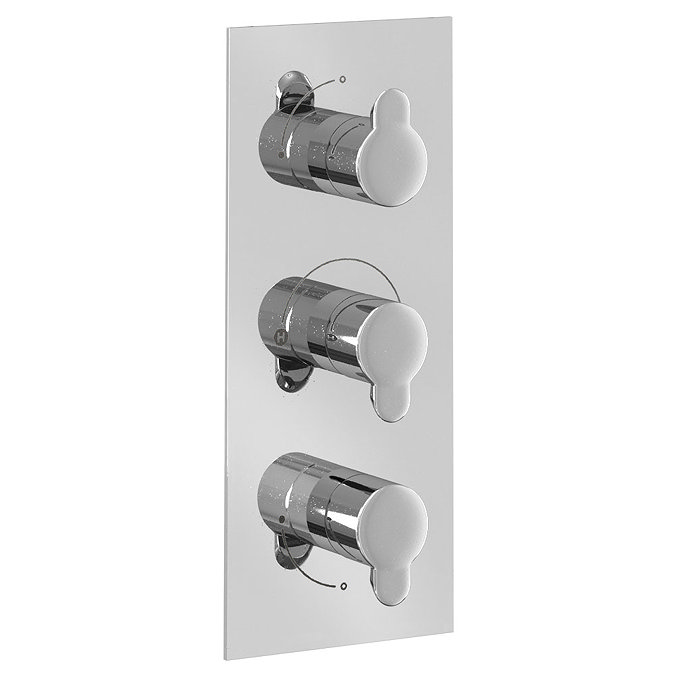

(1) Thermostatic shower valve with 3 way control, brass faceplate and handles - V52
(1) Square concealed shower kit including shower arm, fixed 20cm square shower head, slide rail, flexible 1 function shower handset, hose & elbow - V54
An ultra stylish thermostatic valve with square shower arm, rose and slide bar kit. Features a shower valve with 3-way control, 20cm square fixed head and a single function shower handset. Within the valve there is an automatic adjuster which maintains temperature by adjusting the flow of each supply. This is useful in guarding against the possibility of scalding. If, for example, someone flushes a WC whilst you are showering the flow of hot water will immediately be adjusted to compensate for the reduced cold water flow. Comes with a 10 year guarantee.
Product Details
- Product Code: V52-V54
- Finishes: Chrome plated
- Product Type: Modern
- Material: Bodies are of all brass construction
- 20cm Sqaure Fixed Head
- Single Function Handset
- Includes Hose and Elbow
Compliance/Approvals
BS EN 1111:1999
Sanitary tapware. Thermostatic mixing valves (PN 10). General technical specification
BS EN 1287:1999
Sanitary tapware. Low pressure thermostatic mixing valves. General technical specifications
Flow Rates (taken through the handset)
0.2 Bar - 2.8 l/m
0.5 Bar - 4.4 l/m
1.0 Bar - 6.41 l/m
2.0 Bar - 9.41 l/m
3.0 Bar - 11.68 l/m
Flow Rates (taken through the rose)
0.2 Bar - 4.45 l/m
0.5 Bar - 5.63 l/m
1.0 Bar - 8.77 l/m
2.0 Bar - 12.66 l/m
3.0 Bar - 16.5 l/m
Comprises
(1) Thermostatic shower valve with 3 way control, brass faceplate and handles - V52
(1) Square concealed shower kit including shower arm, fixed 20cm square shower head, slide rail, flexible 1 function shower handset, hose & elbow - V54
