Bristan - Qube Vertical Thermostatic Valve with Adjustable Riser

Part No.: QU-VSHXAR-C
£354.78
Estimated Delivery Time: 2-7 daysnotify me
Item Added To Basket
Added Product
FreeDeliveryOrders over £'499*'
Spend £ more to qualify forFree Standard Delivery*
Essential Items

Estimated Delivery Cost

Standard Delivery(2-7 Working Days) - £6.95
Orders over £499 - FREE

International Delivery Available

Description

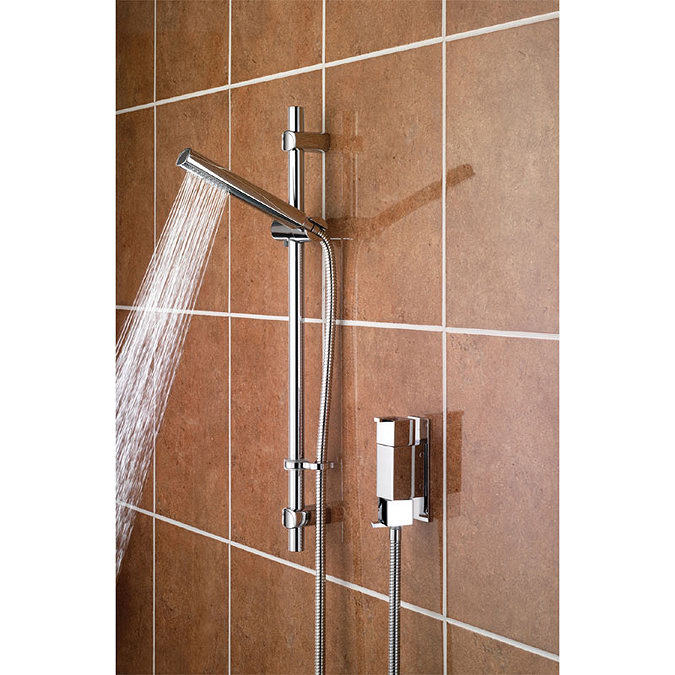

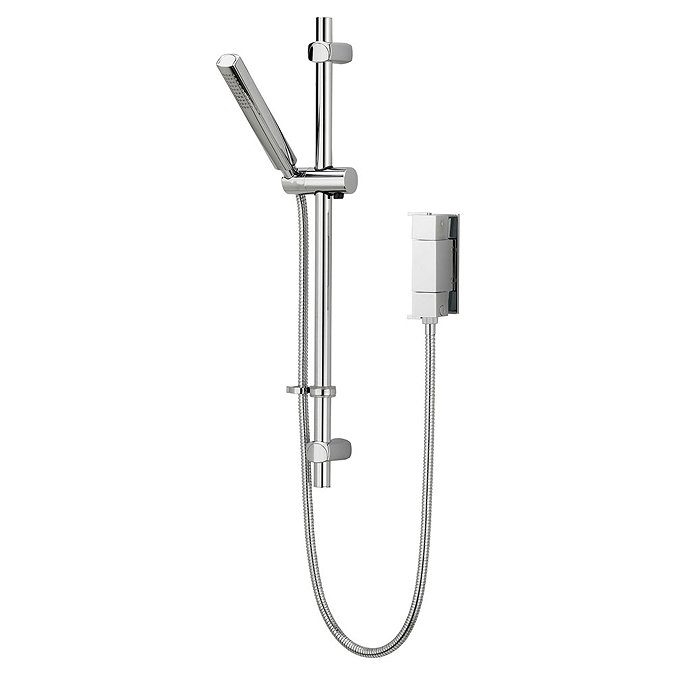

Bristan - Qube Vertical Thermostatic Valve with Adjustable Riser

The Qube shower valve has a wonderful modern design. Brass construction provides superior durability and conforms to BS EN 248 standards. This amazing valve trim includes lots of features and is suitable for all plumbing systems, an amazing addition to any bathroom.

Features

  • Product Code: QU VSHXAR C
  • Finish: Chrome
  • Product Type: Contemporary
  • Construction: Bodies are of all brass construction
  • Valve Type: ¼ turn ¾” inline ceramic disc valve
  • Cartridge Type: Thermostatic cartridge
  • Supply: Suitable for all plumbing systems, preferably balanced
  • Inlet Connections: 15mm push-fit connections integrated in back plate
  • Outlet Connection: G ½”
  • Water Pressure: Min. 0.1 bar, Max. 5.0 bar
  • Dimensions for Fitting: 45mm inlet centres

Additional Information

  • Dual control – Flow and temperature are controlled separately giving accurate control of both.
  • Thermostatic cartridge maintains showering temperature to +/- 1oC by compensating for changes in the incoming water temperature and pressure providing a stable outlet temperature.
  • Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of injury.
  • Factory set to a maximum of 38oC to eliminate the ability to select an unsafe temperature - this can be manually over-ridden up to 46oC to suit user preference.
  • Supplied with 1.5m hose, hose retainer, adjustable riser kit and single function handset with rub clean nozzles
  • Utilizes unique fast fit system
  • Chrome plated to BS EN 248.

Guarantee: 5 years covering manufacturing faults


Flow Rates

0.2 Bar - 4.3 l/m
0.5 Bar - 7.8 l/m
1.0 Bar - 12.2 l/m
2.0 Bar - 18.5 l/m
3.0 Bar - 22.7 l/m
5.0 Bar - 29.3 l/m
5 Years
Download Instructions
Product Dimensions
