Bristan Quadrato Thermostatic Bar Shower Valve inc. Rigid Riser + Fast Fit Kit
Part No:QD-SHXSMFF-C
Discontinued
Product Information

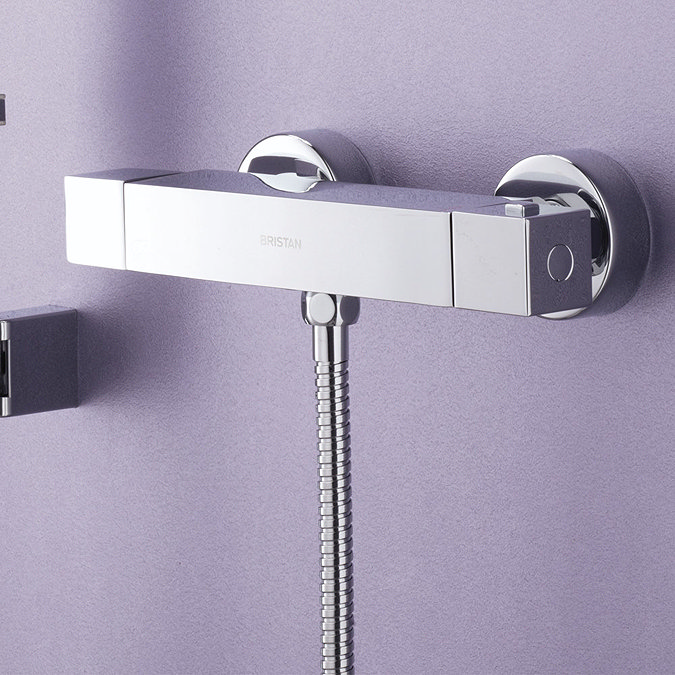

Bristan Quadrato Thermostatic Bar Shower Valve inc. Rigid Riser + Fast Fit Kit
The Quadrant shower valve has a beautiful and new age modern design. Brass construction provides superior durability and conforms to BS EN 248 standards. Comes with a five year guarantee, covering manufacturing faults. The shower valve utilises Bristan’s unique Fast Fit system which enables rigid fixing of this bar valve to 15mm pipework protruding through your cavity wall surface. Using this fast fix system the inlet pipe centres on this shower are now fixed at 150mm centres. This amazing valve trim includes lots of features and is suitable for all plumbing systems, an amazing addition to any bathroom.
Features
The Quadrant shower valve has a beautiful and new age modern design. Brass construction provides superior durability and conforms to BS EN 248 standards. Comes with a five year guarantee, covering manufacturing faults. The shower valve utilises Bristan’s unique Fast Fit system which enables rigid fixing of this bar valve to 15mm pipework protruding through your cavity wall surface. Using this fast fix system the inlet pipe centres on this shower are now fixed at 150mm centres. This amazing valve trim includes lots of features and is suitable for all plumbing systems, an amazing addition to any bathroom.
Features
- Product Code: QD SHXSMFF C
- Finish: Chrome
- Product Type: Contemporary
- Construction: Body is of brass construction and are designed to conform to BS EN 200
- Cartridge/Valve Type: ¼ turn ½“ceramic disc, Thermostatic cartridge
- Supply: Suitable for all plumbing systems, preferably balanced
- Inlet Connections: 15mm compression elbows with 150mm centres
- Outlet Connection: 15mm compression
- Water Pressure: Min 0.3 bar, Max. 5.0bar
- Dimensions for Fitting: 150mm (inlet centres)
- Chrome plated to BS EN 200
- Dual control – flow and temperature are controlled by separate handles, giving accurate control of both.
- Thermostatic cartridge maintains showering temperature to +/- 1oC by compensating for changes in the incoming water temperature and pressure giving the stable outlet temperature.
- Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of scalding.
- Factory set to a maximum of 38oC to eliminate the ability to select an unsafe temperature - this can be manually over-ridden up to 46 oC to suit user preference.
- Utilises unique fast fit system – wall mount WMNT10 C.

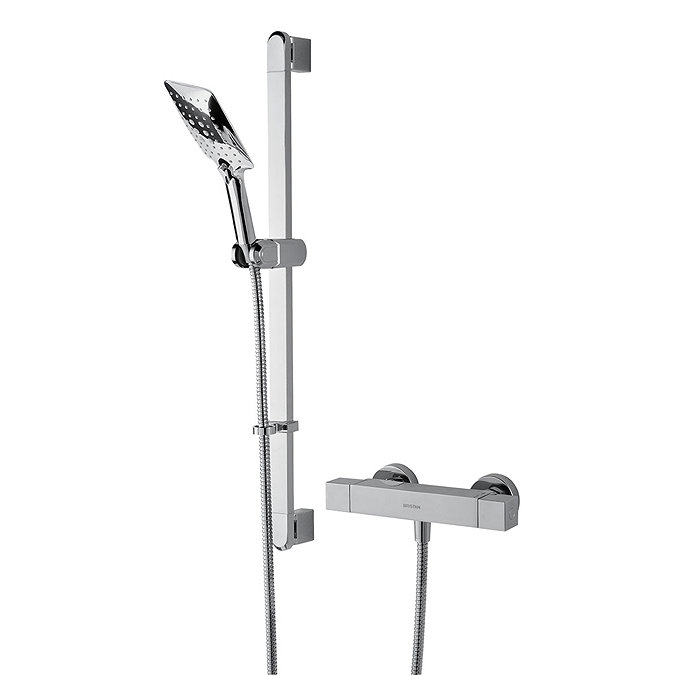

- Supplied with single mode rub clean handset, 1.5m shower hose, adjustable riser & hose retainer.
- Adjustable riser incorporates swivel rail for increased flexibility.
