Arezzo Gunmetal Grey Concealed Individual Stop Tap + Thermostatic Control Valve with Wall Mounted Shower Head

Arezzo Brushed Gunmetal Grey Concealed Individual Stop Tap + Thermostatic Control Valve with 200mm Wall Mounted Shower Head

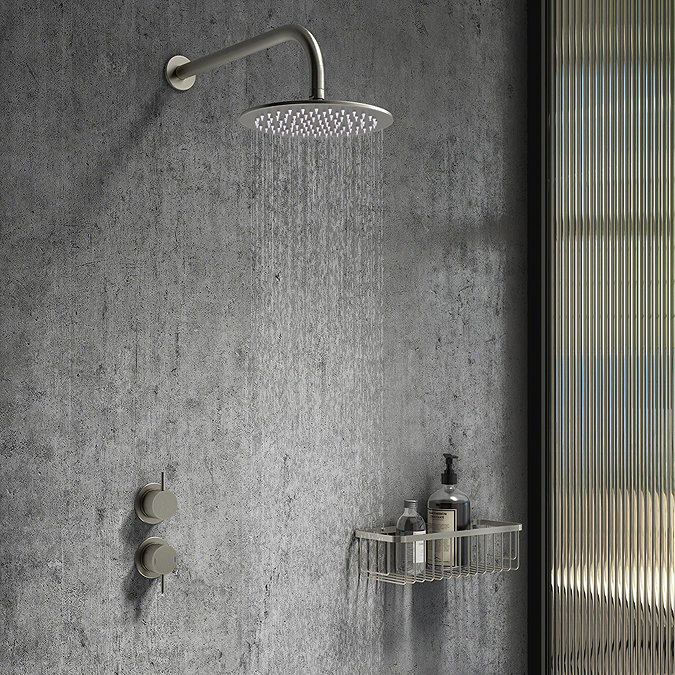

The Arezzo Concealed Individual Stop Tap and Thermostatic Control Shower Valve Pack features a quality brushed gunmetal grey finish with a striking modern round design. This shower valve pack is perfect for installing in a concealed arrangement, pack comes with a matching 200mm wall mounted fixed shower head.

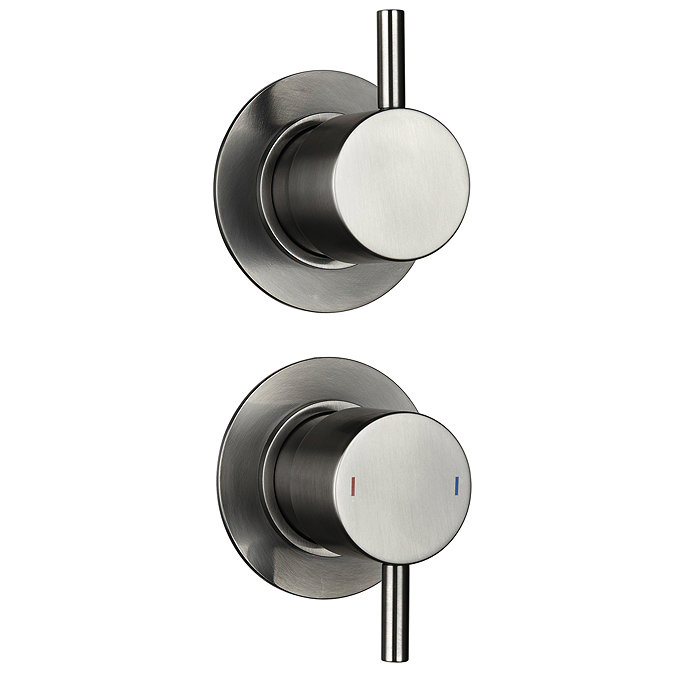

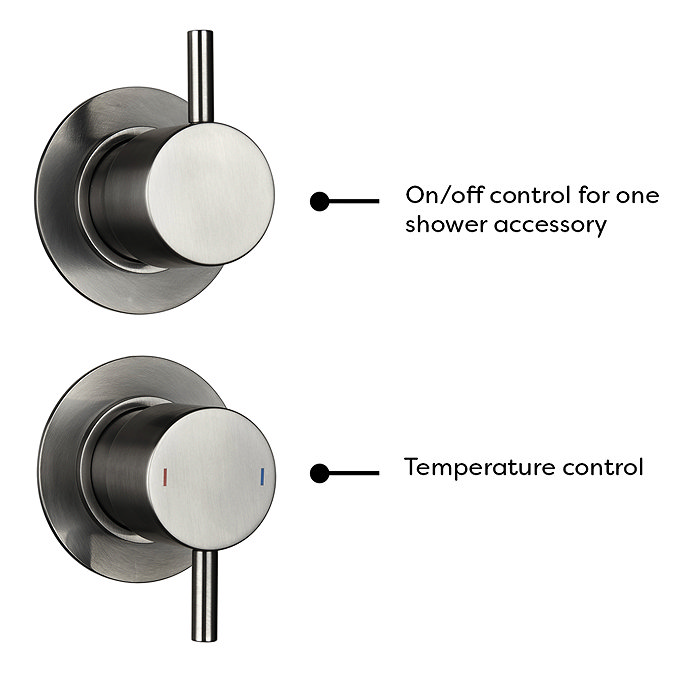

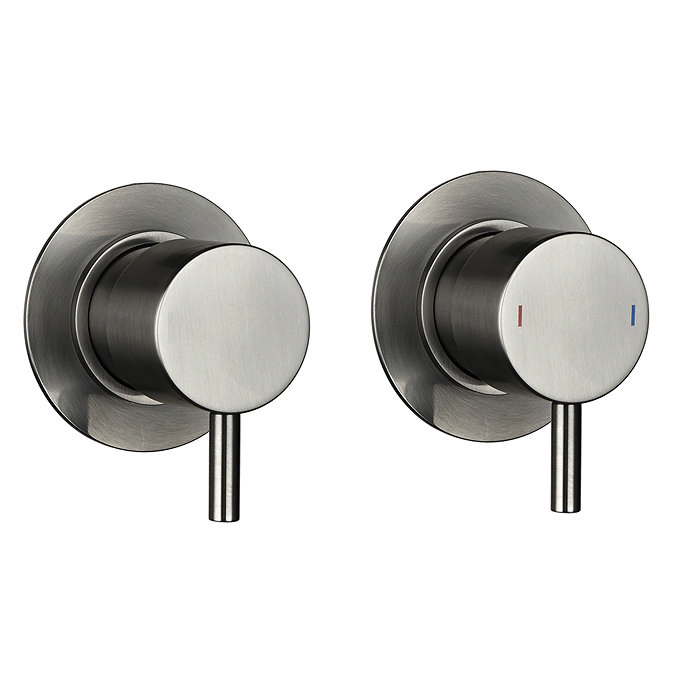

The Arezzo concealed shower valve consists of two individual controls, for temperature and flow. The brass valve bodies come with contemporary round backplates and handles. This concealed valve has been designed to be paired with one outlet, i.e. a main shower head.

Shower Valve Details:

• Style: Modern
• Range: Arezzo
• Valve Handles: Round
• Colour/Finish: Brushed Gunmetal Grey
• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 1 Outlet
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature 55-85°C
• Cold Water Supply Temperature 4-29°C
• Suitable for modern pressurised plumbing systems.
• Pack includes individual thermostatic control with a individual stop tap for flow control.
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Perfect for creating a clean minimalist look.

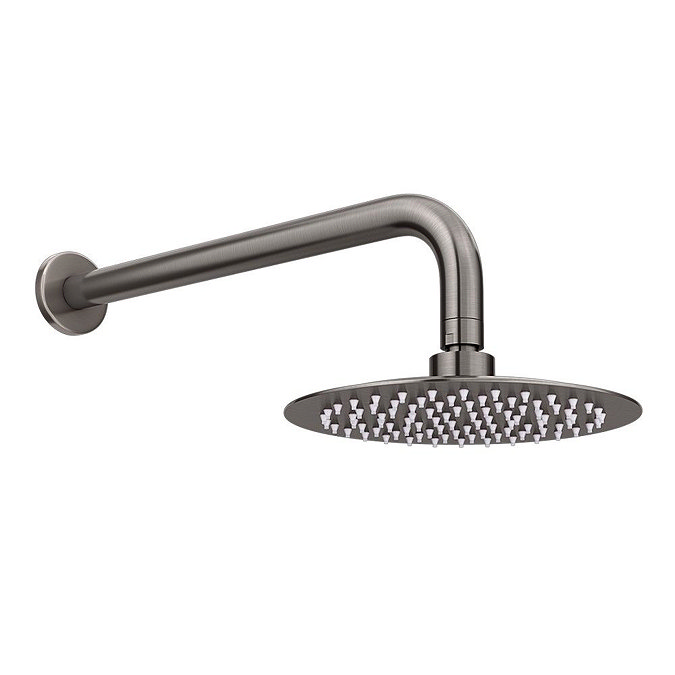

Shower Head + Arm Details:

• Shower Head Dimensions: 200mm Diameter
• Shower Arm Length: Approximately 355mm
• Shower Arm Diameter: 24mm
• Style: Modern
• Colour/Finish: Brushed Gunmetal Grey
• Material: Stainless Steel
• Rainfall Effect
• Ultra-Thin Shower Head
• Inlet Connections: 1/2" BSP
• Pressure requirement 0.5 bar minimum
• Supplied with swivel joint and wall mounted round arm.
• Rub clean nozzles makes this item easy to clean and maintain
• Fixings not included
• Installation of the arm requires rear access behind the wall.

Note:

All images provided are for illustrative purposes only, and the measurements are approximate.

Guarantee:

5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)
Shower head and arm are guaranteed for 2 years.

The package includes:

(1) Brushed Gunmetal Grey Concealed Individual Stop Tap + Thermostatic Control Shower Valve For 1 Outlet
(1) Brushed Gunmetal Grey Ultra Thin Round Head - 200mm
(1) Brushed Gunmetal Grey Round Wall Mounted Shower Arm

Gravity Fed Systems: If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
