Arezzo Brushed Brass Square Shower System (Twin Valve with Diverter, Wall Mounted Head + Handset)

Arezzo Brushed Brass Square Shower System (Twin Valve with Diverter, 300 x 300mm Wall Mounted Head + Handset)

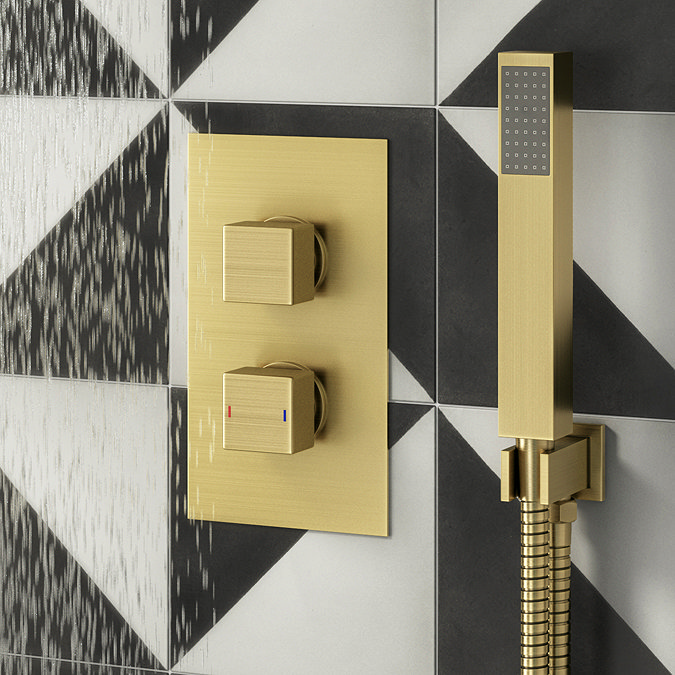

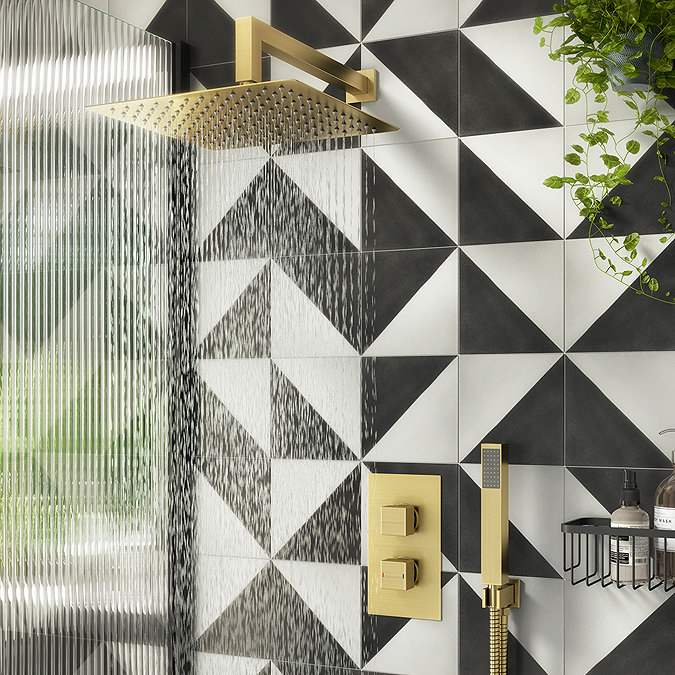

The Arezzo Brushed Brass Square Shower System includes a Twin Valve with Diverter, a 300 x 300mm Wall Mounted Head, and a Handset.

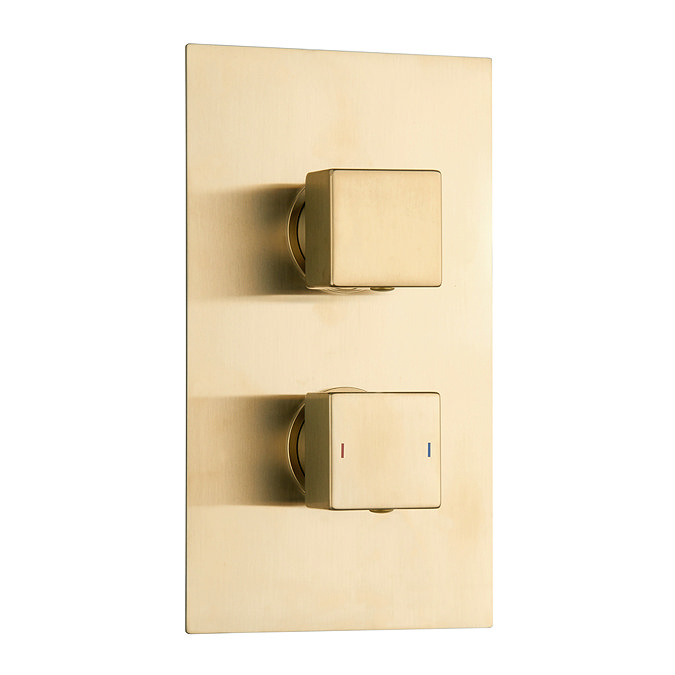

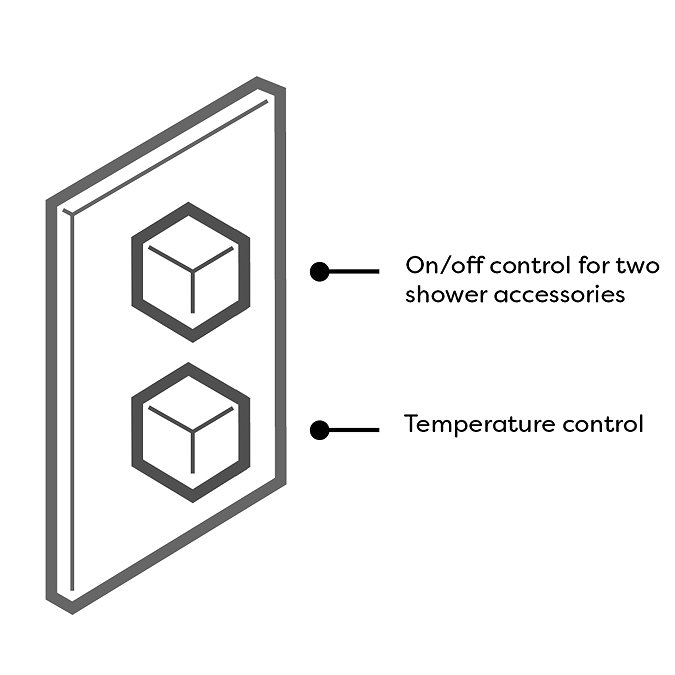

The Arezzo square concealed thermostatic shower valve showcases a minimalist design with a luxurious brushed brass finish. It offers thermostatic showering through two user-friendly controls for temperature and flow. The valve features a built-in diverter to switch between two different shower accessories, namely the fixed head and the handset.

The system comes with a sleek 300 x 300mm square fixed shower head with a swivel joint, a square outlet elbow with a parking bracket, flex, and a matching rectangular handset. The solid brass valve body is paired with an easy-to-clean contemporary square backplate.

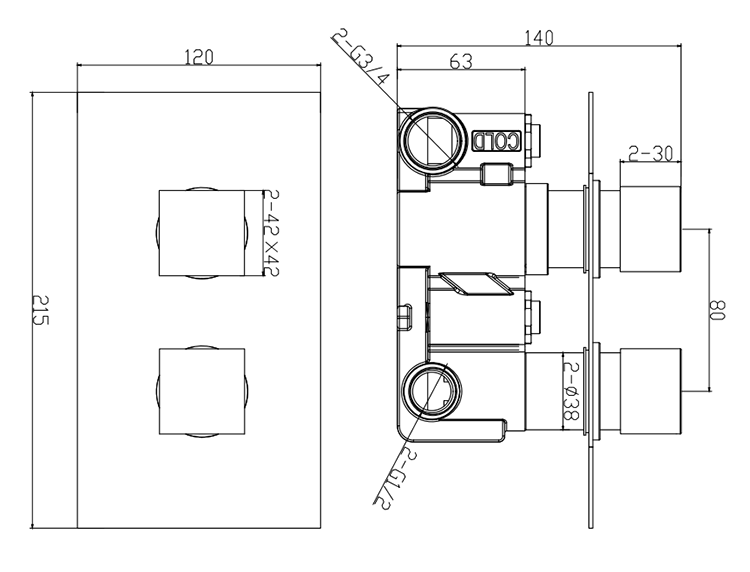

Shower Valve Details:

• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Square
• Brass Internals
• Thermostatically controlled
• Concealed
• Water Pressure: 0.5 bar to 5 bar
• Rectangular Faceplate
• For use with 2 Outlets
• Built-In Diverter

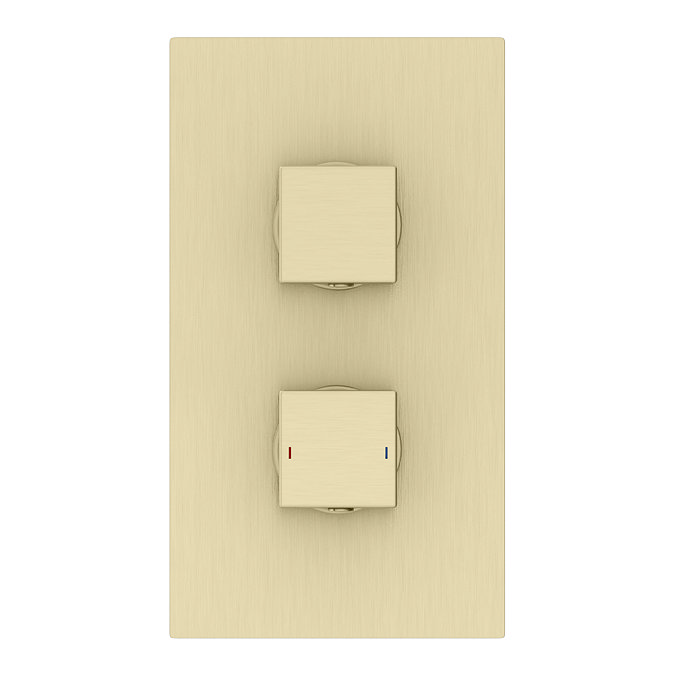

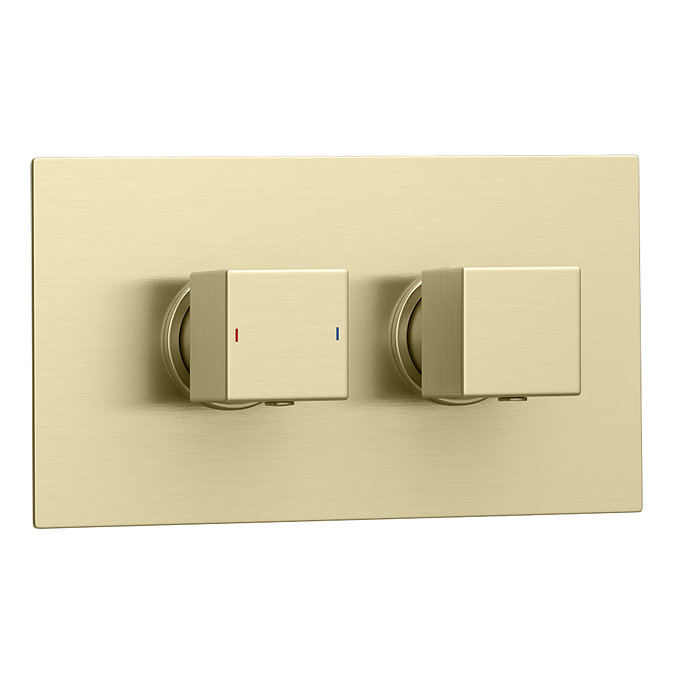

• Can be fitted vertically or horizontally
• Shower head and handset sold separately
• Suitable for modern pressurised plumbing systems
• Hot water temperature: 55 to 85 Degrees
• For gravity-fed systems, a pump will be required. We recommend a universal or negative head pump.

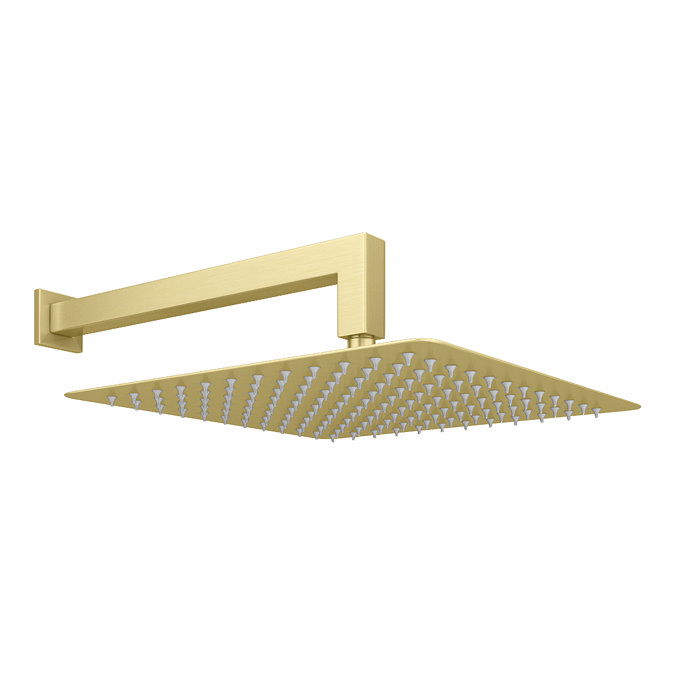

Shower Head with Arm Details:

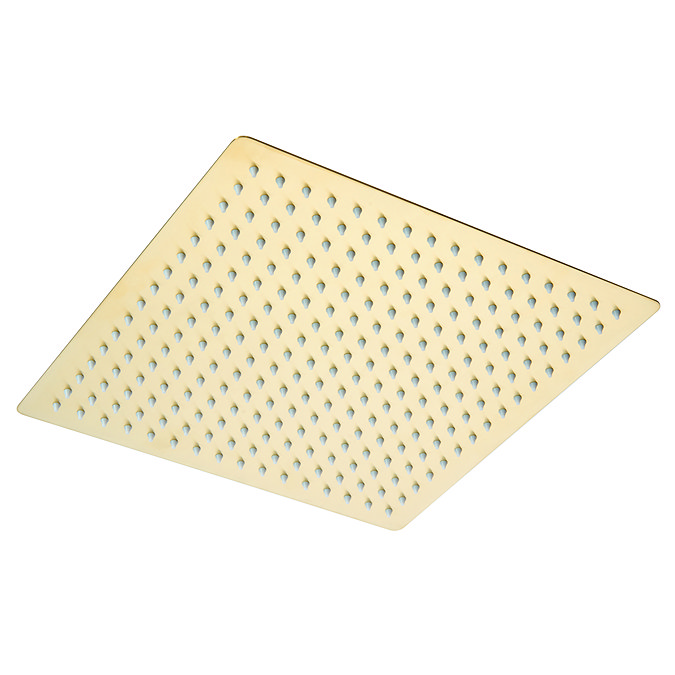

• Shower Head Size: 300 x 300mm
• Shower Arm Length: 388mm
• Style: Modern
• Shape: Square
• Colour/Finish: Brushed Brass
• Material: Brass
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend
• Wall Mounted
• Pressure requirements: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Supplied with a swivel joint. Rub clean nozzles make this item easy to clean and maintain.

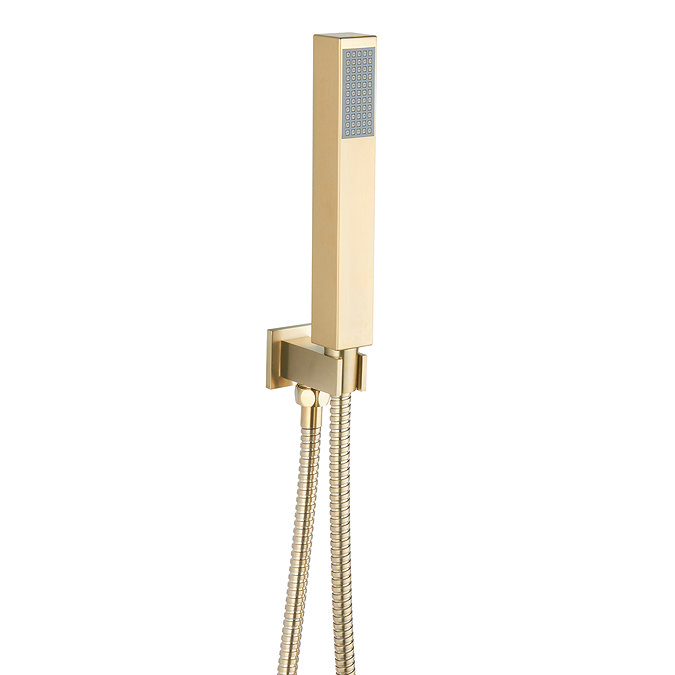

Shower Handset Details:

• Style: Modern
• Colour/Finish: Brushed Brass
• Shape: Square
• Manufactured to the highest standards
• Rectangular Handset with a built-in outlet
• Suitable for all plumbing systems
• Eye-catching, brushed brass finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m Shower Hose
• Quality finish
• Handset holder
• Connections: 15 mm (1/2" BSP)

Please Note:

Installation requires rear access behind the wall.

All measurements are approximate. Product images are for illustrative purposes only and may differ from the actual product.

The product comes with a 3-year guarantee (1-year on serviceable parts, for example, internal components such as check valves and cartridges).

The package comprises:

(1) Square Modern Twin Concealed Shower Valve with Diverter
(1) Square Wall Mounted 90 Degree Bend Shower Arm - 388mm
(1) Ultra-Thin Square Shower Head (300 x 300mm)
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems: If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar, therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
