Arezzo Brushed Brass Square Shower System (Valve with Fixed Shower Head + 4 Body Jets)

Arezzo Brushed Brass Square Shower System (Valve with Fixed Shower Head + 4 Body Jets)

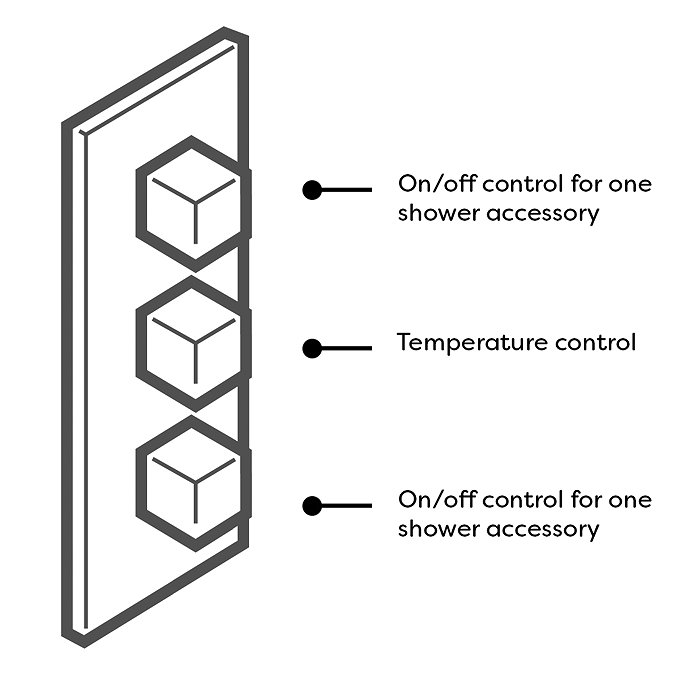

The on-trend Arezzo brushed brass square range brings substantial elegance to the modern bathroom. Package includes a concealed triple thermostatic shower valve, fixed shower head and 4 square body jets. Offers thermostatic showering via three easy-to-operate controls. Separate controls for temperature and flow. Operates two outlets separately or simultaneously. The solid brass construction makes the valve durable and quick to clean thanks to the smooth finish. The ideal solution for multi-option showering.

Shower Valve Details:

• Dimensions: Height 265mm, Width 120mm, Depth 140mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Range: Arezzo
• Valve Handles: Square
• Material: Brass Internals
• Operates two points separately or simultaneously
• Thermostatically controlled valve handles water pressure from 0.5 bar to 5 bar
• Comes with a rectangular backplate and is suitable for use with two outlets
• Can be installed vertically or horizontally
• Hot water temperature ranges from 55 to 85 degrees
• For gravity-fed systems, a pump is required (we recommend a universal or negative head pump)

Shower Head with Arm Details:

• Shower Head Size: 300 x 300mm
• Shower Arm Length: 388mm
• Style: Modern
• Shape: Square
• Colour/Finish: Brushed Brass
• Material: Brass
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend, Wall Mounted
• Pressure requirements: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Supplied with swivel joint and rub clean nozzles for easy maintenance

Body Jet Details:

• Overall Size: D88 x W50 x H50mm (Approx.)
• Product Type: Slim Body Jet
• Shape: Square
• Brass 1/2 inch BSP thread: 18mm long
• Easy clean rubber nozzles
• Colour/Finishes: Brushed Brass
• Material: Brass
• Supplied with swivel joint

Please note that installation requires rear access behind the wall. All images provided are for illustrative purposes only, and the measurements are approximate.

The package includes:

Square Triple Concealed Thermostatic Shower Valve with Diverter
Square Wall Mounted 90 Degree Bend Shower Arm - 388mm
Ultra Thin Square Shower Head (300 x 300mm)
Modern Slim Square Body Jets

For those living in older properties with a low-pressure gravity-fed system, this shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.

The product comes with a 3-year guarantee (1 year on serviceable parts, such as internal components like check valves and cartridges).
