Arezzo Brushed Brass Concealed Individual Diverter + Thermostatic Control Valve with Handset + Ceiling Mounted Shower Head

Arezzo Brushed Brass Concealed Individual Diverter, Thermostatic Control Valve with Handset and Ceiling Mounted Shower Head

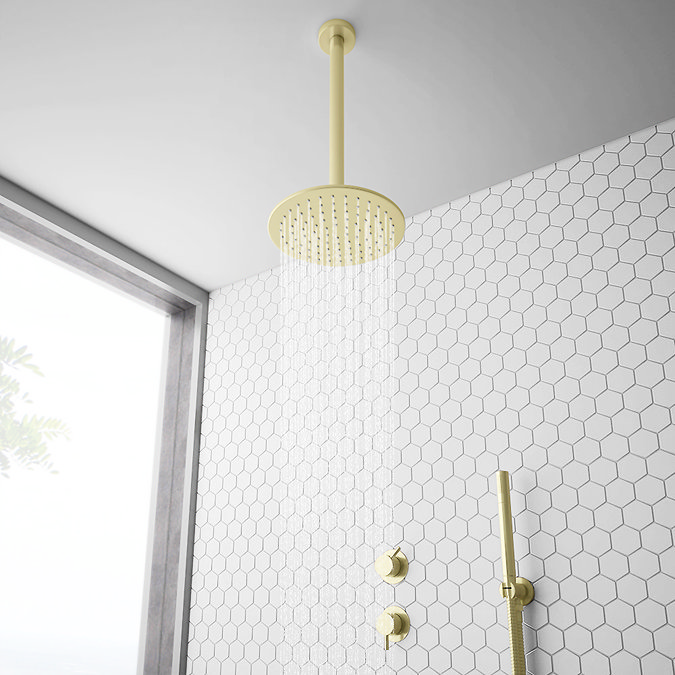

The Arezzo Brushed Brass Concealed Individual Diverter and Thermostatic Control Shower Valve Pack features a minimalist round design. This concealed shower valve is perfect for installation in a concealed arrangement, and it comes supplied with a ceiling-mounted fixed shower head and a matching round shower handset.

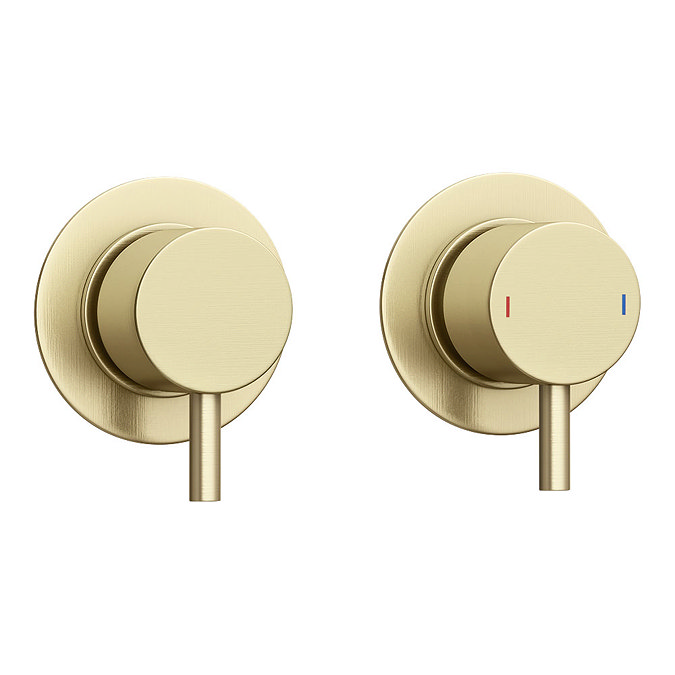

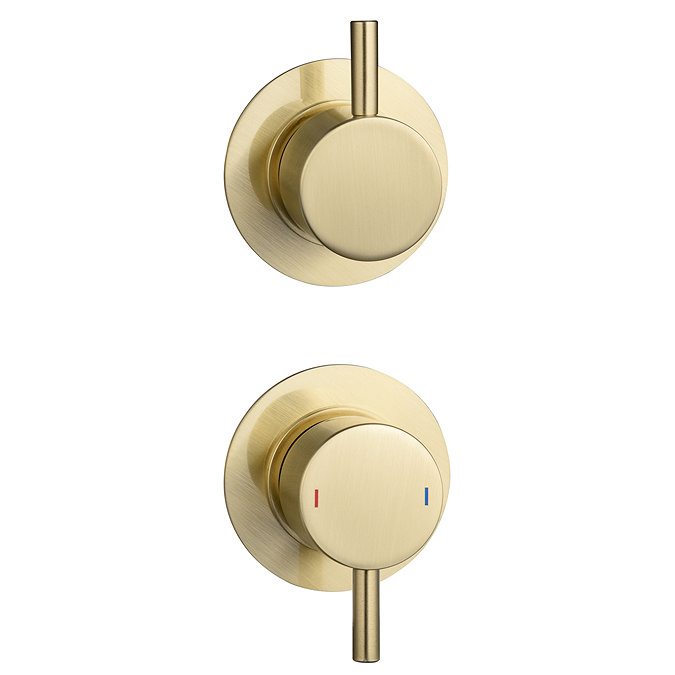

Shower Valve Details:

• Style: Modern
• Range: Arezzo
• Valve Handles: Round
• Colour/Finish: Brushed Brass

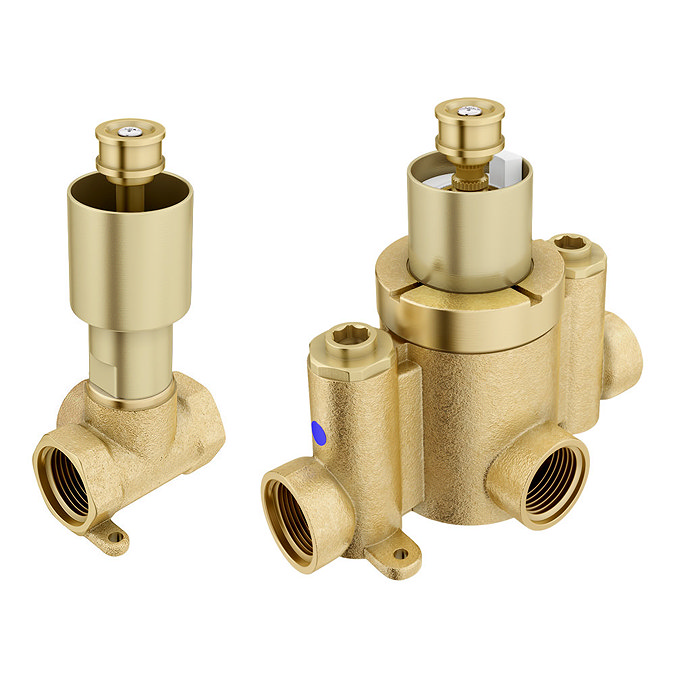

• Material: Brass Internals
• Concealed fitting
• Round backplates
• For use with 2 outlets
• Min operating pressure: 0.5 bar
• Max operating pressure: 5 bar
• Hot Water Supply Temperature: 55-85°C
• Cold Water Supply Temperature: 4-29°C
• Suitable for modern pressurized plumbing systems

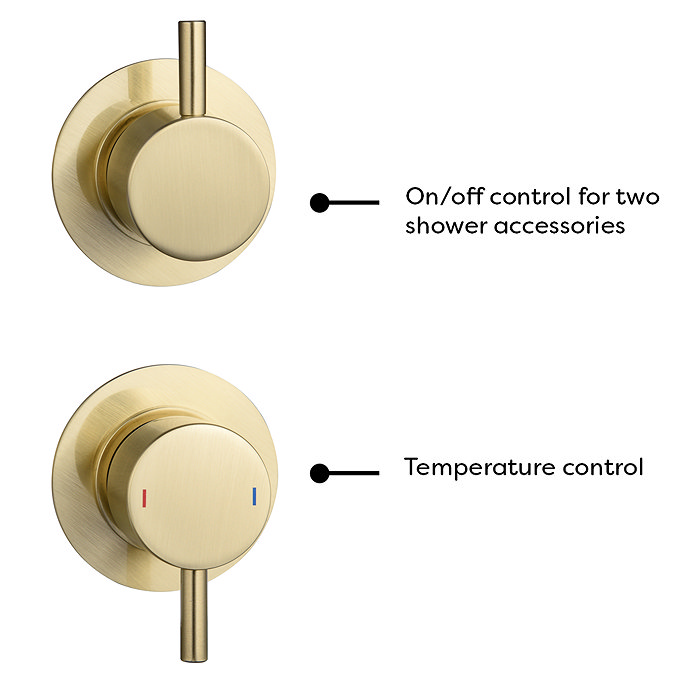

• Pack includes individual thermostatic control with an individual diverter valve for switching water flow between 2 outlets
• Note: Shower valve efficiency may be compromised on a gravity-fed tank system unless a booster pump is installed. We recommend a universal or negative head pump if needed.

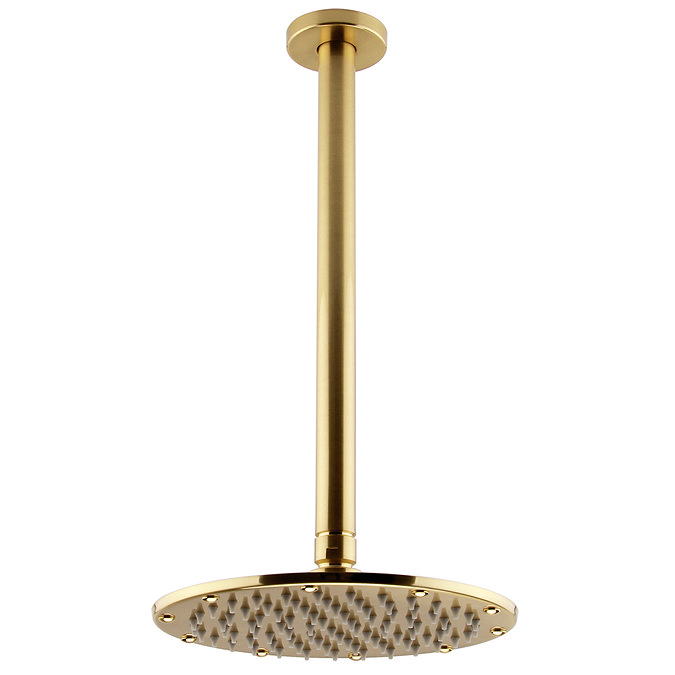

Shower Head with Arm Details:

• Shower Head Dimensions: 195mm Diameter
• Shower Arm Length: 300mm
• Style: Modern
• Colour/Finish: Matt Brushed Brass
• Rainfall Effect
• Thin Shower Head
• Ceiling Mounted
• Eye-catching brushed brass finish
• Inlet Connections: 1/2" BSP
• Pressure requirement: 0.5 bar minimum
• Supplied with swivel joint and wall-mounted round arm
• Easy-to-clean rub-clean nozzles
• Shower arm has a 3-year guarantee

Shower Handset Details:

• Colour/Finish: Brushed Brass
• Shape: Round
• Manufactured to the highest standards
• Round handset with built-in outlet
• Suitable for all plumbing systems
• Manufactured in solid brass
• Eye-catching brushed brass finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m shower hose
• Quality finish
• Pencil handset holder
• Silicone nozzles for easy removal of lime scale deposits
• Connections: 15mm (1/2" BSP)



Note: The shower valve may not function efficiently in a gravity-fed tank system unless a booster pump is installed. We recommend using a universal or negative head pump if needed.

For detailed installation instructions, please refer to the product documentation. All measurements are approximate, and the images are for illustrative purposes only.

Guarantee: 5 years (1 year on serviceable parts, such as internal components like check valves and cartridges)

Package Includes:

(1) Brushed Brass Ultra Thin Round Head
(1) Brushed Brass Round Ceiling Mounted Shower Arm
(1) Brushed Brass Concealed Individual Diverter + Thermostatic Control Shower Valve
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity-Fed Systems: If you live in an older property, it’s likely that you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. If necessary, consider installing a negative or universal pump (sold separately). Positive pumps will not be effective in this case.
