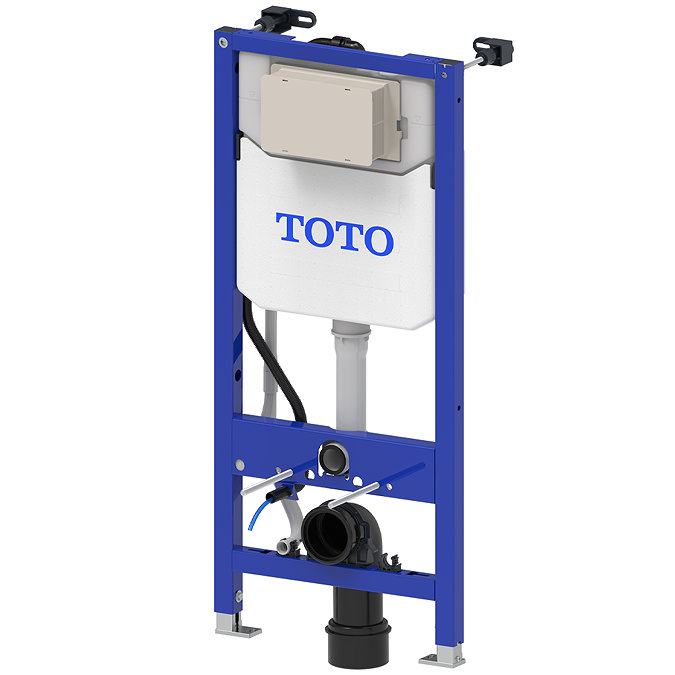

Toto Concealed WC Frame for Washlet Wall Hung Toilets

Toto Concealed WC Frame for Washlet Wall Hung Toilets

Designed specifically for use with Toto Washlet systems, this concealed WC frame provides a secure and reliable installation solution for compatible wall hung toilets. Featuring a robust steel construction with an integrated concealed cistern, the frame helps create a clean, minimalist bathroom design by hiding pipework and flushing components behind the wall.

Prepared for Washlet water supply connections, this frame is ideal for creating a premium smart toilet installation. Its slim profile and adjustable installation depth make it suitable for a wide range of modern bathroom projects.

Key Features

• Integrated Concealed Cistern: Combines the support frame and concealed cistern in one convenient installation solution.
• Concealed Installation: Hides the cistern, pipework, and fixings behind the wall for a clean, modern appearance.
• Durable Steel Construction: Manufactured from robust steel and resin for long-lasting strength and reliability.
• Adjustable Installation Depth: Adjustable from 150–225mm to suit a variety of installation requirements.
• Slimline Design: Compact 120mm frame depth helps maximise available installation space.

Technical Specifications

• Brand: Toto
• Type: WC Frame + Cistern
• Product Code: WH183ET

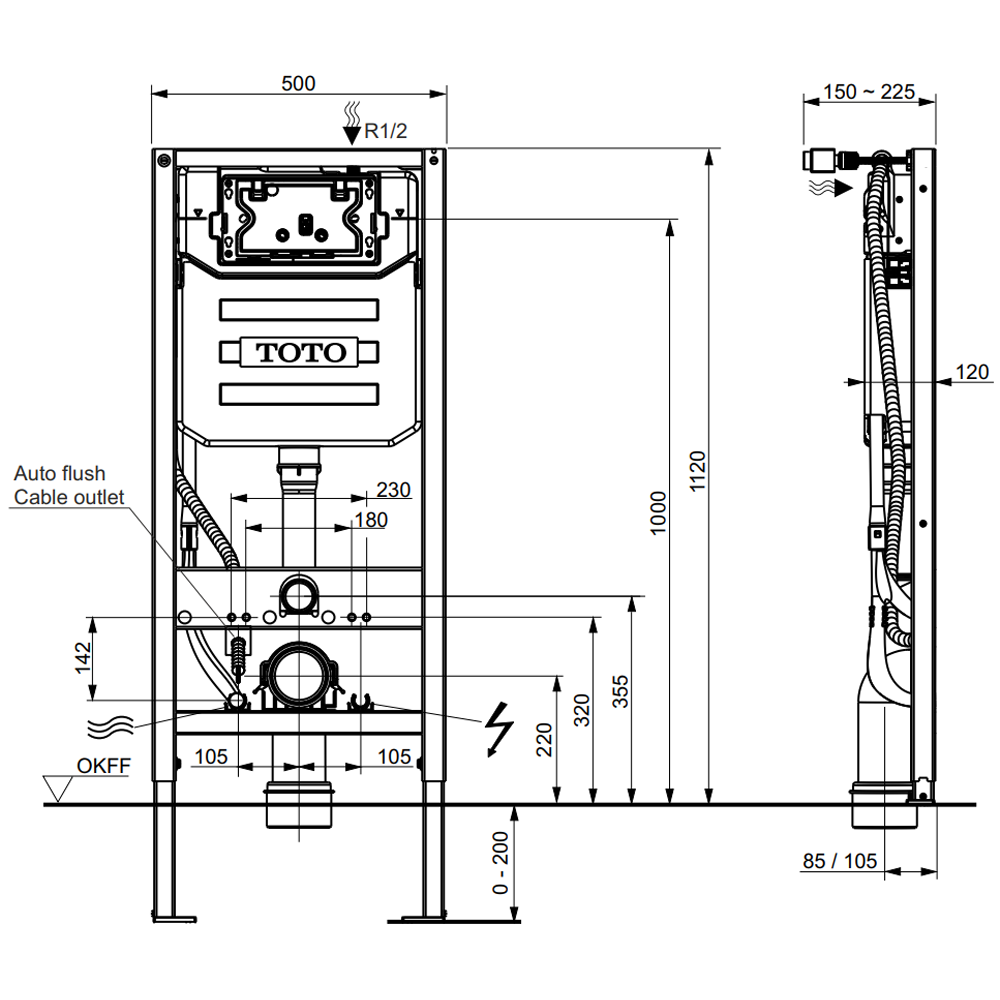

• Dimensions: (H)1120 x (W)500 x (D)120mm
• Installation Depth: 150-225mm
• Frame Colour: Blue
• Material: Steel / Resin
• Water Inlet: R1/2"
• Flush Volume (Factory Preset): 4.5/3L Dual Flush
• Auto Flush Motor: Not Included

2-year guarantee

Images are for illustrative purposes only. All measurements are approximate.
