Toto Concealed WC Frame & Auto Flush Motor for Washlet Wall Hung Toilets

Toto Concealed WC Frame & Auto Flush Motor for Washlet Wall Hung Toilets

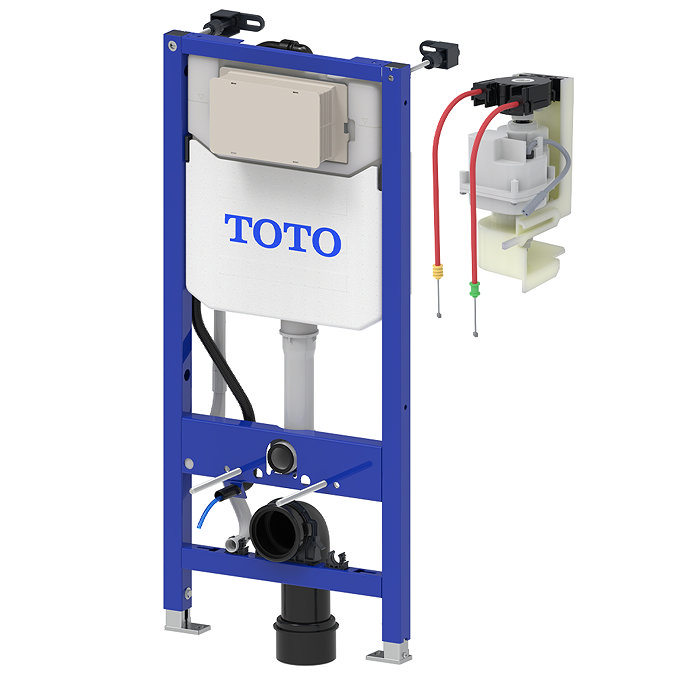

Create a premium smart toilet installation with this Toto concealed WC frame and Auto Flush Motor bundle. Designed specifically for compatible Toto Washlet systems, this package combines a robust concealed frame and cistern with Toto's Auto Flush technology, helping to deliver a cleaner, more convenient bathroom experience.

The concealed frame provides a secure installation solution for wall hung toilets while maintaining a sleek, minimalist appearance. Paired with the Auto Flush Motor, the system can automatically activate the flush after use when connected to a compatible Washlet with Auto Flush functionality, reducing contact with bathroom surfaces and enhancing everyday hygiene.

What's Included?

• Toto Concealed WC Frame & Cistern
• Toto Auto Flush Motor with Connection Cable

Key Features

• Complete Auto Flush Ready Solution: Combines the concealed WC frame and Auto Flush Motor in one convenient package.
• Automatic Flushing Technology: Enables automatic flushing after use when connected to a compatible Washlet.
• Integrated Concealed Cistern: Creates a clean, minimalist bathroom design by concealing the cistern and pipework behind the wall.
• Durable Construction: Manufactured from steel, resin, and high-quality plastic components for long-lasting reliability.
• Water-Saving Dual Flush: Factory preset with a 4.5L full flush and 3L half flush to help reduce water consumption.
• Adjustable Installation Depth: Frame depth can be adjusted between 150mm and 225mm to suit a variety of installation requirements.

Technical Specifications

• Brand: Toto
• Type: WC Frame, Cistern + Auto Flush
• Product Code: WH183ETHM184

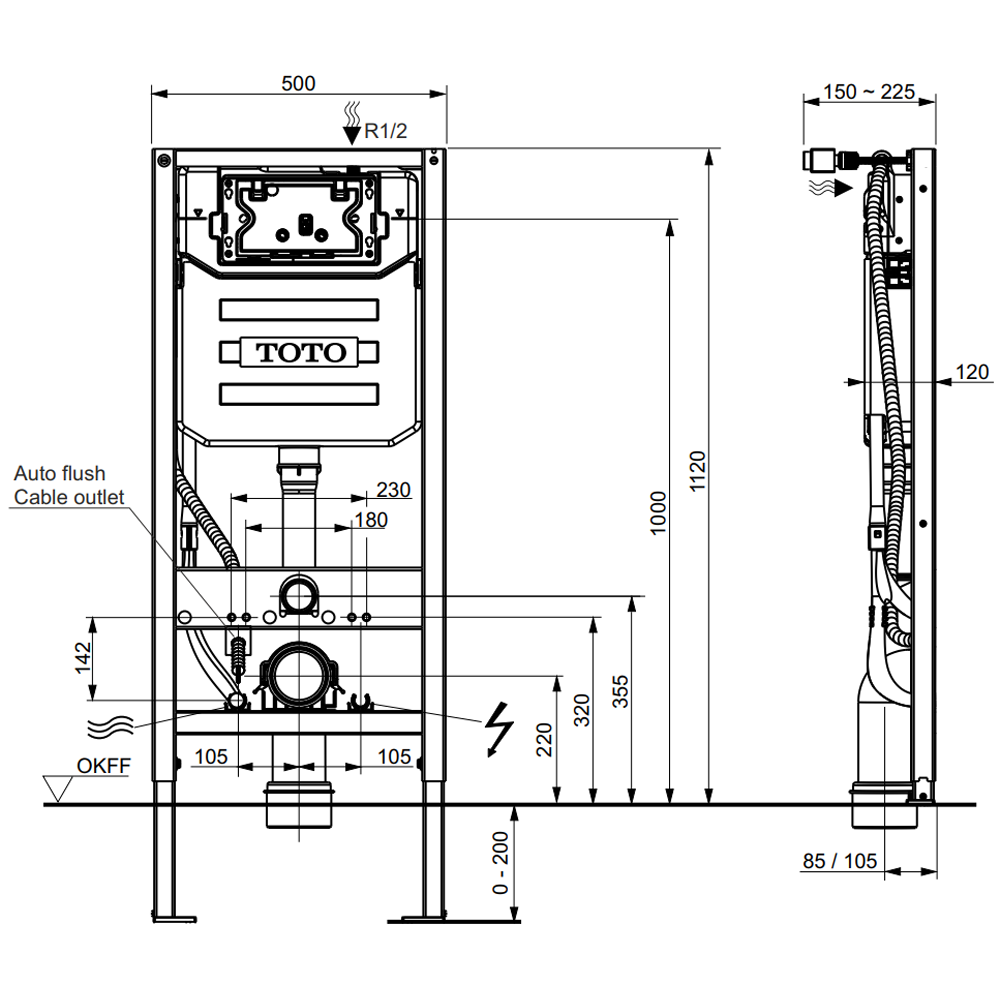

• Frame Dimensions: (H)1120 x (W)500 x (D)120mm
• Frame Installation Depth: 150-225mm
• Frame Colour: Blue
• Frame Material: Steel / Resin
• Water Inlet: R1/2"
• Flush Volume (Factory Preset): 4.5/3L Dual Flush
• Auto Flush: Included

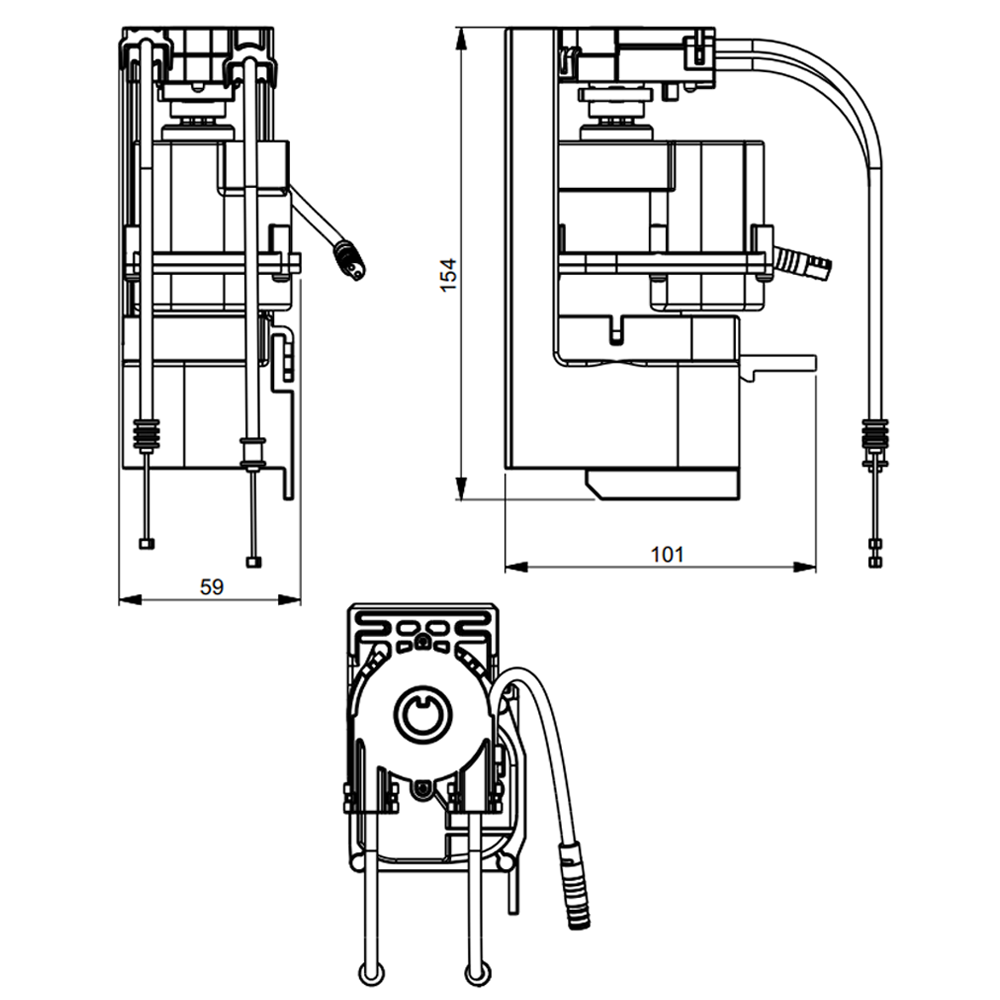

• Auto Flush Dimensions: (H)154 x (W)59 x (D)101mm
• Auto Flush Material: Metal / Plastic

2-year guarantee

Images are for illustrative purposes only. All measurements are approximate.
