Orchard Dulwich Thermostatic Concealed Shower Valve

Orchard Dulwich Thermostatic Concealed Shower Valve

Add a classic focal point to your traditional bathroom or en suite with this concealed shower valve from the Orchard Dulwich collection. Its polished chrome circular backplate, traditional lever and crosshead temperature control create an elegant Victorian-inspired appearance.

Manufactured from solid brass, the valve provides thermostatic control for one shower outlet, such as a fixed shower head or slider rail kit. An integrated anti-scald device helps protect against sudden temperature increases, while the concealed installation keeps working components hidden behind the wall for a neat finish.

Key Features

• Traditional Concealed Design: Classic styling complements Victorian and period-inspired bathrooms.
• Single-Outlet Control: Designed to operate one compatible shower outlet.
• Thermostatic Temperature Control: Helps maintain a consistent and comfortable water temperature.
• Anti-Scald Device: Provides added protection against sudden increases in water temperature.
• TMV2 Approved: Meets recognised thermostatic performance requirements for domestic installations.
• Separate Flow and Temperature Controls: Traditional lever controls the water flow, while the crosshead handle adjusts temperature.
• Solid Brass Construction: Durable material provides dependable long-term performance.
• Polished Chrome Finish: Hand polished surface creates a bright and elegant appearance.
• Wide System Compatibility: Suitable for pumped gravity fed, unvented high pressure and fully modulated combi boiler systems.

Specifications

• Colour: Chrome
• Material: Brass

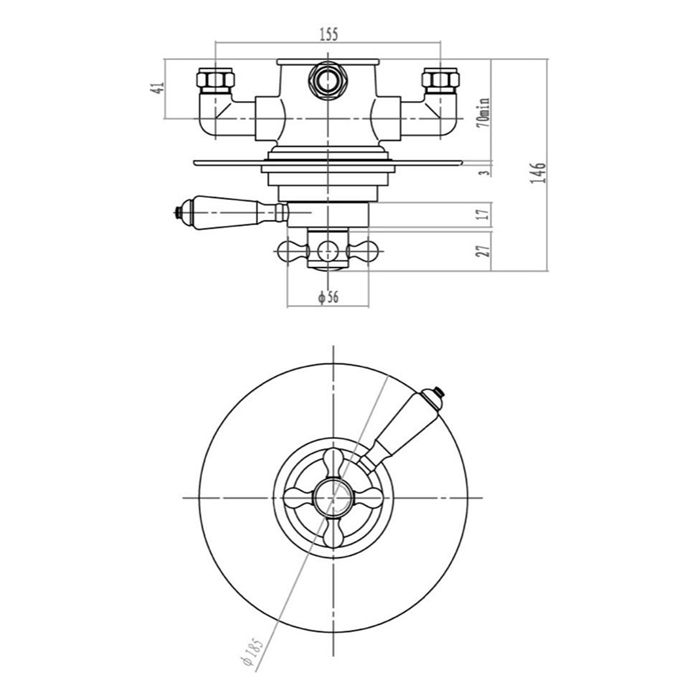

• Height: 185mm
• Width: 185mm
• Depth: 140mm
• Weight: 7.00kg
• Shower Valve Type: Concealed
• Valve Only
• TMV2 Approved
• Number of Outlets: 1
• Minimum Water Pressure: 0.5 bar
• Maximum Water Pressure: 3 bar

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Please note that the images provided are for illustrative purposes only, and all measurements are approximate.

Gravity Fed Systems: If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
