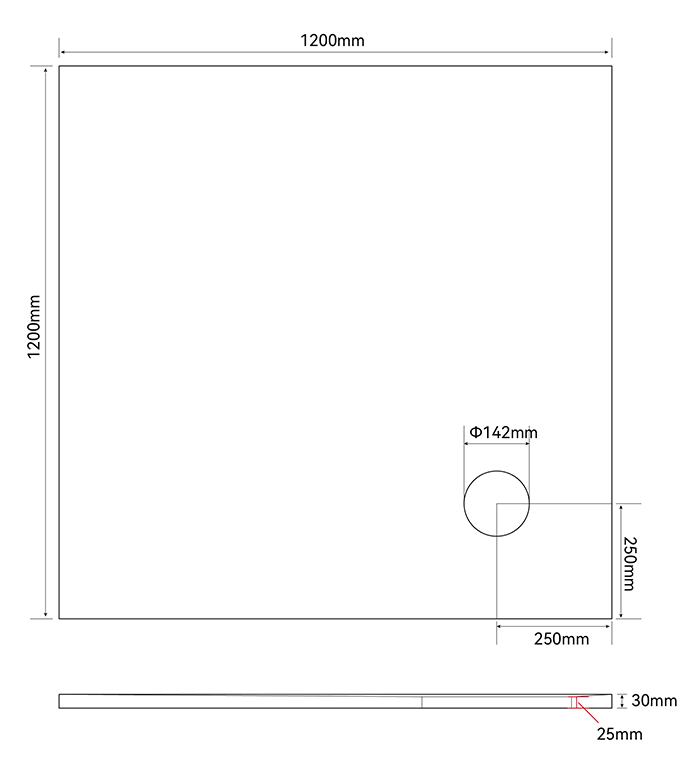

Imperia Wet Room Square Tray Former Kit (Corner Waste in Brushed Brass) 1200 x 1200 x 30mm

Imperia Wet Room Walk In Square Tray Former Kit (Corner Waste in Brushed Brass)

The Imperia Wetroom Square Shower Tray Former (Corner Waste in Brushed Brass). This package, ideal for creating a sleek showering area in your wet room, includes a tray former, shower waste, and installation kit.

The tray former, suitable for a typical UK timber floor, ensures effective discharge of waste water by providing the correct gradients falling towards the shower waste. You can finish the tray with a tile of your choice.

The installation kit features an easy-to-install screw lock high flow shower waste designed to enable water to flow from the shower tray at a rate of 40 litres per minute. Features a stylish brushed brass finish square shower grate.

For installations where the shower waste must be installed above the floor, a Wetroom Shower Substrate must be used in conjunction and is sold separately.

Most installations will require a 2” x 1.5" Waste Pipe Reducer Code: TSG1-REDUCER (sold separately).

Tray Former Details:

• Shape: Square
• Tray Material: XPS foam core, reinforced with fiberglass and coated with cement mortar.
• Corner waste position
• Can be used on timber floors
• Waterproof coated
• Ready for tiling
• Lightweight and Insulated
• Can be tiled with any size tiles
• Suitable for level access installation
• Factory sealed drain
• Can be trimmed down (max. 100mm)
• Suitable for domestic and commercial use
• Easy to install
• This shower tray former is designed to be tiled over. It is not suitable for use with vinyl flooring.

Square Shower Waste + Wetroom Installation Kit Details:

• Required for use with all tray formers and substrates
• Complete installation kit
• Square Drain Cover Plate: 110mm
• Brushed Brass slotted grid square cover plate
• Screw lock waste system
• Easy to install

This product is accompanied by a 15-year guarantee, with a 2-year guarantee specifically for the shower waste. Please be aware that all images are solely for illustrative purposes and all measurements provided are approximate.

The kit comprises of:

Wetroom Square Shower Tray Former (Corner Waste)
Square Tray Waste Kit
110mm Stainless Steel Square Grid Cover - Brushed Brass
5kg Fixing Adhesive
5m Waterproofing Tape
Two Internal Corners
250ml Wood Floor Primer
500ml Tanking Membrane
