Imperia 600 Linear Wet Room Square Tray Former Kit (End Waste in Brushed Brass) 1200 x 1200 x 30mm

Imperia 600 Linear Wet Room Walk In Square Tray Former Kit (End Waste in Brushed Brass)

The Imperia 600 Linear Wetroom Square Shower Tray Former (End Waste in Brushed Brass). This package, ideal for creating a sleek showering area in your wet room, includes a tray former, shower waste, and installation kit.

The tray former, suitable for a typical UK timber floor, ensures effective discharge of waste water by providing the correct gradients falling towards the shower waste. You can finish the tray with a tile of your choice - either standard tiles cut to fit the fall of the drain, or decorative mosaic tiles (not included).

The installation kit features an easy-to-install waste, specially designed to enable water to flow from the shower tray at a rate of 35-40 litres per minute. It includes a stylish stainless steel brushed brass slotted grid drain cover plate.

For installations where the shower waste must be installed above the floor, a Wetroom Shower Substrate must be used in conjunction and is sold separately.

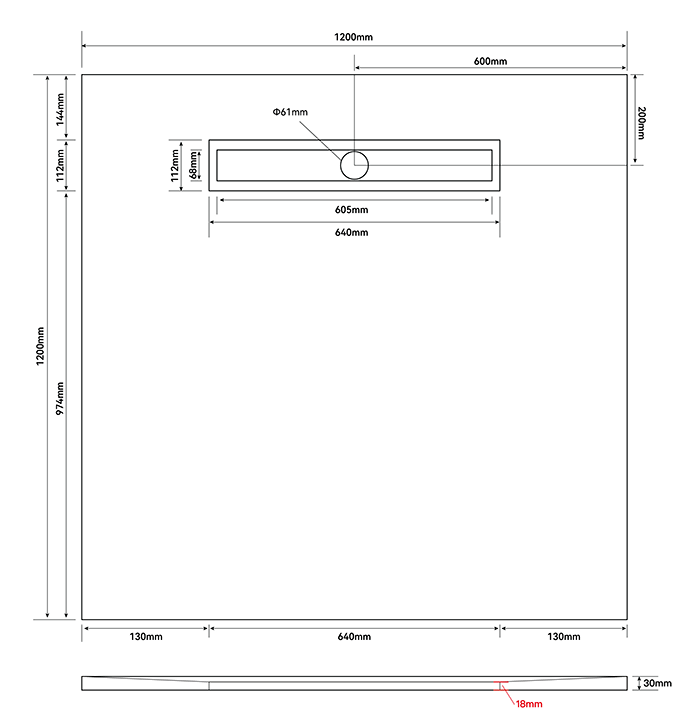

Tray Former Details:

• Shape: Square
• Tray Material: XPS foam core, reinforced with fiberglass and coated with cement mortar.
• End waste position
• Linear 600mm end drain
• Can be used on timber floors
• Waterproof coated
• Ready for tiling
• Lightweight and Insulated
• Can be tiled with any size tiles
• Suitable for level access installation
• Can be trimmed down (max. 100mm)
• Suitable for domestic and commercial use
• Easy to install
• End waste drain gully attached
• This shower tray former is designed to be tiled over. It is not suitable for use with vinyl flooring.

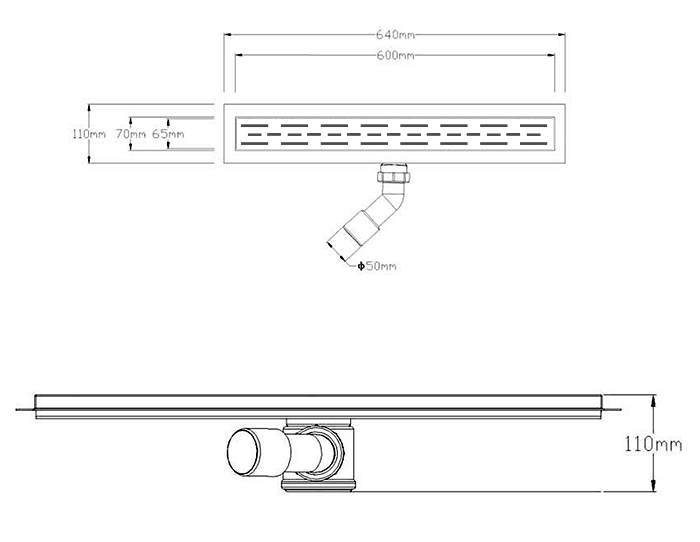

Linear Shower Waste + Wetroom Installation Kit Details:

• Required for use with all tray formers and substrates
• Complete installation kit
• Linear Drain Cover Plate: 600mm

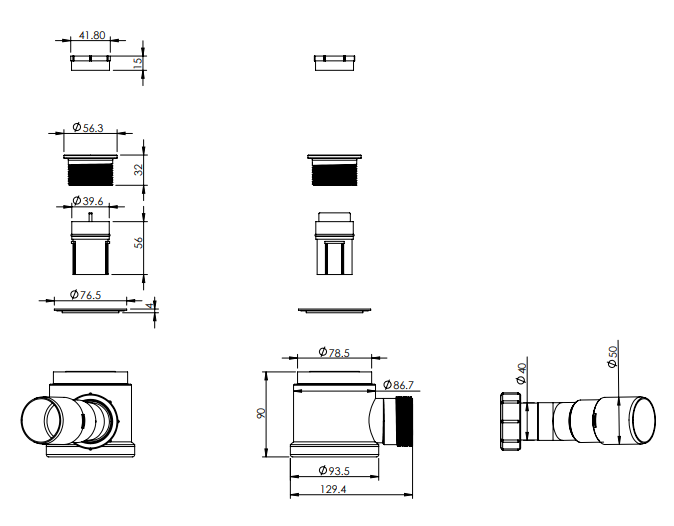

• High flow waste trap: 35-40 l/min
• 90mm height of the lower main drain body
• Brushed brass slotted grid cover plate
• Easy to install

This product is accompanied by a 15-year guarantee, with a 2-year guarantee specifically for the shower waste. Please be aware that all images are solely for illustrative purposes and all measurements provided are approximate.

The kit comprises of:

Linear Wetroom Square Shower Tray Former (600mm End Drain)
600mm Linear Wetroom Shower Waste
Stainless Steel Brushed Brass Slotted Grid Cover Plate
5kg Fixing Adhesive
5m Waterproofing Tape
Two Internal Corners
250ml Wood Floor Primer
500ml Tanking Membrane
