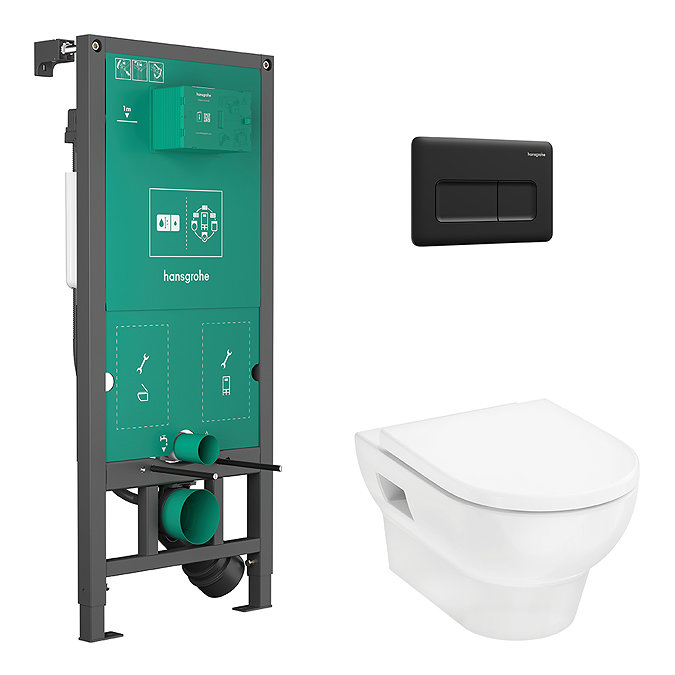

hansgrohe GladeLake S Rimless Wall Hung Toilet + iFrame Universal Concealed Cistern - Matt Black Flush Plate

hansgrohe GladeLake S Rimless Wall Hung Toilet + iFrame Universal Concealed Cistern - Matt Black Flush Plate

The hansgrohe GladeLake S Rimless Wall Hung Toilet + iFrame Universal Concealed Cistern with Matt Black Flush Plate is a complete, premium wall-hung setup designed to keep your bathroom looking clean, modern and easy to maintain. The rimless WC uses AquaChannel Flush water jets for effective rinsing, paired with a SoftClose seat and QuickRelease hinges for simpler cleaning, while the iFrame concealed cistern and frame sit neatly behind the wall for a streamlined finish. Completed with the matt black iFrame Original Q dual flush plate, it delivers reliable, water-saving performance with a crisp, contemporary look.

Product Details

• Toilet dimensions: (W)365 x (H)400 x (D)540mm
• Frame & cistern dimensions: (W)500 x (H)1150 x (D)170mm
• Flush plate dimensions: (W)230 x (H)150 x (D)9mm
• Designed for wall-hung toilets
• Finish/Colour: Matt Black flush plate, white WC
• Frame material steel, cistern plastic (with PP drainage pipe)
• Rimless WC for easier cleaning
• AquaChannel Flush water-jet rinse
• SoftClose seat
• QuickRelease seat for easier cleaning access
• Dual flush operation
• Cistern flush volume (factory setting) 6L / 3L
• Full flush adjustable 6L–4.5L, half flush 3L
• Cistern insulated against condensation
• Water inlet from rear, side, or top centre (R 1/2 connection)
• WC fastening centres 180mm or 230mm
• Drain pipe outer diameter 90mm, flush pipe outer diameter 45mm

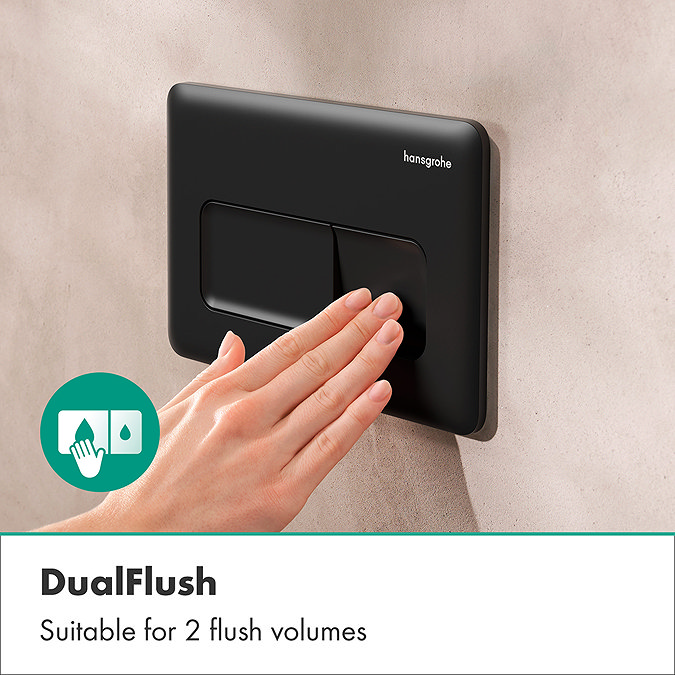

• Flush plate operation mechanical, front actuation with two buttons
• Standards/Compliance EN 14055 Class II (cistern), EN 997 (WC)

20-year guarantee on WC, 5-year on seat and cover, frame/cistern and flush plate

All measurements are approximate and images are for illustrative purposes only

Comprises

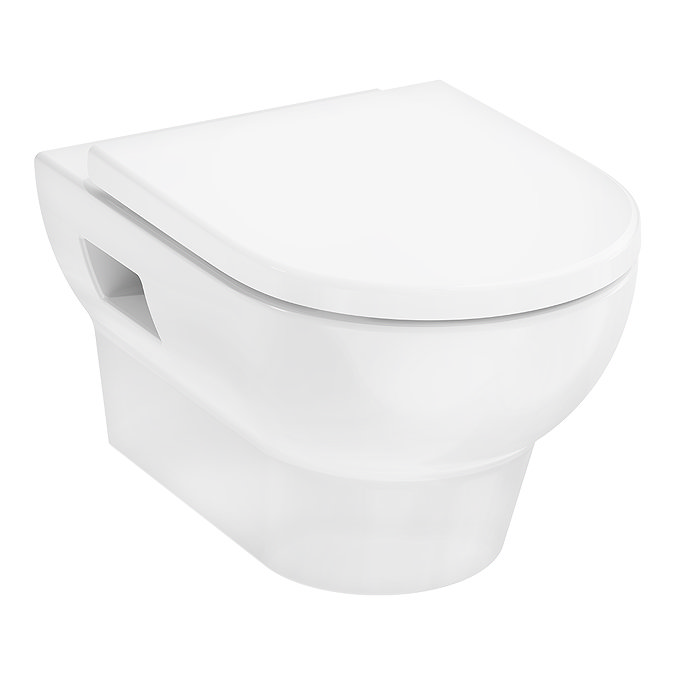

(1) hansgrohe GladeLake S Rimless Wall Hung Toilet with AquaChannel Flush

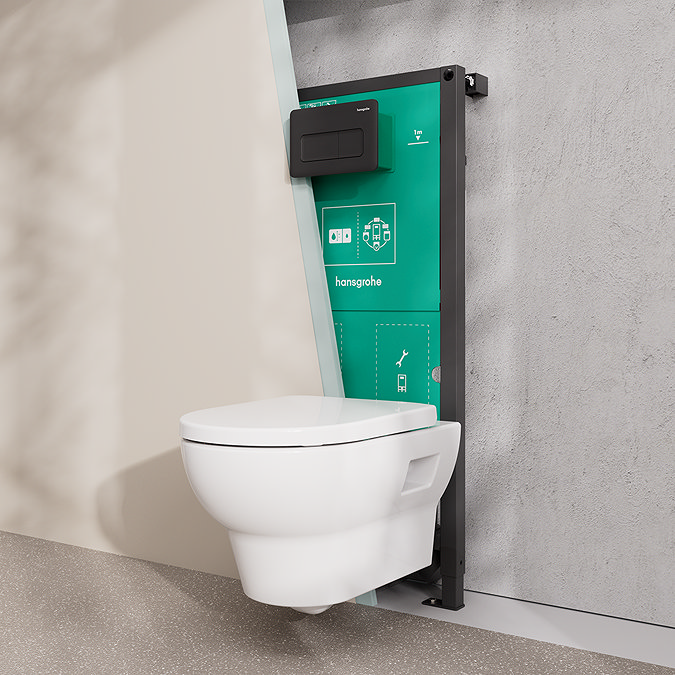

(1) hansgrohe iFrame Universal Concealed Cistern 1120 for Wall Hung WC
(1) hansgrohe iFrame Original Q Flush Plate
