Grundfos STR2-1.5 C Twin Impeller Regenerative Shower Booster Pump 1.5 Bar

Part No.: 98950216
5 out of 5
5 out of 5
5 out of 5
5 out of 5
5 out of 5
Read reviews  |   Write a review
2 Reviews  |  Write a Review
£109.14
In Stock
Item Added To Basket
Added Product
Free Delivery Orders over £'499*'
Spend £ more to qualify for Free Standard Delivery*
Essential Items

Estimated Delivery Cost

Standard Delivery (2-10 Working Days) - Free
Next Day Delivery (1 Working Day) - £9.95
Orders over £499 - FREE STANDARD DELIVERY

International Delivery Available

For delivery on

Order in next
day(s)  |  hrs  |  mins

Description
Grundfos STR2-1.5 C Twin Impeller Regenerative Shower Booster Pump 1.5 Bar

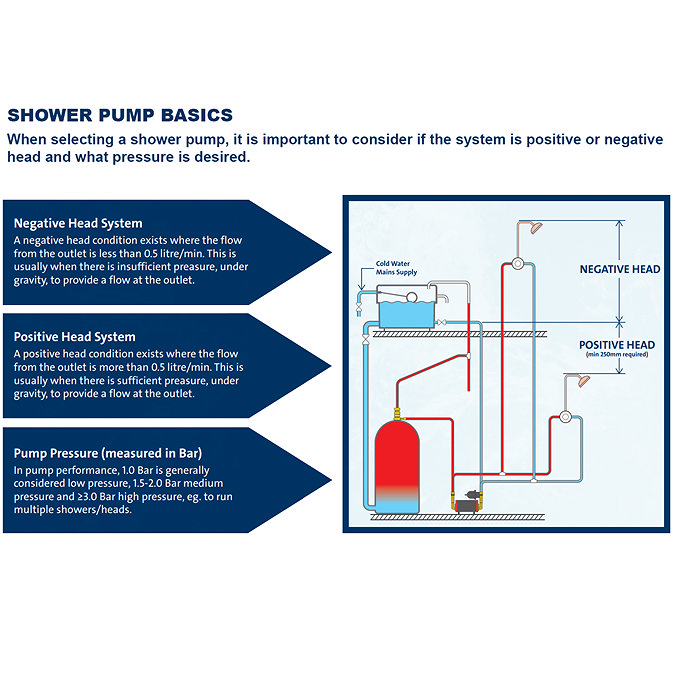

The Grundfos STR2-1.5 C is a positive head shower booster pump used to increase water pressure to a gravity fed hot water system. It's ideal for boosting water to a single shower or simple bathroom suite where the outlets are below the cold water storage tank.

Product Details

  • Brand: Grundfos
  • Product Code: 98950216
  • Model: STR2-1.5 C
  • Dimensions: (L)235 x (W)150 x (H)165mm
  • Electrical Rating: Continuous
  • Cable Length: 1.5m
  • Voltage (V): 230
  • Power Input (W): 340
  • Fuse: 5A
  • Closed Valve Pressure (bar): 1.5
  • Max. Flow rate (l/min): 27
  • Minimum Pipe Size: 22mm
  • Low noise design - quiet induction motor and minimal turbulence pump head
  • Continuously rated
  • Supplied with 22mm Stainless steel hoses
  • Fitted with long-life seals
  • Twin (STR2) & Single (SSR2) impellers
  • WRAS Approved
  • IPX2 water ingress protection
  • Regenerative impeller designed to overcome air pockets

2 Year Guarantee

Please note: Shower pumps are not suitable to be installed with combination boilers.
Download Instructions
Product Dimensions
Delivery Costs
Please enter the post code of your delivery address.
    Please note:
    • Out-of-stock items will despatch on a similar timescale once in stock.
    • You will be advised of any changes in the expected in-stock date.
    • The delivery timescale of an order is dependent on the size of the largest item in the order, relating to the guide above.We strongly advise that you do not book plumbers until your goods have arrived and have been checked, we are not liable for any plumbers costs, consequential loss or compensation in any way.
    Your Questions & Answers ask a question
    3 Questions | 3 Answers
    Collapse All
    • Q.  Can the pump be powered off when not needed?
      1 Answers
    • Answers
      Answer:

      Hi, The pump is programmed to switch on when there is any water movement so you will struggle to adapt to your preferred operation. Thanks. Technical Team.

      replied on 17 Sep 2021
      0 out of 0 found this question helpful.
    • Q.  I have a CT50 + twin shower pump at the moment which is not working. I would like to replace it with the GrundfosSTR"-1.5C pump due to the configuration of the inlet position being at 90 degrees as is my present pump. Can you advise if this is OK.The new CT50 has both inlet and outlet pointing upwards which will cause me to have to alter the piping. Thank you
      1 Answers
    • Answers
      Answer:

      Hi Brian, Use 22 mm pipework to and from the pump. The expansion pipe from the hot-water cylinder should always rise in order to prevent trapped air. The outlet pipework from the pump to the shower valve should rise, where possible, to prevent trapped air. Pipework from the pump to the shower valve should go up and over, rather than under floor. Do not fit any other outlets in the inlet pipes to the pump. See fig. 12. Use dedicated supplies to hot and cold water. Avoid blanked-off pipes. Avoid restrictions in the flexible hoses. Secure down all pipework to minimise noise and vibration. Thanks. Technical Team

      replied on 10 Jun 2021
      0 out of 0 found this question helpful.
    • Q.  why dose my pump keep coming on for a few seconds when there is no tap open
      1 Answers
    • Answers
      Answer:

      Hello, Thank you for your question. This could be for a number of reason, most commonly caused by a build up in pressure on the hot water fed. I could possibly suggest contacting the manufacture on www.grundfos.com/uk or alternately our customer services team and we will contact them for you. info@victorianplumbing.co.uk Kind Regards.

      replied on 13 Jan 2021
      0 out of 0 found this question helpful.
