Genesis Atlas 35-60mm Tile Pedestal

Genesis Atlas 35-60mm Tile Pedestal

The Genesis Atlas 35-60mm Tile Pedestal is an adjustable height support system designed for outdoor raised floors, offering a height range from 35mm to 60mm. It features a durable polypropylene base with a surface area of 314cm², ensuring proper water drainage and stability. The fixed-head includes removable tabs with a 4mm joint thickness for precise installation, making it ideal for laying large-format outdoor tiles and paving slabs. With a load capacity of up to 1000kg, this pedestal system is suitable for balconies, terraces, roof terraces, and other accessible spaces, providing high mechanical resistance, UV resistance, and easy installation without the need for grout or adhesive.

Product Details

• Brand: Genesis
• Code: GP3560

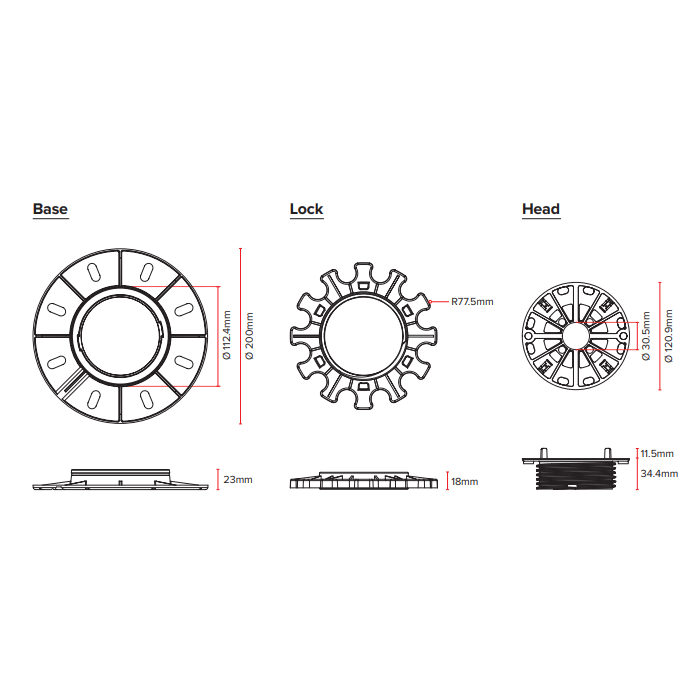

• Height: 35-60mm
• Head Diameter: 120mm
• Base Diameter: 200mm
• Load Capacity: 1000kg
• Material: Polypropylene - Fully Recyclable
• High mechanical resistance
• Easy to install
• Non-conductive to electricity, heat and sound
• Strength of flexibility and impact
• UV Resistance
• Resistance of load

Please note that all measurements are approximate, and images are for illustrative purposes only
