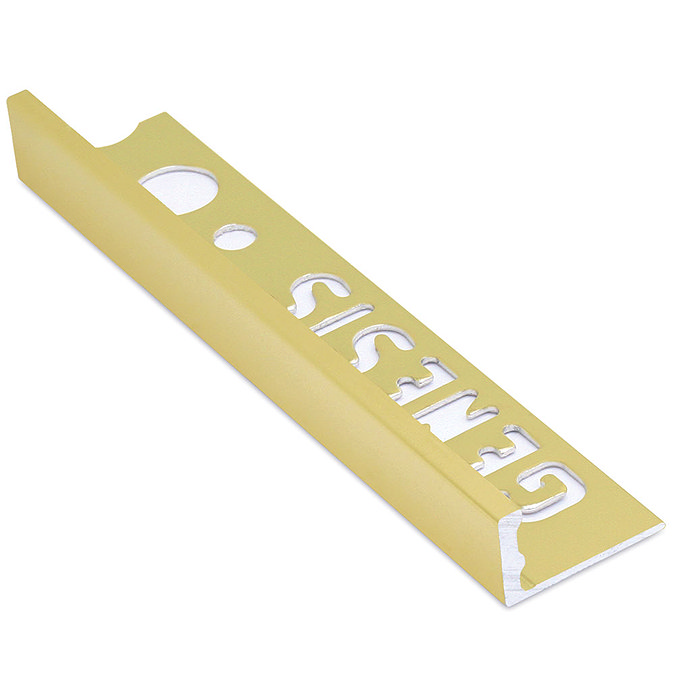

Genesis 12mm Bright Brass Aluminium Straight Edge Tile Trim - 2.5m Length

Genesis 12mm Bright Brass Aluminium Straight Edge Tile Trim - 2.5m Length

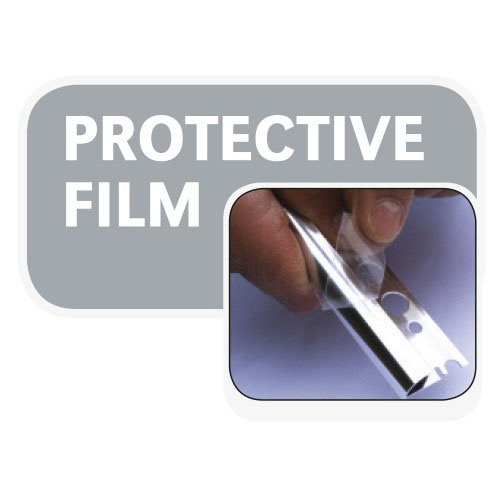

A comprehensive range of profiles designed to protect corners avoiding the unsightly and fragile 45º cut. The defined square edge clearly outlines coverings such as rectified porcelain stoneware. Available in different finishes, these profiles offer a practical and aesthetic solution, ideal for walls and floors. Where appropriate, trims are supplied with transparent protective film offering added protection during transport, storage and installation.

Product Details

• Material: Aluminium
• Finish: Bright Brass
• Length: 2.5m
• Height: 12mm

Images for illustration purposes only

Installation:

1. Select ESA/EFA according to tile thickness.
2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
3. Press the perforated anchoring leg of the ESA into the tile adhesive and align, mechanical fix if required.
4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.
6. Fill the joint completely with grout.
