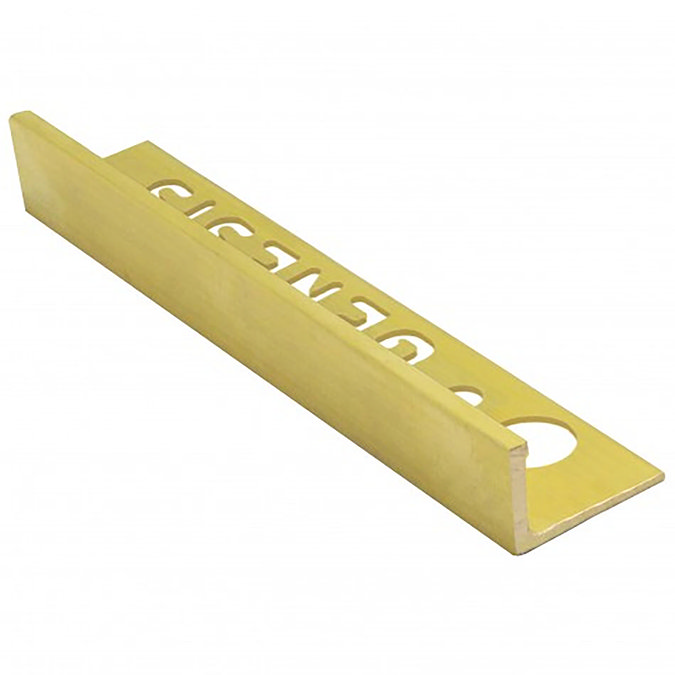

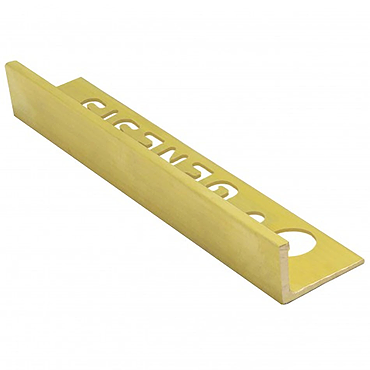

Genesis 10mm Natural Finish Solid Brass Straight Edge Tile Trim

Genesis 10mm Natural Finish Solid Brass Straight Edge Tile Trim - EPB107.87

The Genesis 10mm Natural Finish Solid Brass Straight Edge Tile Trim offers a discreet minimum reveal which is ideal for creating elegant transitions between tile coverings or other rigid covering materials. Suitable for Domestic and commercial areas.

Product Details

• Material: Solid Brass
• Finish: Natural
• Length: 2.7m
• Height: 10mm

Images for illustration purposes only

Installation:

1. Select ESB according to tile thickness.
2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.
3. Press the perforated anchoring leg of the ESB into the tile adhesive and align, mechanical fix if required.
4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.
5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.
6. Fill the joint completely with grout.
