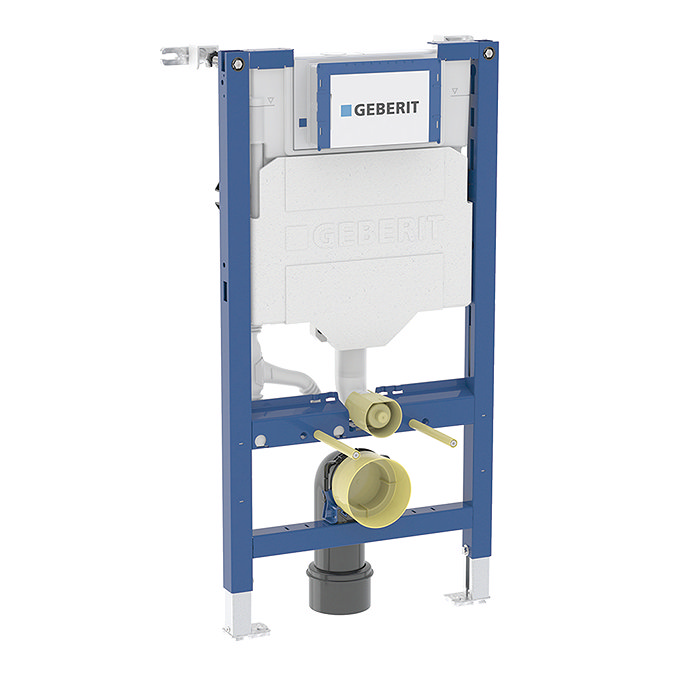

Geberit Duofix Frame 98cm with Sigma Concealed Cistern 12cm

Geberit Duofix Frame 98cm with Sigma Concealed Cistern 12cm - 111.911.00.6

Designed to last, Geberit Duofix frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution. Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability, This product is dual flush with volume adjustment options to help save water.

Features:

• Flow pressure: 0.1–10 bar
• Operating temperature, water max.: 25 °C
• Flush volume, factory setting: 5.8 / 3 l
• Flush volume small, adjustment range: 2–4 l
• Product material: Steel
• 2025 range
• Statically self-supporting frame, protected against corrosion with powder coating
• Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cm
• Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75
• Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components
• Galvanised non-slip leg supports protected against corrosion
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Geberit Sigma concealed cistern 12 cm, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• For front actuation, suitable for single, dual and stop-and-go flushes
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Flush bend fitted
• Cistern rotatable by 180° for access from service room
• Water supply connection on the rear centre
• Protection box for service opening, can be cut to length, protects against moisture and dirt
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection
