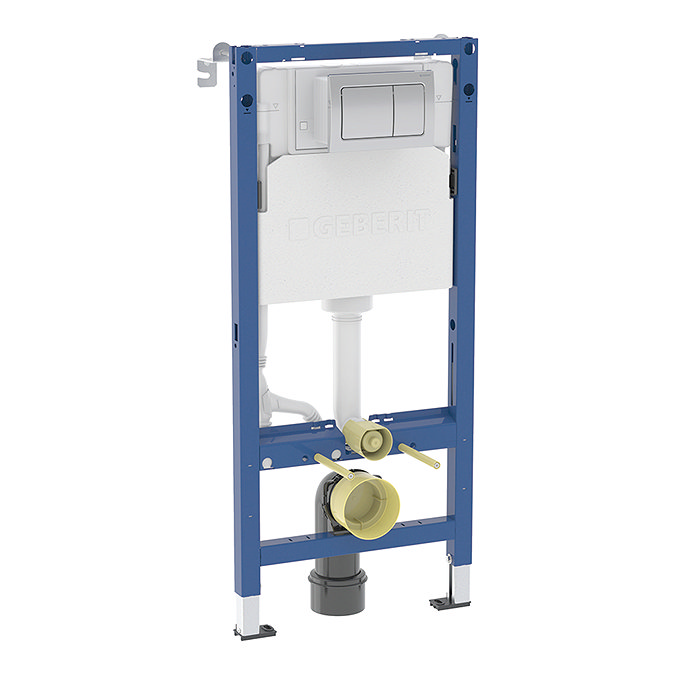

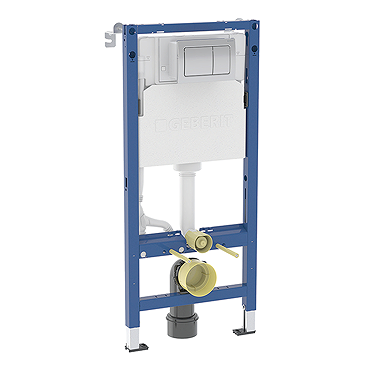

Geberit Duofix Frame 112cm with Alpha Concealed Cistern and Alpha01 Flush Plate 12cm

Geberit Duofix Frame 112cm with Alpha Concealed Cistern and Alpha01 Flush Plate 12cm - 458.040.21.2

Designed to last, Geberit Alpha frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution. Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability,This product is dual flush with volume adjustment options to help save water and also comes with flush plate and a concealed cistern. The Duofix Frame is strength-tested to bear a weight of up to 63 stone (400kg).

Application Purposes

• For drywall construction
• For installation in part or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62 cm
• For floor constructions 0–20 cm



Characteristics

• Self-supporting frame, powder-coated
• Frame top open
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Feet adjustable 0–20 cm
• Foot plates made of plastic
• Foot plate depth suitable for installation in U-profiles UW 50
• Connection bend can be mounted without tools
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
  Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Fastening option for electrical connection

Comprises

• Angle stop valve R 1/2", with adaptor ring
• Protection box for service opening, made of polystyrene foam
• 2 distance bolts
• 2 wall anchors
• Connection set for WC, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adaptor socket made of PE-HD, ø 90 / 110 mm
• 2 protection plugs
• Cup for flush volume reduction 4.0 / 2.6 l
• Crossbar for panelling support
• 2 threaded rods M12
• Fastening material
• Flush plate Alpha01
