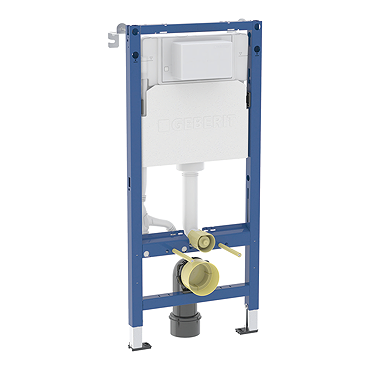

Geberit Duofix Frame 112cm with Alpha Concealed Cistern 12cm

Geberit Duofix Frame 112cm with Alpha Concealed Cistern 12cm - 458.039.00.2

Designed to last, Geberit Alpha frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution. Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability, This product is Dual flush with volume adjustment options to help save water.

Compatible with Geberit Alpha Flush Plates and Geberit Pneumatic Flush Buttons.

Features:

• Size: Height: 1120mm, Width: 500mm, Depth: 120mm
• Dual flush with volume adjustment options to help save water
• Compatible with all Geberit Alpha flush buttons
• Guaranteed availability of function maintaining spare parts for 25 year
• Leakproof due to one piece blow moulded cistern

Application Purposes:

• For installation in part-height prewall installations
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62cm
• For floor constructions 0–20cm

Characteristics:

• Self-supporting frame, powder-coated
• Frame top open
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Feet adjustable 0–20 cm
• Foot plates made of plastic
• Foot plate depth suitable for installation in U-profiles UW 50
• Connection bend can be mounted without tools
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Fastening option for electrical connection

Comprises:

Angle stop valve R 1/2", with adaptor ring
Protection box for service opening, made of polystyrene foam
2 distance bolts
2 wall anchors
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adaptor socket made of PE-HD, ø 90 / 110 mm
2 protection plugs
Cup for flush volume reduction 4.0 / 2.6 l
Crossbar for panelling support
2 threaded rods M12
Fastening material
