Geberit Duofix Element Frame 98cm with Alpha Concealed Cistern and Square Flush Plate

Geberit Duofix Element Frame 98cm with Alpha Concealed Cistern and Square Flush Plate

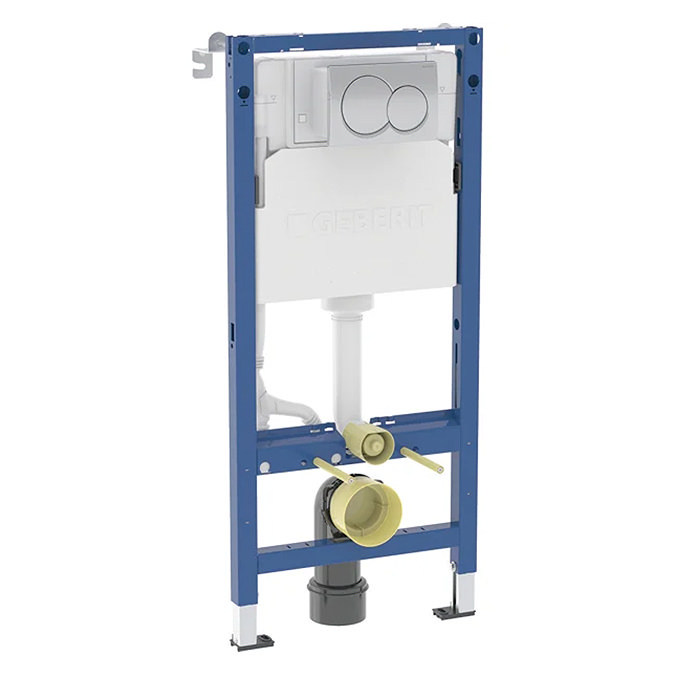

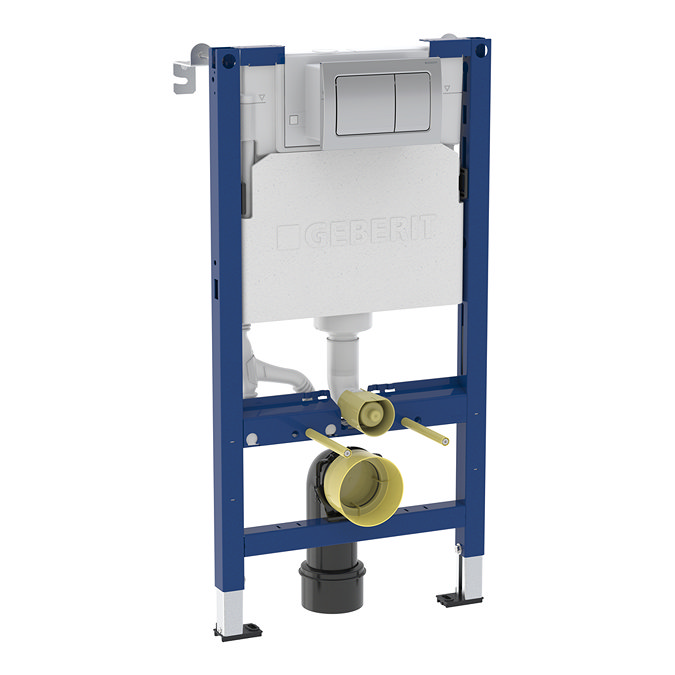

The Geberit Duofix Element Frame 98cm with Alpha Concealed Cistern and Square Flush Plate is a compact, self-supporting installation system designed for wall-hung WCs in part-height prewalls and timber or metal stud constructions. Featuring a fully insulated 12cm Alpha concealed cistern with dual flush capability (factory setting: 5.8/3 litres), it ensures water efficiency and quiet operation. The corrosion-resistant powder-coated steel frame supports WC projections up to 62cm and includes a tool-free connection bend, integrated angle stop valve, and conduit pipe for AquaClean compatibility. The included Alpha01 square flush plate in gloss chrome offers intuitive front actuation, combining minimalist design with dependable performance for modern bathroom installations.

Features

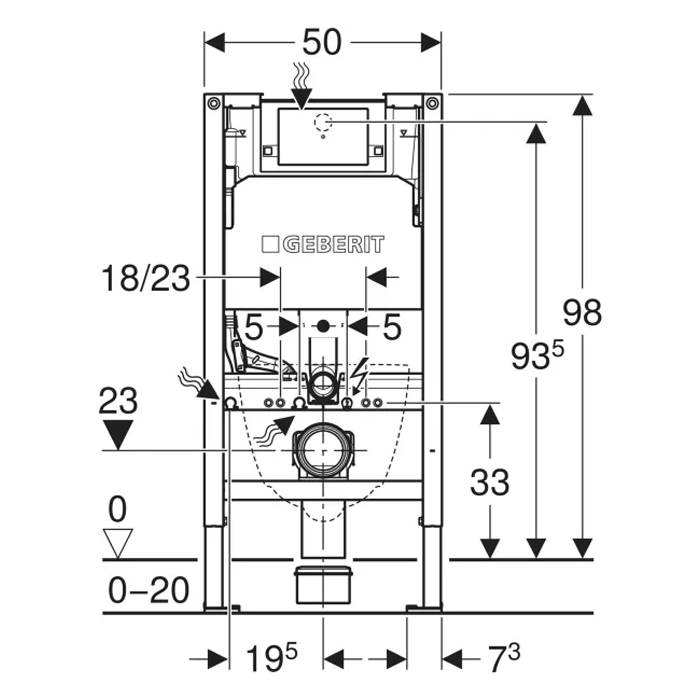

• Height: 980mm
• Width: 500mm
• Depth: 120mm
• Dual flush with volume adjustment options to help save water
• Leakproof due to one piece blow moulded cistern

Application Purposes

• For metal and wood frame walls
• For installation in part height prewalls
• For installation in room-height partition walls
• For floor constructions 0–20 cm
• For wall-hung WCs

Characteristics

• Statically self-supporting frame, protected against corrosion with powder coating

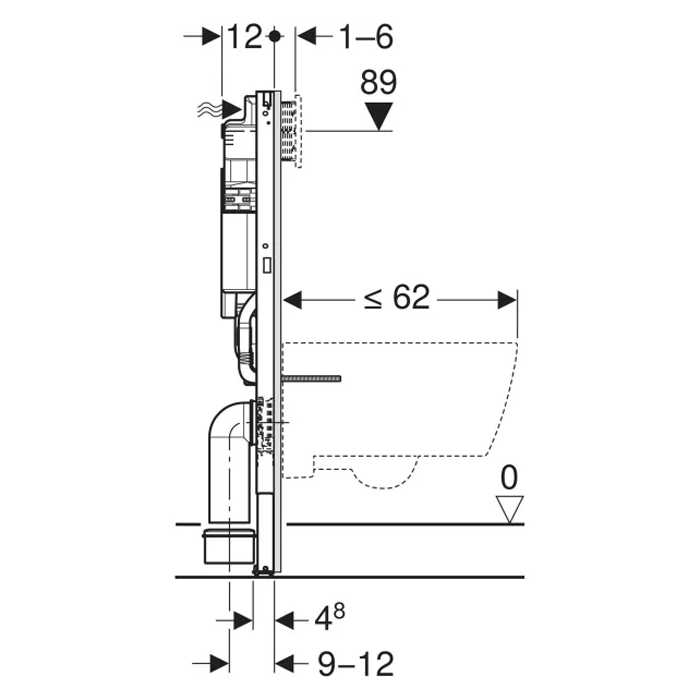

• Frame for wall-hung WCs with connection dimensions as per EN33 and projection up to 62cm
• Alternative fastening point for wall anchors
• Foot plates made of plastic
• Foot plate depth suitable for installation in U-profiles UW 50
• Galvanised leg supports protected against corrosion
• Connection bend can be mounted without tools
• Geberit Alpha concealed cistern 12cm fully insulated against condensation
• For front actuation, suitable for dual flush
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• Protection box for service opening, can be cut to length, protects against moisture and dirt
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection

Technical Data

• Flow pressure: 0.1-10 bar
• Maximum operating temperature: 25°C
• Flush volume, factory setting 5.8 and 3l
• Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5l
• Flush volume small, adjustment range: 2-4l
• Button shape: Square

Comprises

• Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
• Protection box for service opening
• 2 wall anchors
• 2 fixing brackets
• Geberit Alpha01 flush plate for dual flush, square
• Connection set for WC, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adaptor socket made of PE-HD, ø 90 / 110 mm
• Fastening and protection material

Please note that all measurements are approximate, and images are for illustrative purposes only

10 Year Guarantee
