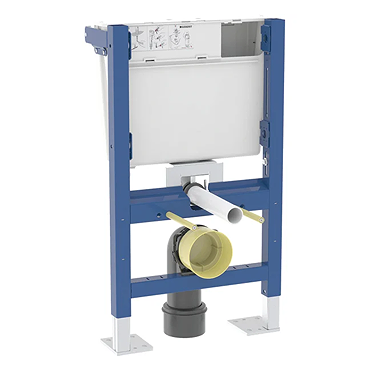

Geberit Duofix Element Frame 79cm with Low-Height Concealed Cistern

Geberit Duofix Element Frame 79cm with Low-Height Concealed Cistern

The Geberit Duofix Element Frame 79cm with Low-Height Concealed Cistern is a compact, self-supporting installation system designed specifically for wall-hung WCs within bathroom furniture or part-height prewalls. Featuring a fully insulated low-height cistern with dual flush capability (factory setting: 5.8/3 litres), it promotes water efficiency and quiet operation. The powder-coated steel frame includes galvanised adjustable feet, large foot plates for raised power supply, and a sound-absorbing connection bend with tool-free depth adjustment. With pneumatic flush actuation and bottom-left water supply connection, this unit is ideal for installations with limited vertical space, offering reliable performance and sleek integration into modern bathroom designs.

Application Purposes

• For metal and wood frame walls
• For installation in part-height prewalls
• For installation in bathroom furniture
• For floor constructions 0–18 cm
• For wall-hung WCs
• Not suitable for Geberit AquaClean Alba
• Not suitable for Geberit AquaClean Sela

Characteristics

• Statically self-supporting frame, protected against corrosion with powder coating
• Frame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62cm
• Galvanised leg supports protected against corrosion
• Connection bend can be mounted without tools
• Cistern with low installation height
• Pneumatic flush actuation, suitable for dual flush
• Flush pipe connection with compression joint
• Water supply connection on the bottom left
• Water supply connection 1/2”

Technical Data

• Material: Plastic
• Flow pressure 0.1-10 bar
• Maximum operating temperature, water 25°C
• Flush volume, factory setting - 5.8 and 3l

What’s Included

• Connection bend 90° made of PE-HD, ø 90mm
• Adaptor socket made of PE-HD, ø 90 / 110mm
• Cup for flush volume reduction 4.0 / 2.6 l
• Fastening and protection material

Please note that all measurements are approximate, and images are for illustrative purposes only

10 Year Guarantee
