Geberit Duofix Delta 98cm Frame & Cistern with Chrome Round Button Flush Plate

Geberit Duofix Alpha 98cm Frame & Cistern with Chrome Round Button Flush Plate - 458.038.21.2

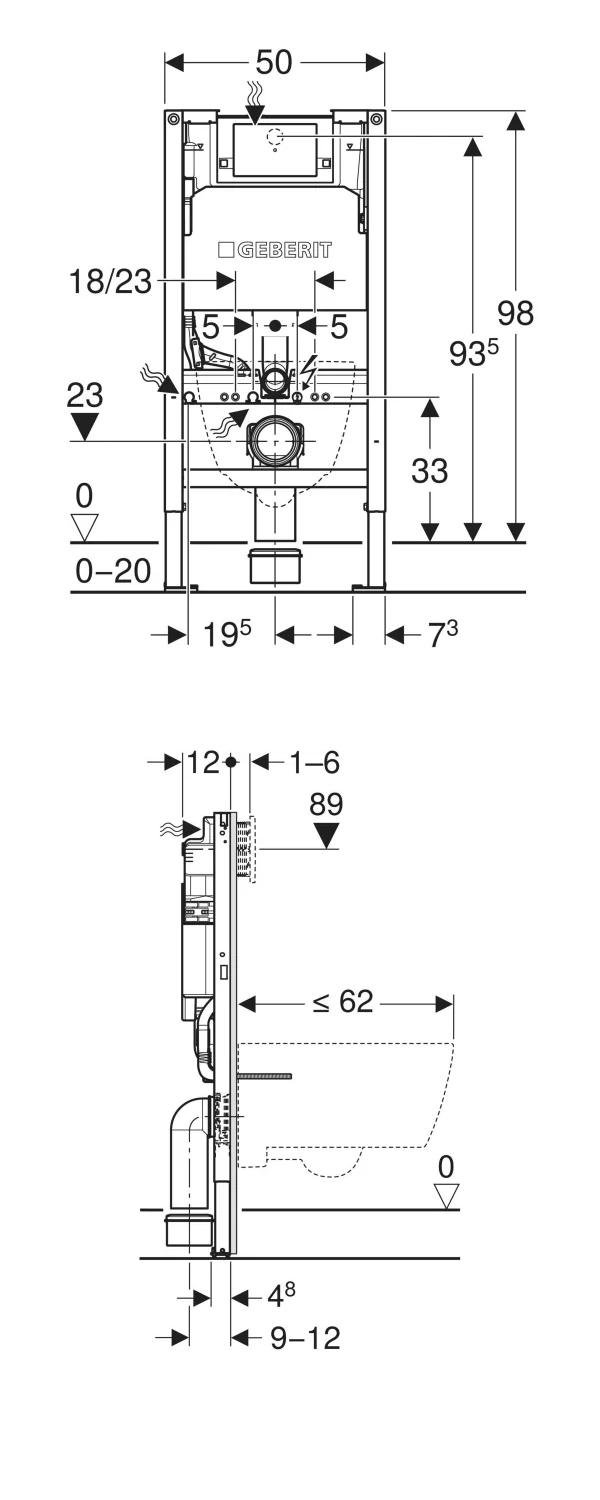

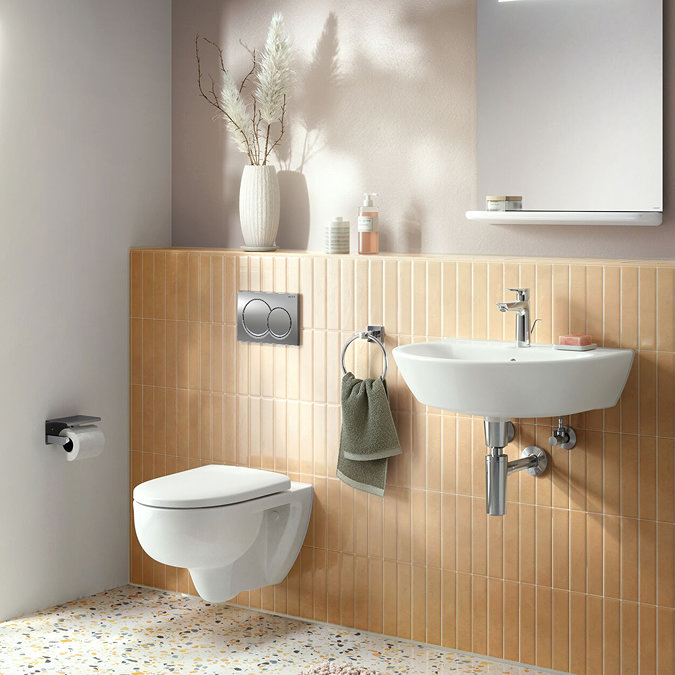

With an installation height of 98cm, this Geberit frame and cistern complete with flush plate supplied, is perfect for part wall, or under window installations. 60 years of Geberit research and development in concealed cisterns have been applied into this Alpha frame & cistern from Geberit. The result is an elegant yet simple product with market leading functionality, giving you confidence in every flush, and peace of mind regarding its durability and ease of installation. Geberit Alpha Frames are strength-tested to bear a weight of up to 63 stone (400kg) when paired with a Geberit toilet pan and have simple maintenance, simply remove the flush plate for access to all important parts. Acoustic solutions with the Duofix frame mean it’s all quiet behind the scenes.

Technical Data

• Operating temperature, water max.: 25 °C
• Flush volume, factory setting: 5.8 / 3 l
• Flush volume small, adjustment range: 2–4 l

Application Purposes

• For drywall construction
• For installation in part-height prewall installations
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62 cm
• For floor constructions 0–20 cm

Characteristics

• Statically self-supporting frame, protected against corrosion with powder coating
• Frame top open
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet
• Feet adjustable 0–20 cm
• Foot plates made of plastic
• Foot plate depth suitable for installation in U-profiles UW 50
• Connection bend can be mounted without tools
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055,
• Class II
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection



Comprises

(1) Alpha01 Flush Plate - Chrome

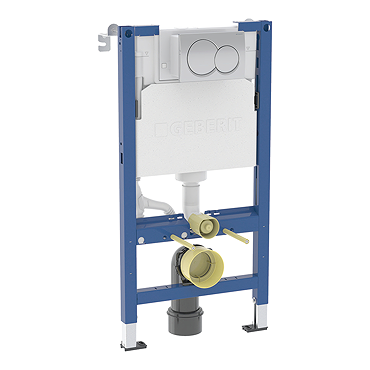

(1) Duofix WC Frame 98cm with Alpha Concealed Cistern
