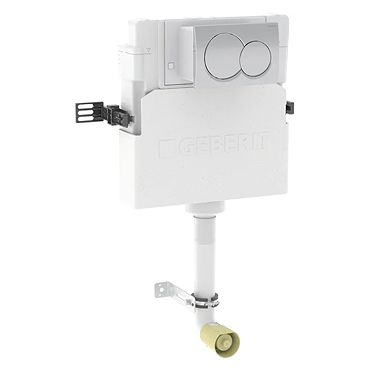

Geberit Alpha Concealed Cistern 12cm with Alpha01 Round Flush Plate Chrome

Geberit Alpha Concealed Cistern 12cm with Alpha01 Round Flush Plate Chrome

The Geberit Alpha Concealed Cistern 12cm with Alpha01 Round Flush Plate in chrome is a sleek, space-saving solution designed for modern bathrooms, offering reliable dual flush functionality with a factory setting of 6/3 litres. With an installation height of 109cm, this fully insulated cistern prevents condensation and supports front actuation via the stylish Alpha01 round flush plate in gloss chrome. Engineered for masonry walls and prewall installations, it features adjustable depth, a flush bend fitted as standard, and a water supply connection at the rear or top centre. The unit includes a protection box for the service opening, angle stop valve, and all necessary fixings, ensuring easy installation and long-term performance.

Application Purposes

• For masonry walls
• For installation in part or room-height prewall installations
• For installation in room-height installation walls
• For floor-standing and wall-hung WCs

Characteristics

• Adjustable in depth
• Geberit Alpha concealed cistern 12 cm fully insulated against condensation
• For front actuation, suitable for dual flush
• Immediate post flush possible with factory setting
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Flush bend fitted
• Water supply connection on the rear or top centre
• Protection box for service opening, can be cut to length, protects against moisture and dirt

Technical Data

• Flow pressure 0.1-10 bar
• Maximum operating temperature: 25°C
• Flush volume, factory setting: 5.8 and 3l
• Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5l
• Flush volume small, adjustment range: 2-4l
• Button shape: Round

What's Included

• Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
• Protection box for service opening
• Geberit Alpha01 flush plate for dual flush, round
• Fastening for flush bend
• Flush bend extension, ø 45 mm
• Protection plug
• 2 fixing brackets
• Fastening material

Please note that all measurements are approximate, and images are for illustrative purposes only

10 Year Guarantee
