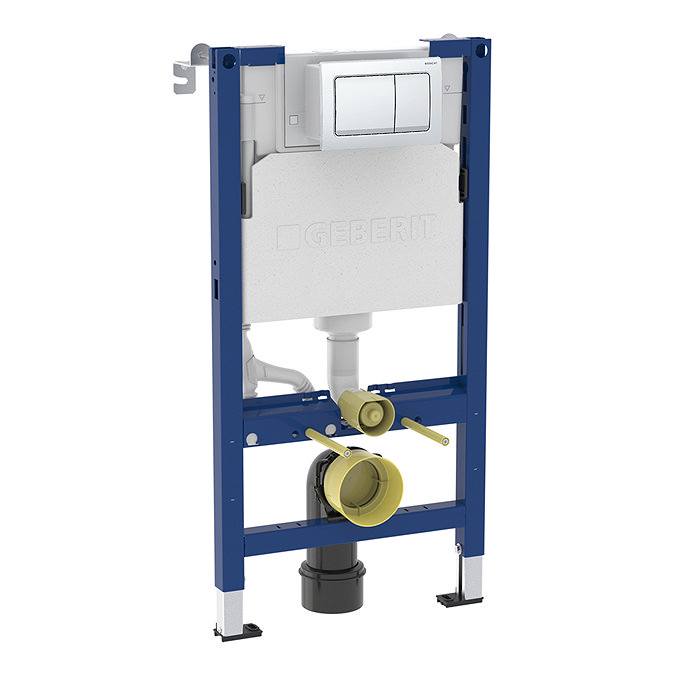

Geberit Alpha 98cm Frame & Cistern with White Square Flush Plate

Geberit Alpha 98cm Frame & Cistern with White Square Flush Plate

The Geberit Alpha 98cm Frame and Cistern with White Square Flush Plate combines durability, practicality, and modern style. Designed for wall-hung WCs, it features a corrosion-resistant steel frame and a fully insulated 12cm Alpha cistern to prevent condensation. Suitable for metal or wood frame walls, part-height prewalls, and floor constructions up to 20cm, it offers flexible installation options. The dual flush system ensures efficient water use, while the high-quality components and black chrome flush plate provide a sleek, contemporary finish ideal for modern bathrooms.

Product Details:

• Frame Height: 980mm

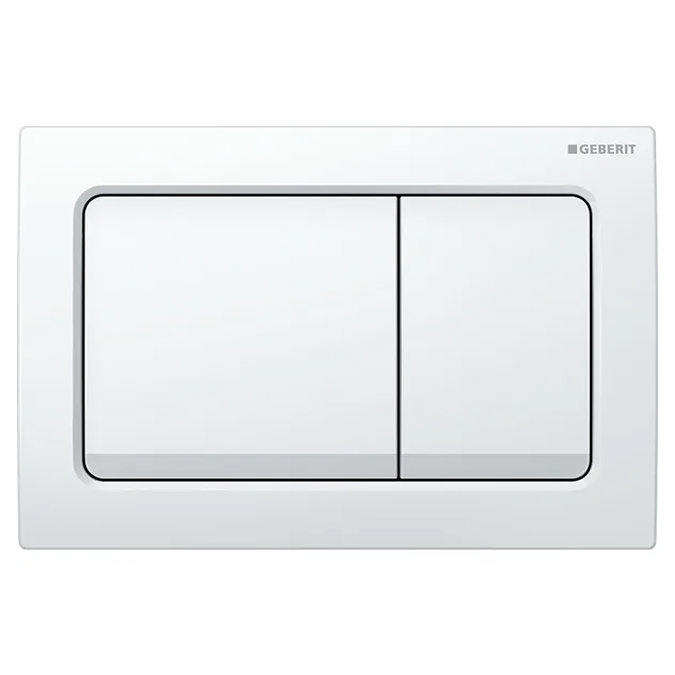

• Flush Plate Colour: White
• For wall-hung WCs with projection up to 620mm
• Suitable for metal or wood frame walls and part-height prewalls
• Compatible with floor builds 0–20cm
• Fully insulated 12cm Alpha concealed cistern
• Dual flush with front actuation
• Factory set at 5.8 / 3L, adjustable 4–7.5L and 2–4L
• Flow pressure 0.1–10 bar, max water temperature 25°C
• Rear or top water connection
• Moisture-protected service opening box
• Conduit for AquaClean feed and electrical connection option
• Plastic foot plates with galvanised, corrosion-protected legs
• Tool-free connection bend installation
• Made from high-quality steel and PE-HD materials
• EN 14055 Class II compliant

Comprises

• Geberit Duofix set of foot fastener on rear wall
• Geberit set of support brackets for WC ceramic appliances with small contact surfaces
• Geberit sound insulation set for wall-hung WC
• Geberit Duofix set of foot extensions 20 cm length

Please note that all measurements are approximate, and images are for illustrative purposes only

25-year guarantee on frame and cistern

5-year guarantee on flush plate and mechanical components
