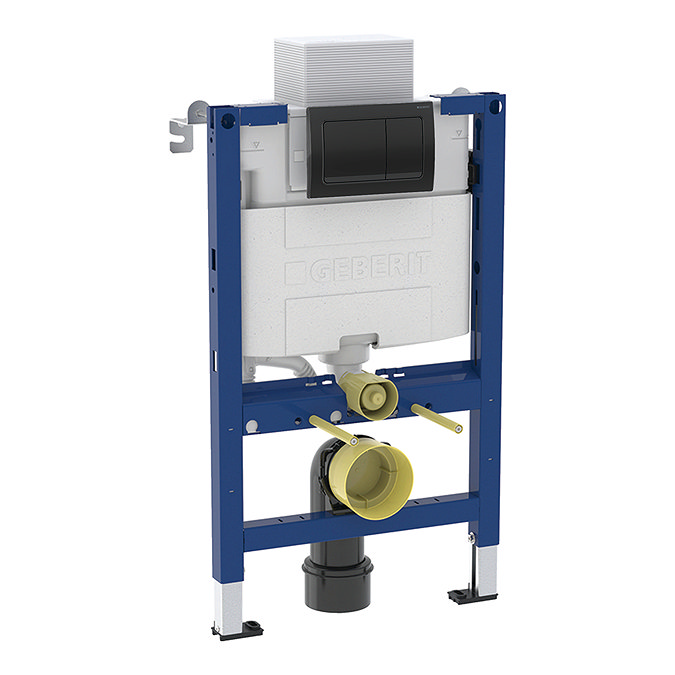

Geberit Alpha 82cm Frame & Cistern with Black Chrome Square Flush Plate

Geberit Alpha 82cm Frame & Cistern with Black Chrome Square Flush Plate

The Geberit Alpha 82cm Frame and Cistern with Black Chrome Square Flush Plate is a compact, durable installation system designed for wall-hung WCs in modern bathrooms. Built from corrosion-resistant, powder-coated steel, it features a fully insulated 12cm Alpha cistern to prevent condensation and ensure quiet, efficient performance. Ideal for metal or wood frame walls and part-height prewalls, this system supports dual flush operation for water efficiency and offers flexible installation with a left-hand water connection. Supplied with a sleek black chrome flush plate, it combines reliability, style, and functionality, backed by Geberit’s renowned engineering quality.

Product Details:

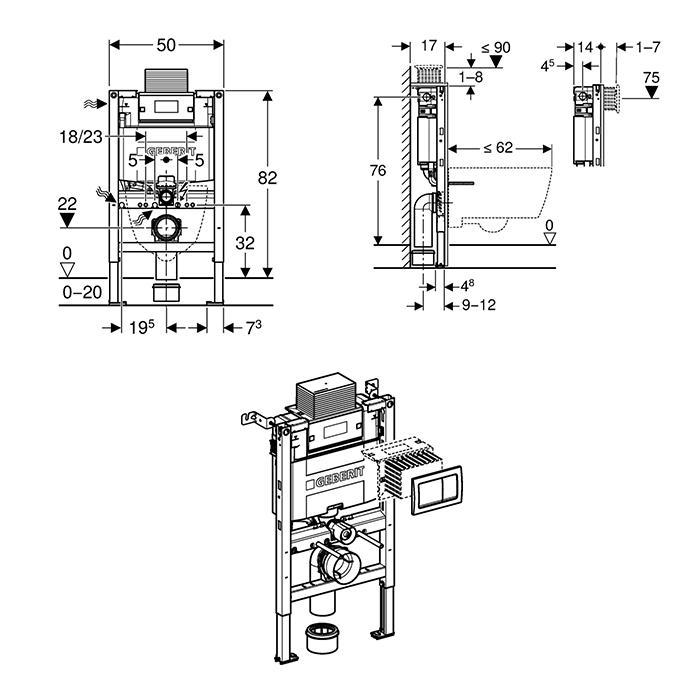

• Frame Height: 820mm

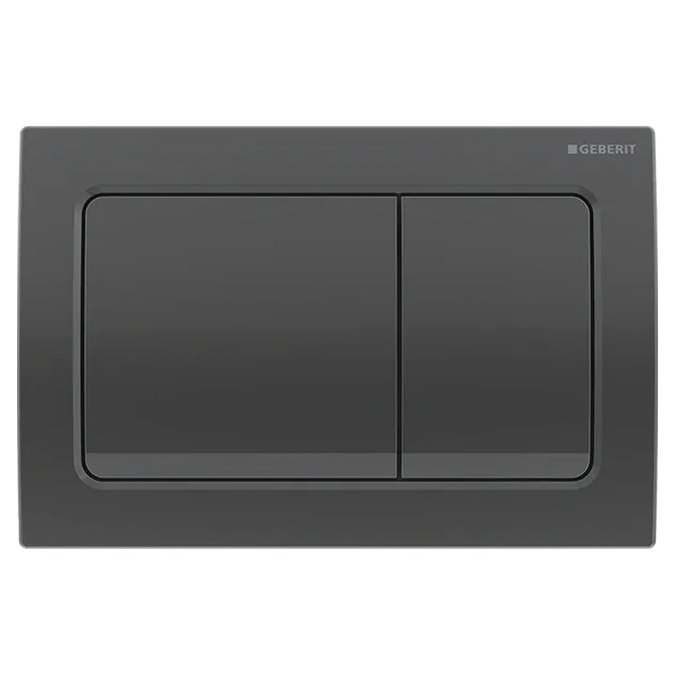

• Flush Plate Colour: Black Chrome
• For wall-hung WCs with projection up to 620mm
• Suitable for metal or wood frame walls and part-height prewalls
• Compatible with floor builds 0–20cm
• Frame includes Ø9mm fixing holes for timber installation
• Fully insulated 12cm Alpha concealed cistern
• Dual flush with top or front actuation
• Factory set at 5.8 / 3L, adjustable 4–7.5L and 2–4L
• Flow pressure 0.1–10 bar, max water temperature 25°C
• Left-side water connection
• Moisture-protected service opening box
• Conduit for AquaClean feed and electrical connection option
• Plastic foot plates with galvanised, corrosion-protected legs
• Tool-free connection bend installation
• Made from high-quality steel and PE-HD materials
• EN 14055 Class II compliant

Comprises

• Geberit Duofix fastening material for stud clearance 50–57.5cm
• Geberit Duofix set of foot fastener on rear wall
• Geberit set of support brackets for WC ceramic appliances with small contact surfaces
• Geberit sound insulation set for wall-hung WC
• Geberit Duofix set of foot extensions 20 cm length

Please note that all measurements are approximate, and images are for illustrative purposes only

25-year guarantee on frame and cistern

5-year guarantee on flush plate and mechanical components
