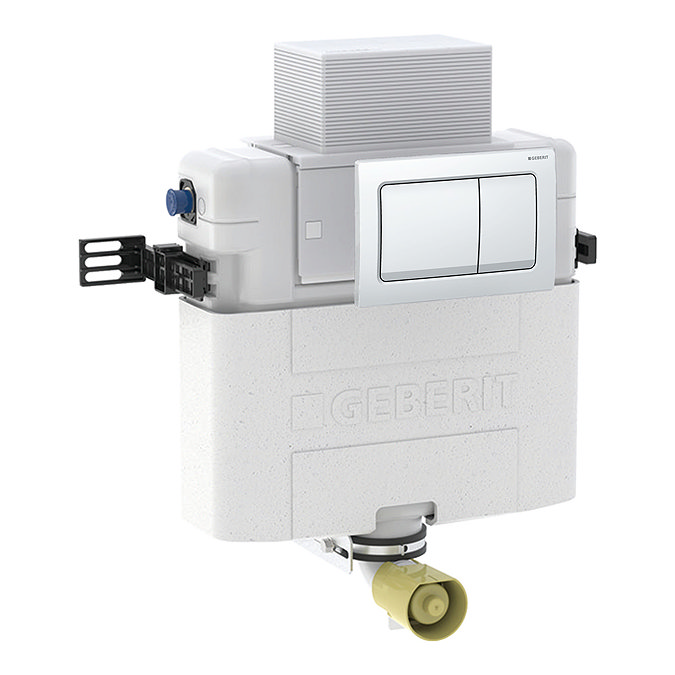

Geberit Alpha 82cm Concealed Cistern with White Square Flush Plate

Geberit Alpha 82cm Concealed Cistern with White Square Flush Plate

The Geberit Alpha 82cm Concealed Cistern with White Square Flush Plate offers a reliable and compact solution for both wall-hung and floor-standing WCs. Designed for masonry and part-height prewall installations, it features a 12cm-deep concealed cistern that is fully insulated against condensation to ensure quiet and efficient operation. The dual flush system with top or front actuation provides flexible water-saving performance, while the adjustable installation depth allows for easy fitting in a range of bathroom layouts. Supplied with a stylish white square flush plate, this Geberit cistern combines durable construction, refined design and trusted functionality for long-lasting use.

Product Details

• Cistern height 820mm
• Cistern depth 120mm
• Adjustable installation depth for flexible fitting
• Fully insulated against condensation for quiet operation
• Dual flush system with top or front actuation
• Factory setting 5.8 / 3L, adjustable between 4–7.5L and 2–4L
• Flow pressure range 0.1–10 bar
• Maximum water temperature 25°C
• Immediate post-flush function enabled
• Water connection on the left or rear left
• Welded flush bend for secure installation
• Service opening box protects against moisture and dirt
• Made from high-quality plastic for durability and ease of maintenance
• Reliable and simple to install

Comprises:

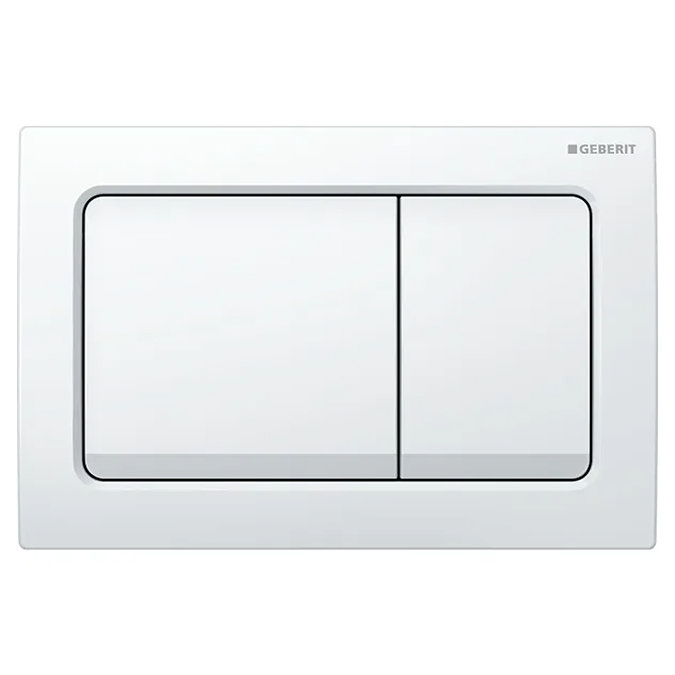

• Geberit Alpha01 flush plate for dual flush, square
• Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Fastening for flush bend
• Flush bend extension, ø 45mm
• Geberit pull disc for Type 212 flush valve for Omega concealed cistern 82 cm
• Protection plug
• 2 fixing brackets
• Fastening material

Please note that all measurements are approximate, and images are for illustrative purposes only

25-year guarantee for cistern

5-year guarantee on flush plate and mechanical components
