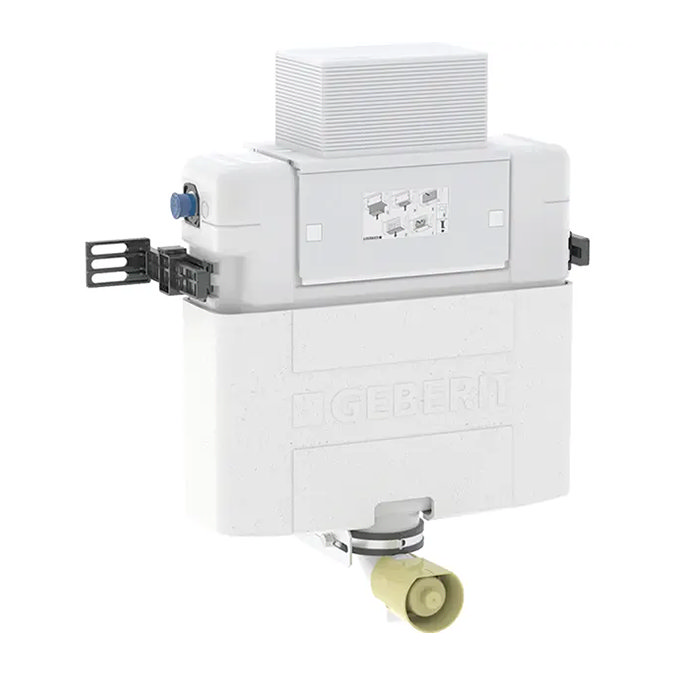

Geberit Alpha 12cm Dual Flush Concealed Cistern 82cm Installation Height

Geberit Alpha 12cm Dual Flush Concealed Cistern 82cm Installation Height

The Geberit Alpha 12cm Dual Flush Concealed Cistern with an 82cm installation height is a compact, fully insulated cistern designed for floor-standing WCs and height-restricted installations such as under windows or within furniture. Offering dual flush functionality with top or front actuation, it promotes water efficiency with a factory setting of 5.8/3 litres. The cistern features a welded flush bend, adjustable depth, and a water supply connection on the rear or left side, ensuring flexible installation. Compliant with EN 14055 Class II standards and WRAS approved, it’s compatible with Geberit Alpha flush plates in various styles and finishes, making it a versatile and reliable choice for modern bathrooms.

Application Purposes

• For masonry walls
• For installation in part-height prewall installations
• For floor-standing and wall-hung WCs

Characteristics

• Adjustable in depth
• Geberit Alpha concealed cistern 12 cm fully insulated against condensation
• For top or front actuation, suitable for dual flush
• Immediate post flush possible with factory setting
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Welded flush bend
• Water supply connection on the left or rear left
• Protection box for service opening, can be cut to length, protects against moisture and dirt

Technical Data

• Material: Plastic
• Flow pressure 0.1-10 bar
• Maximum operating temperature, water 25°C
• Flush volume, factory setting: 5.8 and 3l
• Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range: 2-4l

What’s Included

• Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• Flush bend extension, ø 45 mm
• Fastening for flush bend
• 2 fixing brackets
• Fastening and protection material
• Geberit pull disc for Type 212 flush valve for Omega concealed cistern 82 cm

Please note that all measurements are approximate, and images are for illustrative purposes only

10 Year Guarantee
