Cruze Shower Bath + Concealed 1 Outlet Shower Pack (1700 B Shaped with Screen + Panel)

Cruze Shower Bath + Concealed 1 Outlet Shower Pack (1700 B Shaped with Screen + Panel)

The Cruze Shower Bath and Concealed 1 Outlet Shower Pack (1700 B Shaped with Screen + Panel) features a stylish overhead ultra-thin rainfall-type round shower head. These modern shower baths provide both showering and bathing space in the bathroom. This 1700mm shower bath includes a curved hinged bath screen and a matching front panel, both manufactured from high-quality gloss white acrylic. All our shower baths are available in either left or right-hand configuration. They are the ideal solution for families looking to add a touch of luxury while conserving space.

Please note, the optional bath end panel (BBTEP) is sold separately.

Bath Details:

• Type: B-Shaped Shower Bath
• Dimensions: Width 1700 x Depth at widest point 900 / Depth 736mm
• Bath Volume: 240 Litres
• Design: Clean, elegant, contemporary
• Choice of Right or Left-hand bathtub
• Build: High quality
• Practical design solution
• Material: White Gloss Acrylic
• Tap holes: None
• White Gloss Acrylic Side Panel: Included
• Leg Set: Supplied
• Guarantee: 5 Years

Curved Bath Screen Details:

• Height: 1435mm
• Width: 850-870mm
• Standards: Manufactured to the highest
• Finish: Polished chrome
• Reversible: Yes
• Type: Hinged bath screen
• Caps: Metal
• Glass: 5mm toughened safety
• Guarantee: 5 Years

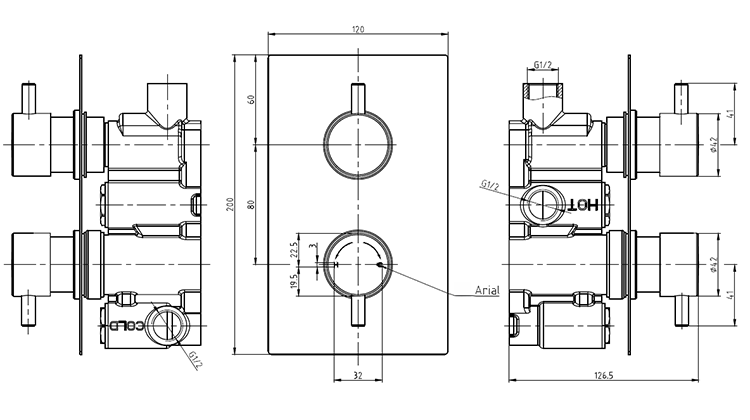

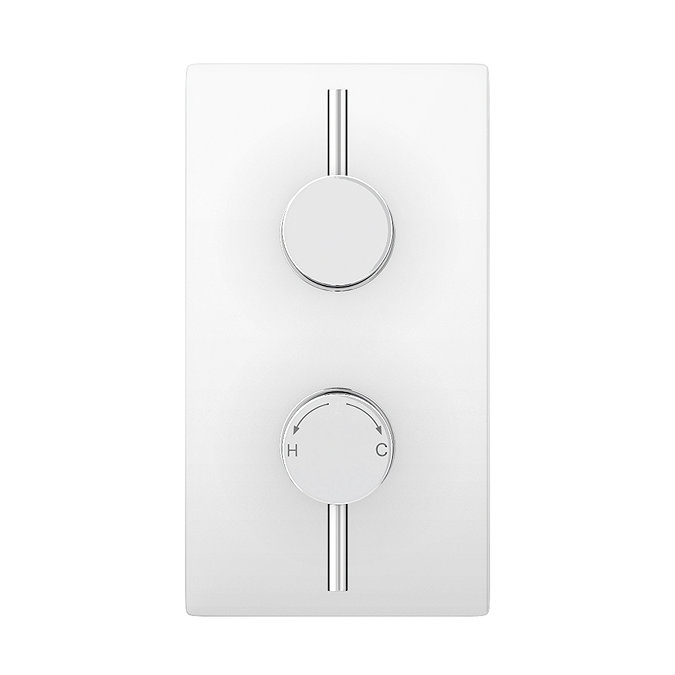

Concealed Shower Valve Details:

• Height: 200mm
• Width: 120mm
• Depth: 133mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Round
• Material: Brass Internals
• Control: Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Faceplate: Rectangular
• Outlet: For use with 1
• Installation: Can be fitted vertically or horizontally
• Hot water temperature: 55 to 85 Degrees
• Pump recommendation: If required, we recommend a universal or negative head pump. Please note that positive pumps will not work efficiently on a gravity-fed tank system unless a booster pump is installed.
• Guarantee: 5 Years (1 Year on serviceable parts, for example, internal components such as check valves and cartridges)

Shower Head + Arm Details:

• Style: Modern
• Colour/Finish: Polished Chrome
• Material: Stainless Steel
• Shower Head: Diameter 200mm
• Shower Arm Length: 460mm
• Installation: Wall-mounted
• Type: Rainfall
• Bend: 90-degree
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2" BSP
• Swivel joint: Supplied
• Nozzles: Rub clean for easy maintenance
• Guarantee: 5 Years

Note:

End Panel, taps, and waste are not included.
All images provided are for illustrative purposes only, and the measurements are approximate.
Tap holes have to be drilled by the customer.

The package comprises:

(1) 1700mm B-Shaped Shower Bath with Leg Set
(1) B-Shaped Acrylic Bath Front Panel
(1) 5mm Curved Bath Screen
(1) Cruze Twin Modern Square Concealed Shower Valve - Chrome
(1) Cruze Wall Mounted 90 Degree Bend Shower Arm 460mm - Chrome
(1) Cruze Ultra Thin Round Shower Head with Swivel Joint (200mm)

Gravity Fed Systems:

If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar. Therefore, we recommend installing a negative or universal pump (sold separately). Please note that positive pumps will not work.
