Compact Dual Flush Concealed WC Cistern with Wall Hung Frame with Round Button Chrome Flush & Modern Toilet

Compact Dual Flush Concealed WC Cistern with Wall Hung Frame with Round Button Chrome Flush & Modern Toilet

Designing a bathroom with unique structural features? Wall hung toilets like this Compact Concealed WC Cistern & Modern Toilet make for a practical choice in tricky spaces. This compact toilet comes with a choice of four short projection pans, and you can even position it under a window. There's a dual flush system that will save on water, and the concealed cistern is tucked behind the unit into the wall for a streamlined look. This elegant toilet comes with a soft close toilet seat to prevent those unpleasant sudden noises disturbing the peace in your bathroom.

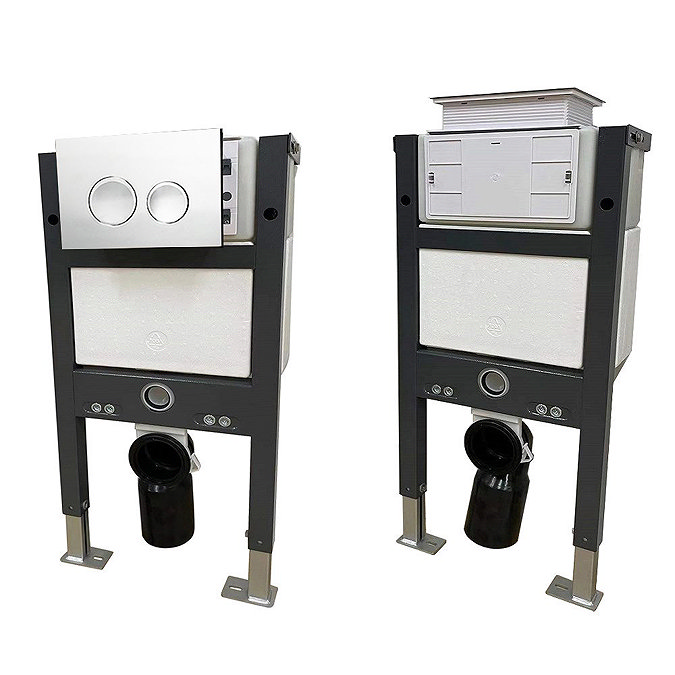

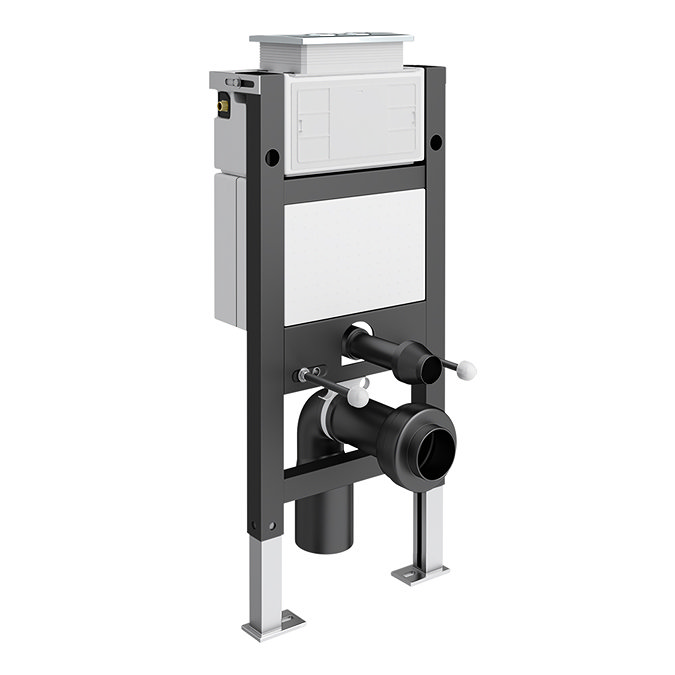

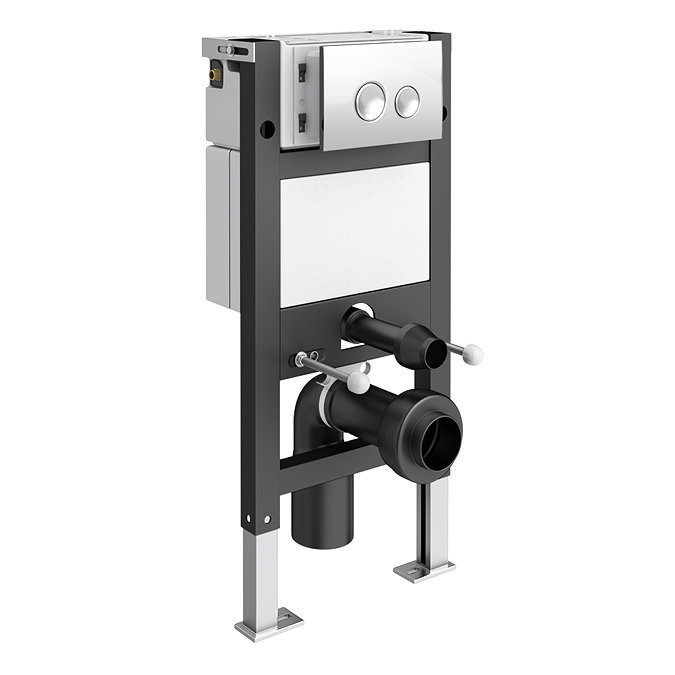

Wall Hung Frame Details

• Height: 755-1055mm (Approx.)
• Width: 415mm
• Depth: 166mm
• Frame Height Adjustment: 0-300mm
• Full Flush: 6-7.5L, Half flush: 2.5-4L
• Fill valve pressure: 0.2-16bar
• Metal Frame Support weight: 400KG
• Compatible with all wall-hung WC pans
• Built-in or plasterboard wall installation

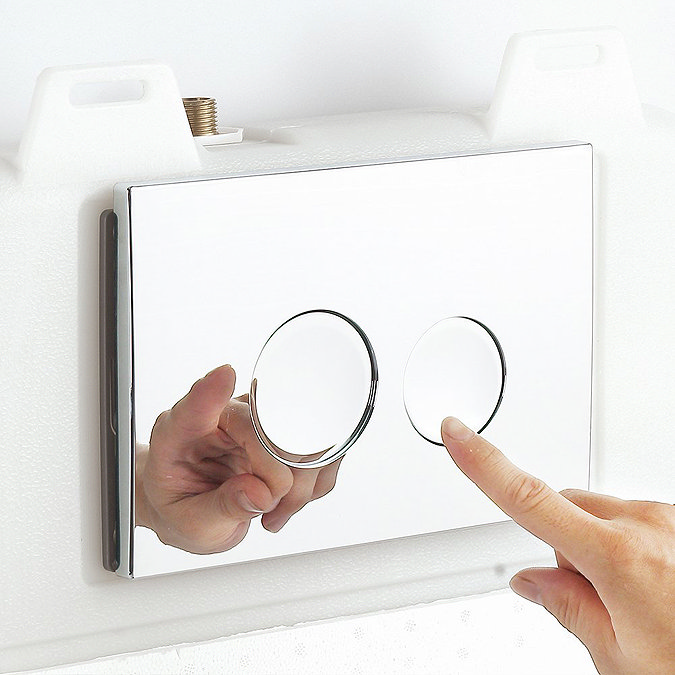

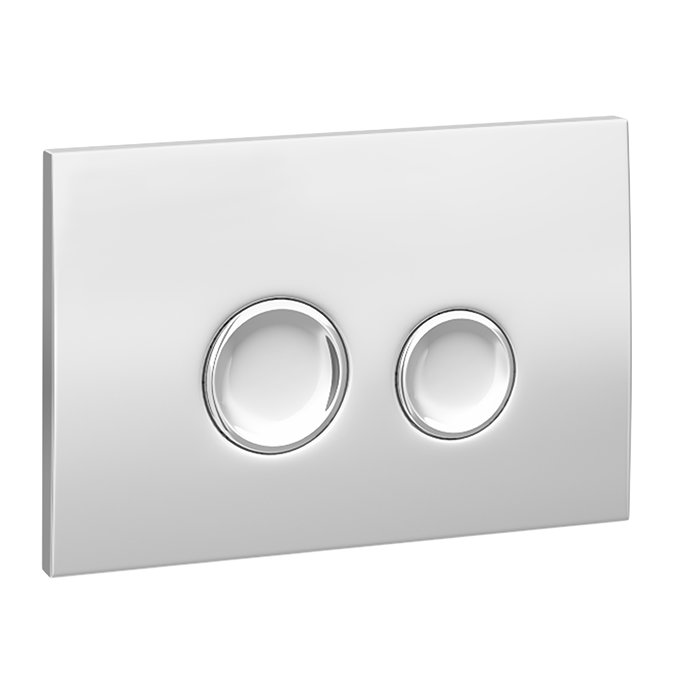

• Flush Plate Size: 242 x 160mm
• Flush Plate Colour: Polished Chrome
• Button Shape: Round
• Style: Modern
• Top or front flush installation
• Water saving dual-flush valve
• Insulated against condensation and reduces noise from water tank
• Durable moulded tank
• Easy access for maintenance
• Minimalist compact slimline design
• Suitable for bathroom furniture and concealed framework
• This fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations.
• Includes brackets and WC bend

Cistern

• Tested in accordance with EN 14055
  UKCA Marked
  ISO9001:2015 Registered Manufacturer

 Wall Hung Pan Options -

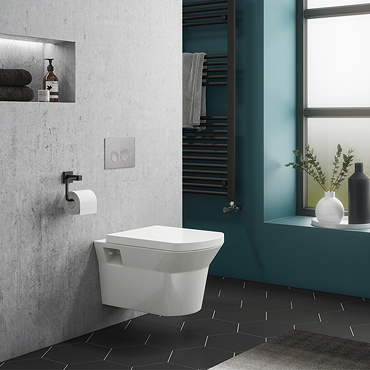

Option 1 - Premier Clara Wall-Hung Pan with Soft Close Seat

• Width - 355mm
• Depth - 525mm
• Height - 355mm
• Style - Contemporary
• Colour/Finish - Gloss white
• Material - Ceramic construction
• Supplied with soft-close seat

Option 2 - Hudson Reed - Round Wall-Hung Pan with top-fix Soft Close Seat

• Height - 415mm
• Width - 355mm
• Depth - 510mm
• Product Code - CPA004
• Brand - Hudson Reed
• Colour/Finish - Gloss white
• Material - Ceramic construction
• Supplied with a top-fix soft-close seat

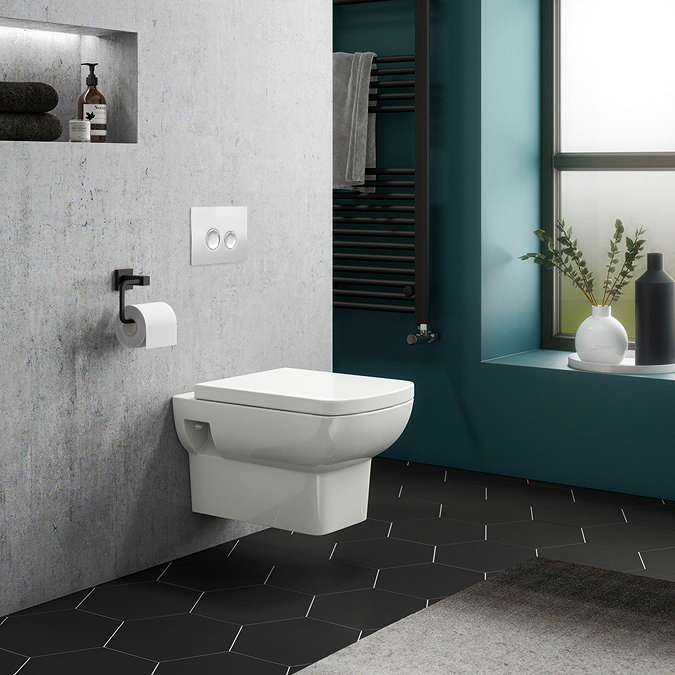

Option 3 - Hudson Reed - Square Wall Hung Pan with top-fix Soft Close Seat

• Height - 360mm
• Width 350mm
• Depth 525mm
• Product Code - CPA005
• Brand - Hudson Reed
• Colour/Finish - Gloss white
• Material - Ceramic construction
• Supplied with a top-fix soft-close seat

Option 4 - Toronto Modern Round Wall Hung Toilet Details

• Projection - 530mm
• Width - 355mm
• Height - 400mm
• Colour/Finish - Gloss White
• Material - Ceramic
• Supplied with a D-Shape Soft Close Top-Fixing Seat
