Compact Dual Flush Concealed WC Cistern with Wall Hung Frame & Modern Toilet Large Image
Compact Dual Flush Concealed WC Cistern with Wall Hung Frame & Modern Toilet  Profile Large Image
Compact Dual Flush Concealed WC Cistern with Wall Hung Frame & Modern Toilet  Feature Large Image
Compact Dual Flush Concealed WC Cistern with Wall Hung Frame & Modern Toilet Large Image

Compact Dual Flush Concealed WC Cistern with Wall Hung Frame with Square Button Chrome Flush & Modern Toilet

Part No.: Please select option

£319.95

In Stock

Spare Parts Available for This Item

Overview

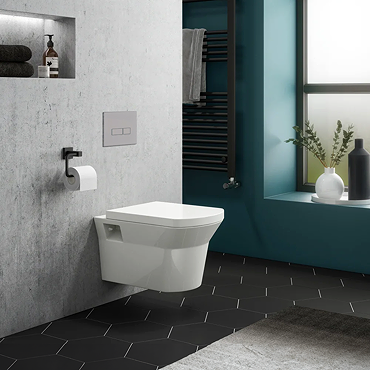

Compact Dual Flush Concealed WC Cistern with Wall Hung Frame with Square Button Chrome Flush & Modern Toilet

Designing a bathroom with unique structural features? Wall hung toilets like this Compact Concealed WC Cistern & Modern Toilet make for a practical choice in tricky spaces. This compact toilet comes with a choice of four short projection pans, and you can even position it under a window. There's a dual flush system that will save on water, and the concealed cistern is tucked behind the unit into the wall for a streamlined look. This elegant toilet comes with a soft close toilet seat to prevent those unpleasant sudden noises disturbing the peace in your bathroom.

Wall Hung Frame Details

  • Height: 755-1055mm (Approx.)
  • Width: 415mm
  • Depth: 166mm
  • Frame Height Adjustment: 0-300mm
  • Full Flush: 6-7.5L, Half flush: 2.5-4L
  • Fill valve pressure: 0.2-16bar
  • Metal Frame Support weight: 400KG
  • Compatible with all wall-hung WC pans
  • Built-in or plasterboard wall installation
  • Flush Plate Size: 242 x 160mm
  • Flush Plate Colour: Polished Chrome
  • Button Shape: Square
  • Style: Modern
  • Top or front flush installation
  • Water saving dual-flush valve
  • Insulated against condensation and reduces noise from water tank
  • Durable moulded tank
  • Easy access for maintenance
  • Minimalist compact slimline design
  • Suitable for bathroom furniture and concealed framework
  • This fixing frame has a small, compact design making it perfect for under windows or inside low-wall installations.
  • Includes brackets and WC bend


 Wall Hung Pan Options -

Option 1 - Premier Clara Wall-Hung Pan with Soft Close Seat


  • Width - 355mm
  • Depth - 525mm
  • Height - 355mm
  • Style - Contemporary
  • Colour/Finish - Gloss white
  • Material - Ceramic construction
  • Supplied with soft-close seat


Option 2 - Hudson Reed - Round Wall-Hung Pan with top-fix Soft Close Seat

  • Height - 415mm
  • Width - 355mm
  • Depth - 510mm
  • Product Code - CPA004
  • Brand - Hudson Reed
  • Colour/Finish - Gloss white
  • Material - Ceramic construction
  • Supplied with a top-fix soft-close seat


Option 3 - Hudson Reed - Square Wall Hung Pan with top-fix Soft Close Seat

  • Height - 360mm
  • Width 350mm
  • Depth 525mm
  • Product Code - CPA005
  • Brand - Hudson Reed
  • Colour/Finish - Gloss white
  • Material - Ceramic construction
  • Supplied with a top-fix soft-close seat


Option 4 - Toronto Modern Round Wall Hung Toilet Details



  • Projection - 530mm
  • Width - 355mm
  • Height - 400mm
  • Colour/Finish - Gloss White
  • Material - Ceramic
  • Supplied with a D-Shape Soft Close Top-Fixing Seat

Cistern

  • Tested in accordance with EN 14055
    UKCA Marked
    ISO9001:2015 Registered Manufacturer

Product Overview

Dimension image
Dimension image
Dimension image
Dimension image
