Chatsworth Traditional 500mm Graphite Toilet Unit with Square Pan, Cistern & Chrome Flush

Chatsworth Traditional 500mm Wide Graphite Toilet Unit with Square Pan, Concealed Cistern and Chrome Flush Button

The Chatsworth traditional 500mm wide back-to-wall toilet unit features a Victorian-inspired design with a modern twist. The Chatsworth range of charming bathroom furniture showcases classic styling with a satin graphite finish and tongue-and-groove side panelling. Manufactured to a high standard, the Chatsworth range of luxury furniture, with its clean minimalist design and muted palette, blends beautifully with any bathroom style.

WC Unit Details:

• Width: 500mm, Height: 820mm, Depth: 250mm
• Colour: Satin Graphite
• Unit Material: MDF
• Style: Traditional
• Type: WC Unit
• Simple & sophisticated design
• Free-standing unit
  Fully assembled cabinet
• Panel detailing
• Front panel can be drilled for right or left-hand front flush
• Cistern can be accessed by removing the WC unit lid

Toilet Details:

• Dimensions: Width: 350mm, Height: 400mm, Depth: 520mm
• Pan Material: Ceramic
• Seat Material: Urea
• Finish: Gloss White
• Type: Back To Wall
• Top-fix toilet seat
• Soft close seat
• Quick release
• Compliance / Approvals:
  BS 3402: 1969: Specification for quality of vitreous china sanitary appliances
  BS EN 33: WC pans with close-coupled cistern, connecting dimensions
  BS EN 997: WC pans with integral trap
  Water supply regulations 1999

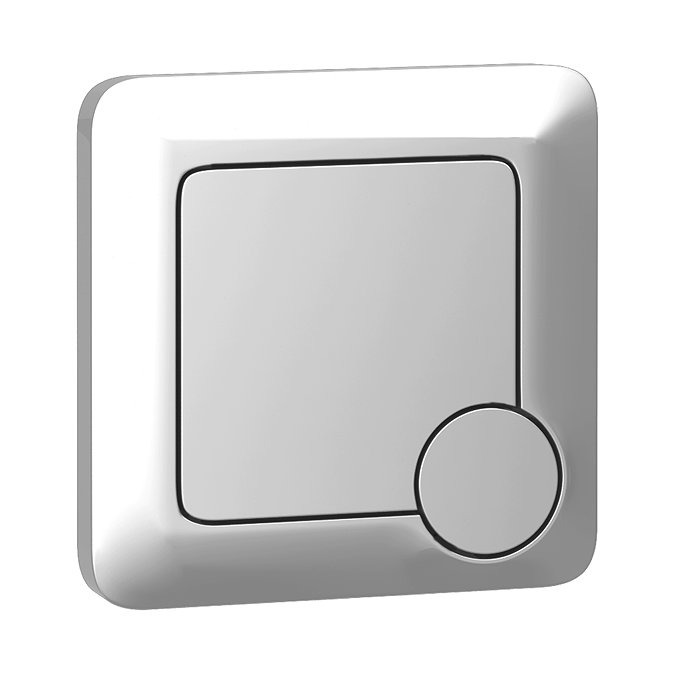

Concealed Cistern with Square Push Button Details:

• Cistern Dimensions: Height: 334mm, Width: 303mm, Depth: 136mm
• Button Dimensions: Width: 70mm, Height: 70mm
• Cistern Type: Cable concealed dual flush cistern
• Button Finish: Polished Chrome
• Button Shape: Square
• Front and top access for maintenance
• Material: HD Polyethylene
• Connection Size: 1/2" BSP
• Dual flush: 6-litre full flush, 3-litre half flush
• Internal overflow
• Easy to install
• The button is NOT fixed and can be moved and attached to furniture accordingly
• Water inlet is on the left-hand side
• Cable from the cistern to the button is 450mm
• Water-saving dual flush function

Guarantee: 5 years (seat guaranteed for 1 year)

Please Note: The unit is water-resistant but not waterproof. All spillages and splashes should be wiped dry. Failure to do so may shorten the product’s life expectancy and invalidate any guarantees.

All measurements are approximate, and product images may differ from the actual product.

Comprises:

Chatsworth W500 x D250mm Back to Wall WC Unit - Satin Graphite
Square Back To Wall Pan - Gloss White
Square Flush Plate - 70 x 70mm - Chrome
Dual Flush Concealed WC Cistern
Soft Close Top Fixing Toilet Seat
