Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve & Fast Fit Connections

Bristan Artisan Thermostatic Surface Mounted Bar Shower Valve & Fast Fit Connections - AR2-SHXVOFF-C

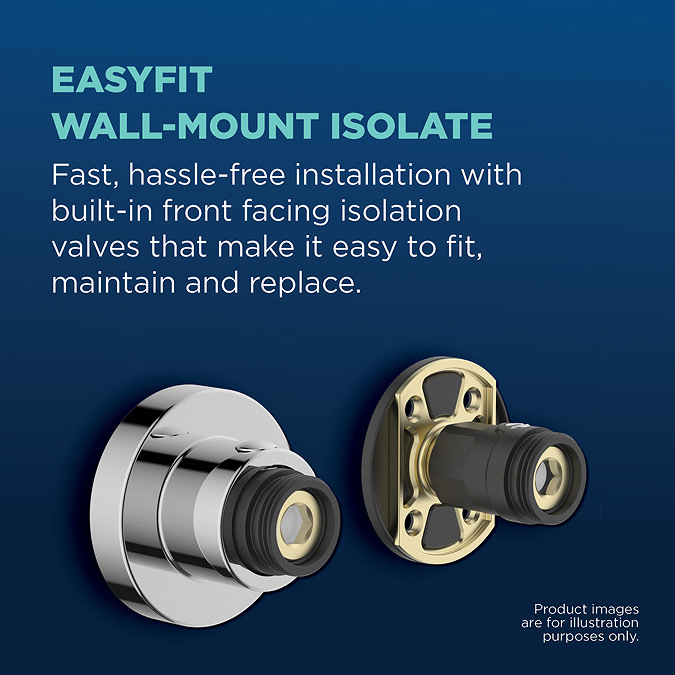

The Artisan surface mounted bar shower valve has a sleek and contemporary design with the added reassurance of thermostatic technology for family safety. It's flow control handle incorporates an eco button to save water, this can be overridden by the user. The valve comes supplied with a wall mount fixing kit for easy retro installation. WRAS and TMV2 approved for a higher level of performance and protection.

Product Details

• Product Code: AR2 SHXVOFF C
• Finish: Chrome
• Main Construction Material: Brass
• No of Controls: 2
• Shower Type: Bar Shower
• Cartridge Type: Thermostatic
• Maximum Hot Water Supply Temperature 80
• Maximum Static Pressure: (bar) 10
• Plumbing System Suitability: Suitable for all plumbing systems
• Working Pressure Range: Min: 0.2 bar, Max: 5 bar
• Connection Inlet: 15mm compression
• Connection Outlet: G1/2”
• Isolation valve included
• Check valve included
• WRAS and TMV2 approved

5 Year Guarantee

Flow Rates

0.2 Bar - 6.6 l/m
0.5 Bar - 10.8 l/m
1.0 Bar - 15.4 l/m
2.0 Bar - 17.7 l/m
3.0 Bar - 21.7 l/m
5.0 Bar - 34.3 l/m
