Arezzo Matt Black Complete Modern Bathroom Package (Including L-Shaped Bath)

Arezzo Matt Black Complete Modern Bathroom Package (Including L-Shaped Bath)

The Arezzo Matt Black complete modern bathroom package, which includes an L-shaped bath, provides everything you need to create a stylish contemporary bathroom in your home. It features a vanity unit, matt black taps with matching wastes, a ceramic toilet, a matt black thermostatic shower, and an L-shaped bath with a glass screen and acrylic panel.

This package is available in left or right-hand options. The optional bath end panel is sold separately.

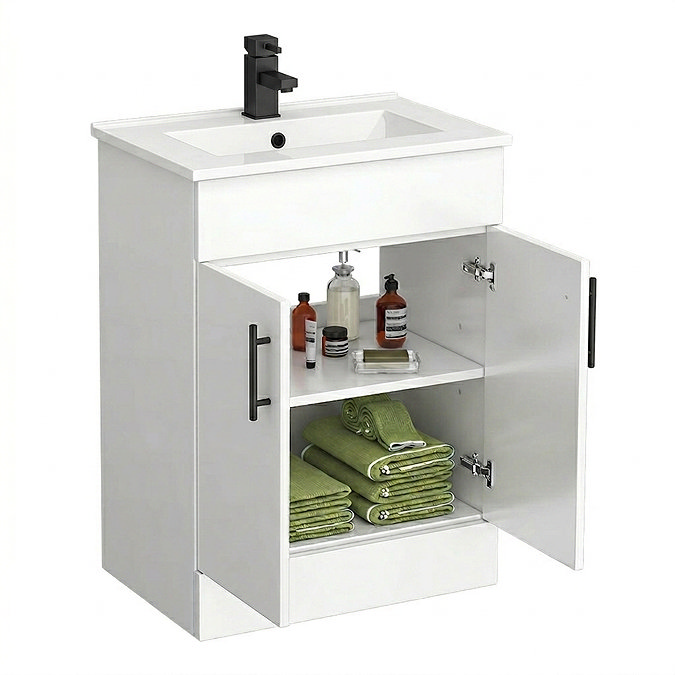

Vanity Details:

• Dimensions: Height: 825mm, Width: 620mm, Depth: 400mm
• Vanity unit with a high-quality ceramic basin top
• Tap Holes: 1
• Integral overflow (use a slotted basin waste)
• Chrome handles
• 2-Door
• Soft Closing Mechanisms
• Gloss white finish
• All units are supplied rigid - not flat packed
• Floor Standing Units must be fitted back to the wall through the backrail using a suitable fixing kit (not included).
• Basin - Tested in accordance with BS EN 14688:2015
• UKCA / CE Marked
• ISO9001:2015 Registered Manufacturer

Toilet Details:

• Dimensions: Height: 770mm, Width: 370mm, Depth: 600mm
• Height of Pan: 400mm
• Type: Close Coupled Toilet
• Material: Ceramic
• Colour/Finish: White Gloss
• Cistern has a button-operated, dual flush siphon

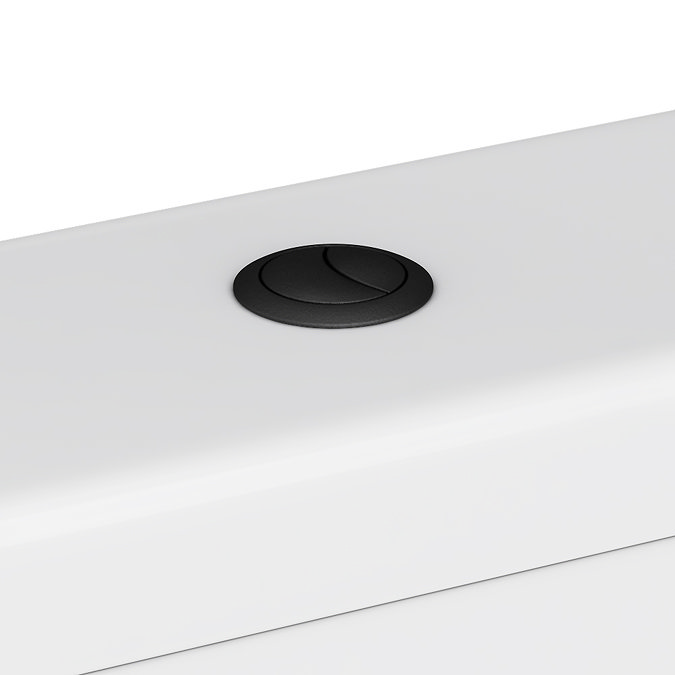

• Central, Dual chrome effect push-button flush (4/6ltr Flush)
• Waste pipe exits horizontally
• Includes a wrap-over quick-release soft-close seat and cover
• Water Inlet: Left or right-hand bottom

Bath Details:

• Dimensions: 1700mm x 700mm (855mm at the widest point)
• Type: L-Shaped Shower Bath
• Colour/Finish: Gloss White
• Material: Acrylic
• Comes with metal bath legs
• Supplied with a high-quality acrylic front panel
• No tap holes
• Tap holes have to be drilled by the customer

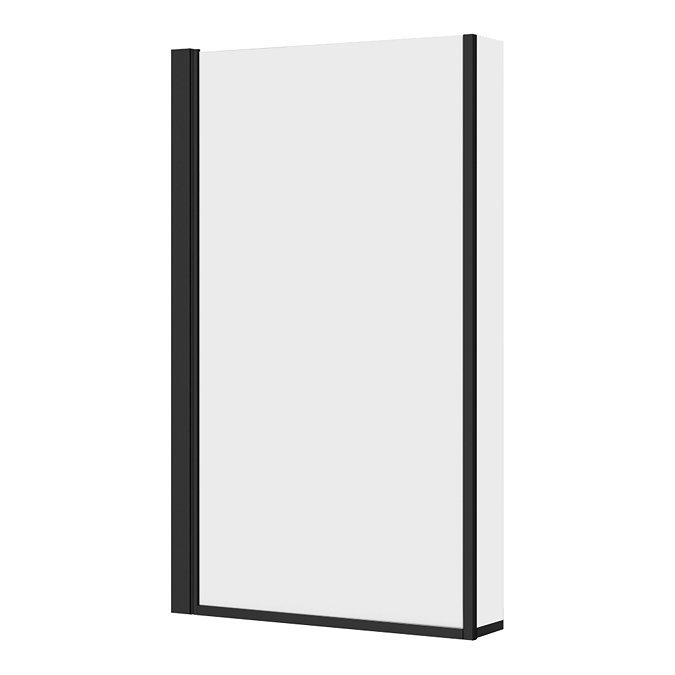

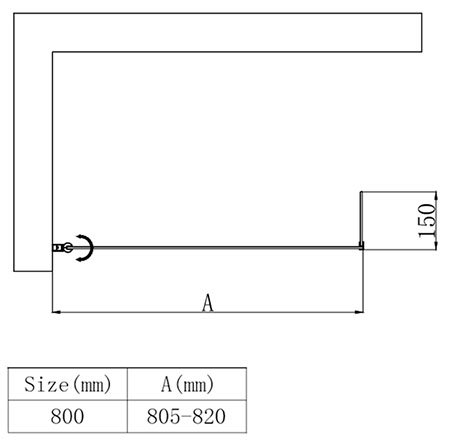

Bath Screen Details:

• Height: 1430mm
• Width: 795mm (Adjustment 780mm - 795mm)
• Polished chrome
• Reversible
• Hinged Screen with fixed return
• Metal caps
• 6mm toughened safety glass
• For use with square shower baths

Shower Details:

• Dimensions: Rigid riser height: 800-1180mm, Length of shower head arm: 320mm, Overhead shower head size: 200mm
• Finish: Powder Coating Matt Black
• Thermostatic shower, consisting of a round thermostatic bar valve and rigid riser kit with twin round shower heads
• Easy to divert water from the handset to the overhead drencher with the in-built diverter
• High-quality design and build
• Adjustable height
• Fixed Handset holder
• Latest ceramic disc technology
• Thermostatic shower system that eliminates the risk of scalding
• Working pressure between 0.5 to 5.0 bar
• Minimalistic shower system
• 1.5m Quality flexible hose
• Easy to clean rubber jets which are included on both the main shower head and handset
• Incorporating a diverter to control flow between the overhead and hand shower
• One fixed head and one shower handset
• Lightweight handset minimises the risk of damage to the bath and/or shower tray in case of accidental droppage
• Round thermostatic mixing valve of brass construction with a built-in diverter and matt black finish
• Rigid riser with matt black finish
• Easy installation
• 150mm between pipe inlet centres
• 15mm inlet feeds
• Hot water temperature 55 to 85 Degrees
• Should a pump be required, we recommend a universal or negative head pump
• Please note: Certain parts are plastic, not metal

Basin Tap Details:

• Dimensions: Overall Height: 185mm, Spout Height: 75mm, Projection from Centers: 125mm
• Colour: Matt Black
• Material: Solid Brass Body
• Type: Basin Mixer Tap
• Tap Head: Round Lever Design
• Style: Modern
• High-Quality Design and Build
• Easy Installation
• Deck Mounted
• Working Pressure: 0.5 Bar - 5 Bar
• Hot and Cold Indicators on Tap Head
• Connection Size: 15mm (1/2" BSP)

Bath Tap Details:

• Dimensions: Overall height: 135mm, Spout height: 47mm, Projection from centres: 110mm
• Colour: Matt Black
• Material: Solid Brass Body
• Type: Bath Filler
• Tap Head: Round Lever Design
• Style: Modern
• High-quality design and build
• Easy installation
• Deck Mounted
• Working Pressure: 0.5 Bar - 5 Bar
• Hot and cold indicators on tap head
• 180mm centres
• Connection Size: 3/4" BSP
• Tap base diameter: 50mm

Basin Waste Details:

• Diameter: 61mm
• Connection Size: 1 1/4"
• Slotted basin waste
• Manufactured to the Highest Standards
• Finish: Matt Black
• Sprung plug

Bath Waste Details:

• Waste Cap Diameter: 70mm
• Overflow Diameter: 84mm
• Waste Pipe Length: 630mm
• Colour/Finish: Matt Black
• Product Type: Easy clean bath waste
• Round design
• Easy to install
• Removable click clack waste
• Fitting Size: Standard 1 1/2 inch bath fitting
• Suitable for most standard baths

Please keep in mind that all measurements are approximate, and the images provided serve as illustrative representations.

During installation, protect the connection parts of the shower with a soft material such as cloth, or use rubber-lined grips, before tightening.

Guarantee: 5 Year (2-year guarantee on coloured finish, toilet seat guaranteed for 1 year)

The end panel is sold separately.

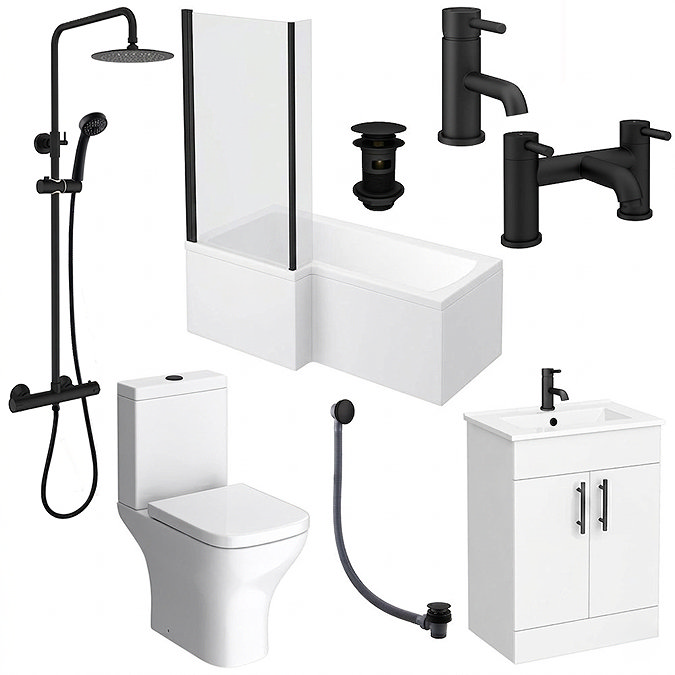

Components (included in the suite):

(1) Turin 620 Gloss White Vanity Sink With Cabinet
(1) Venice Modern Toilet + Soft Close Seat
(1) 1700 L-Shaped Square Shower Bath
(1) 1700 L-Shaped Acrylic Front Panel
(1) Hinged Glass Bath Screen
(1) Arezzo Matt Black Modern Round Thermostatic Shower
(1) Arezzo Matt Black Single Lever Basin Tap
(1) Arezzo Matt Black Bath Filler Tap
(1) Arezzo Matt Black Easy Clean Click Clack Bath Waste with Overflow
(1) Arezzo Matt Black Slotted Click Clack Basin Waste
