Arezzo Matt Black Complete Modern Bathroom Package 1600 x 700 Bath

Arezzo Matt Black Complete Modern Bathroom Package with Standard Shower Bath

The Arezzo Matt Black complete modern bathroom package includes everything you need for creating a stylish contemporary bathroom in your home. Featuring a vanity unit, matt black taps with matching wastes, ceramic toilet, matt black thermostatic shower, bath with glass screen and acrylic panel.

Bath available in various sizes.

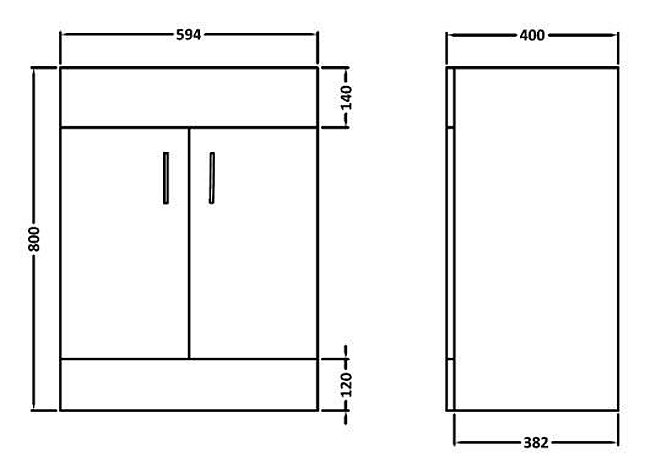

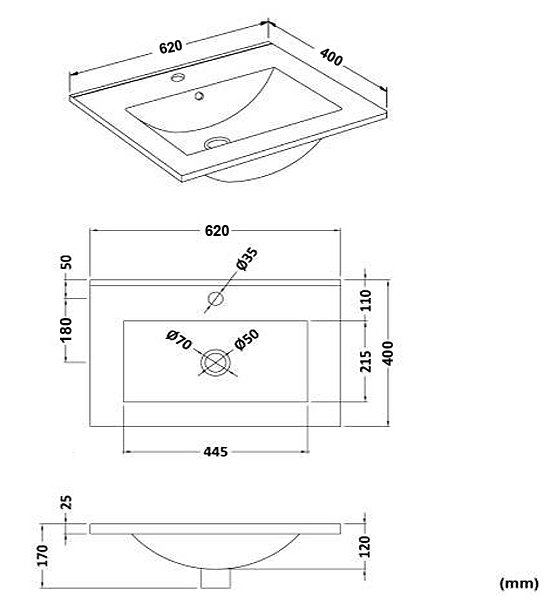

Vanity Details:

• Dimensions: Height: 825mm, Width: 620mm, Depth: 400mm
• Vanity unit with quality ceramic basin top
• Tap Holes: 1
• Integral overflow (use slotted basin waste)
• Chrome handles
• 2-Door
• Soft Closing Mechanisms
• Gloss white finish
• All units supplied rigid - not flat packed
• Floor Standing Units must be fitted back to wall through the backrail using suitable fixing kit (not included).
• Basin - Tested in accordance with BS EN 14688:2015
  UKCA / CE Marked
  ISO9001:2015 Registered Manufacturer

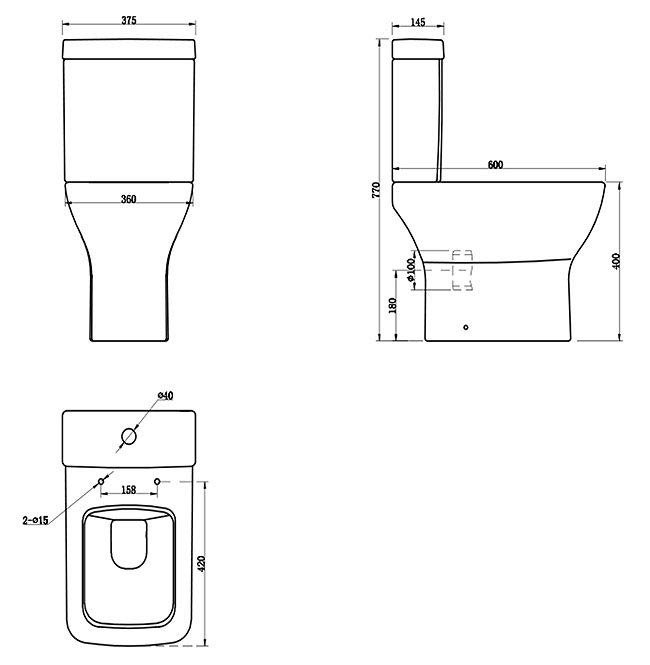

Toilet Details:

• Dimensions: Height: 770mm, Width: 370mm, Depth: 600mm, Height of Pan: 400mm
• Type: Close Coupled Toilet
• Material: Ceramic
• Colour/Finish: White Gloss
• Cistern has button operated, dual flush siphon
• Central, Dual chrome effect push-button flush (4/6ltr Flush)
• Waste pipe exits horizontally
• Includes wrap over quick release soft-close seat and cover
• Water Inlet: Left or right hand bottom

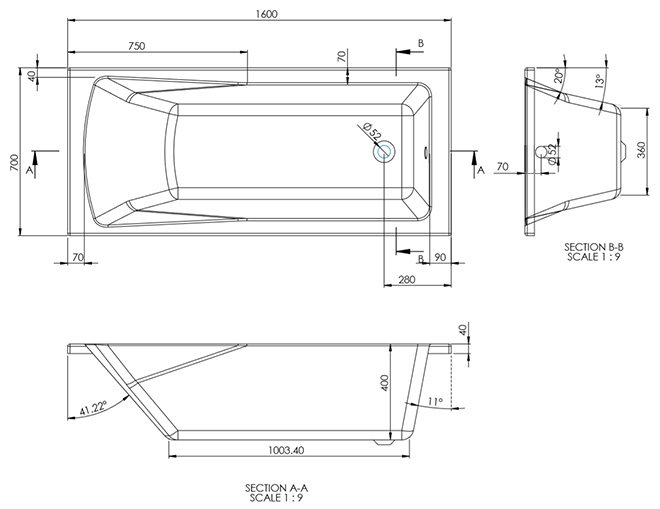

Bath Details:

• Size: Various
• Product Type: Single Ended Bath
• Material: Acrylic
• Material Thickness: 4mm
• Finish: Gloss White
• Tap Holes: 0
• Supplied with Leg Set
• Tap mounting - End of bath (above overflow)
• Bath will have a protective plastic film which should be removed once installed
• Please be aware that any tap holes have to be drilled by the customer.

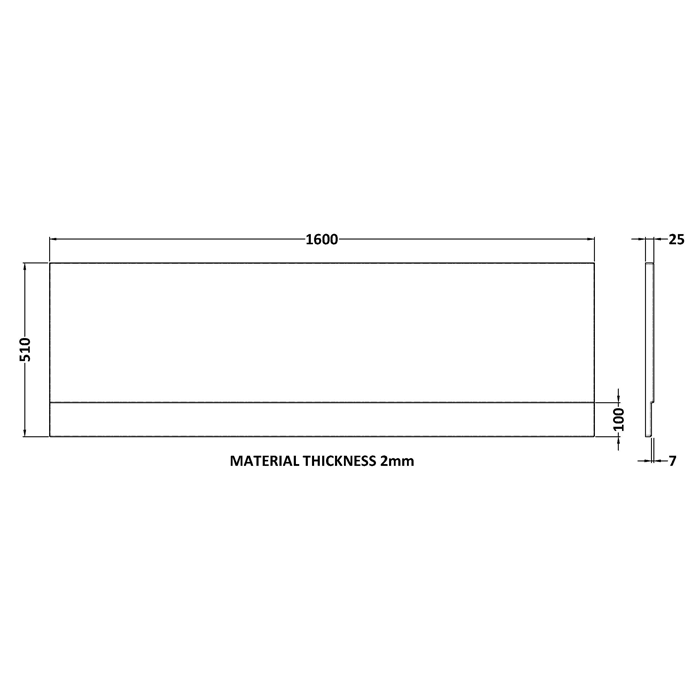

Front Panel Details:

• Size: Various
• Height: 510mm
• Material: Acrylic
• Finish: Gloss White
• Water Resistant
• Front bath panel has lip design
• Panel clips sold separately

Bath Screen Details:

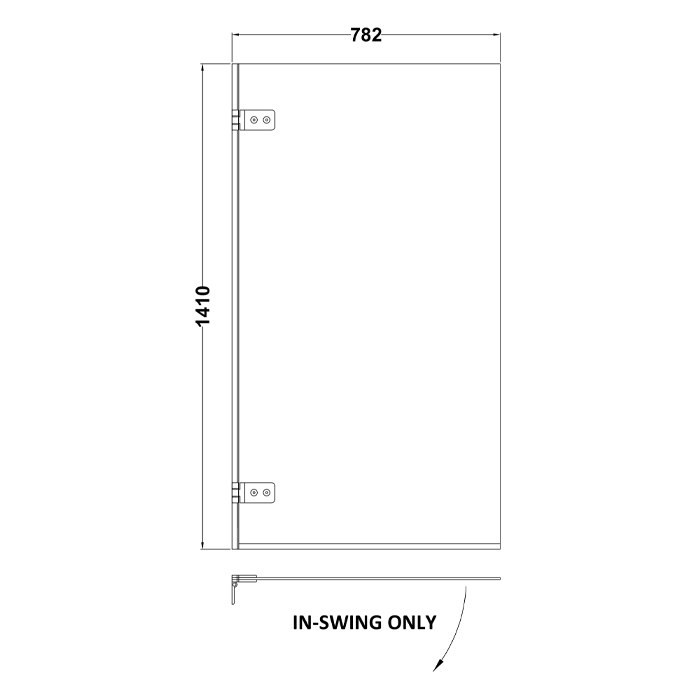

• Dimensions: Width: 782mm, Height: 1410mm
• Type: Square Bath Screen
• Satin chrome hinges
• Reversible
• Hinges from the wall
• 5mm toughened safety glass

Shower Details:

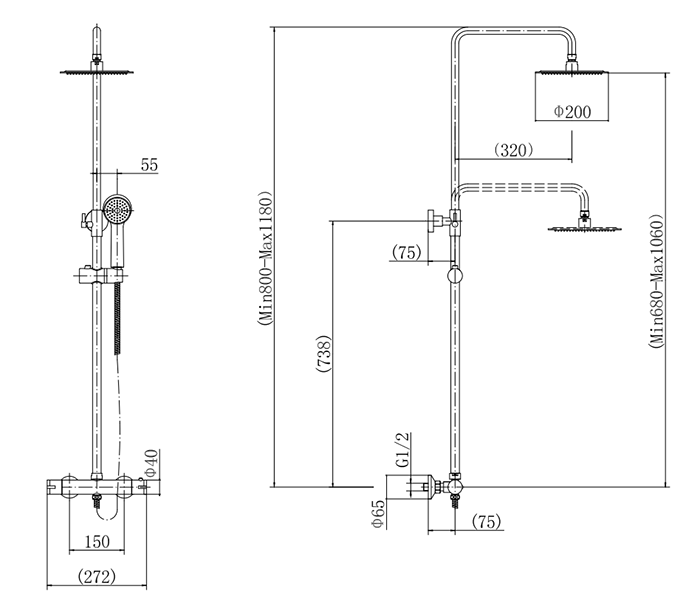

• Dimensions: Rigid riser height: 800-1180mm, Length of shower head arm: 320mm, Overhead shower head size: 200mm
• Finish: Powder Coating Matt Black
• Thermostatic shower, consisting of a round thermostatic bar valve and rigid riser kit with twin round shower heads
• Easy to divert water from handset to overhead drencher with in-built diverter
• High-quality design and build
• Adjustable height
• Fixed Handset holder
• Latest ceramic disc technology
• Thermostatic shower system that eliminates the risk of scalding
• Working pressure between 0.5 to 5.0 bar
• Minimalistic shower system
• 1.5m Quality flexible hose
• Easy to clean rubber jets included on both the main shower head and handset
• Incorporating diverter to control flow between overhead to hand shower
• One fixed head and one shower handset
• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage
• Round thermostatic mixing valve of brass construction with built-in diverter and matt black finish
• Rigid riser with matt black finish
• Easy installation
• 150mm between pipe inlet centres
• 15mm inlet feeds
• Hot water temperature 55 to 85 Degrees
• Certain parts are plastic, not metal
• Should a pump be required, we recommend a universal or negative head pump
• During installation, protect the connection parts of the shower with a soft material such as cloth, or use rubber-lined grips, before tightening.

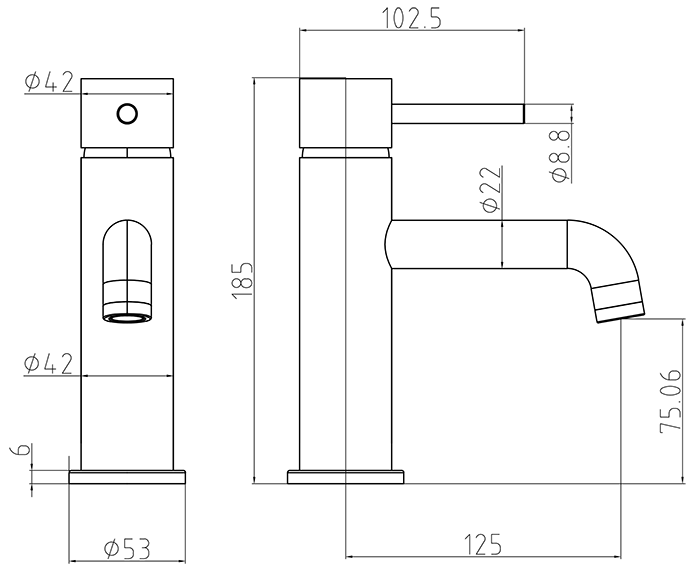

Basin Tap Details:

• Dimensions: Overall Height: 185mm, Spout Height: 75mm, Projection from Centers: 125mm
• Color: Matt Black
• Material: Solid Brass Body
• Type: Basin Mixer Tap
• Tap Head: Round Lever Design
• Style: Modern
• High-Quality Design and Build
• Easy Installation
• Deck Mounted
• Working Pressure: 0.5 Bar - 5 Bar
• Hot and Cold Indicators on Tap Head
• Pipe Size: 15mm (1/2" BSP)

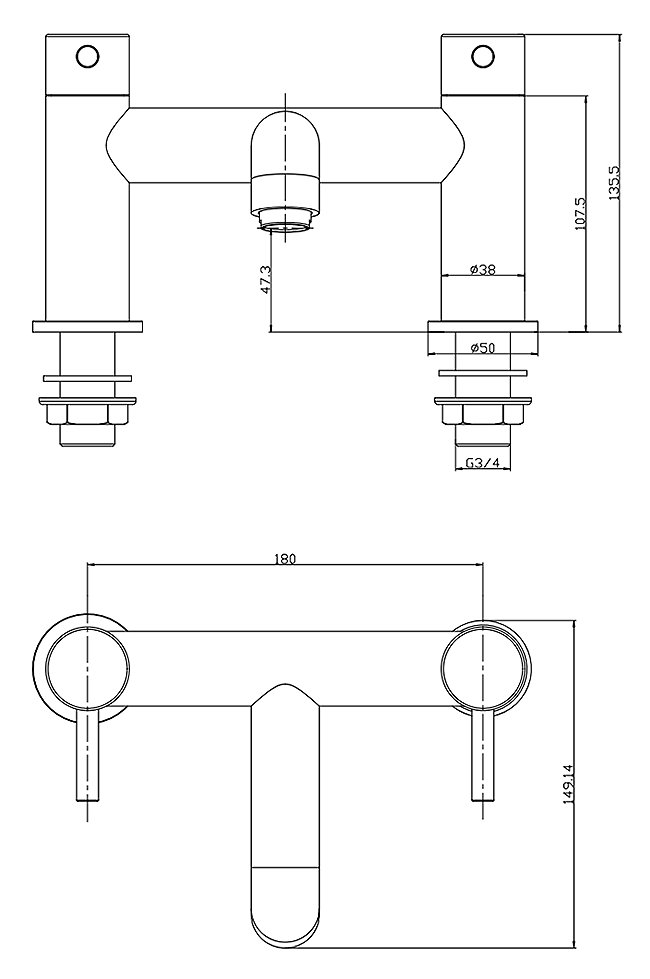

Bath Tap Details:

• Dimensions: Overall height: 135mm, Spout height: 47mm, Projection from centres: 110mm
• Colour: Matt Black
• Material: Solid Brass Body
• Type: Bath Filler
• Tap Head: Round Lever Design
• Style: Modern
• High-quality design and build
• Easy installation
• Deck Mounted
• Working Pressure: 0.5 Bar - 5 Bar
• Hot and cold indicators on tap head
• 180mm centres
• Connection Size: 3/4" BSP
• Tap base diameter: 50mm

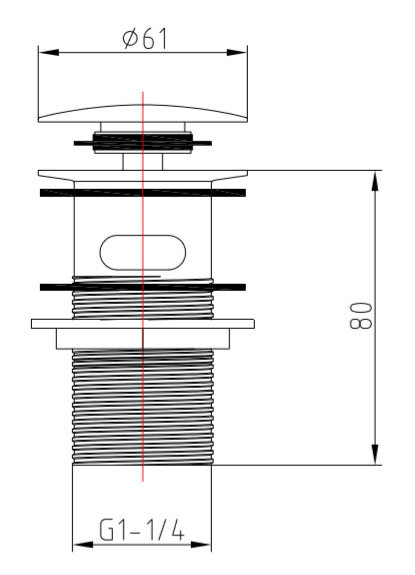

Basin Waste Details:

• Diameter: 61mm
• Connection Size: 1 1/4"
• Slotted basin waste
• Manufactured to the Highest Standards
• Finish: Matt Black
• Sprung plug

Bath Waste Details:

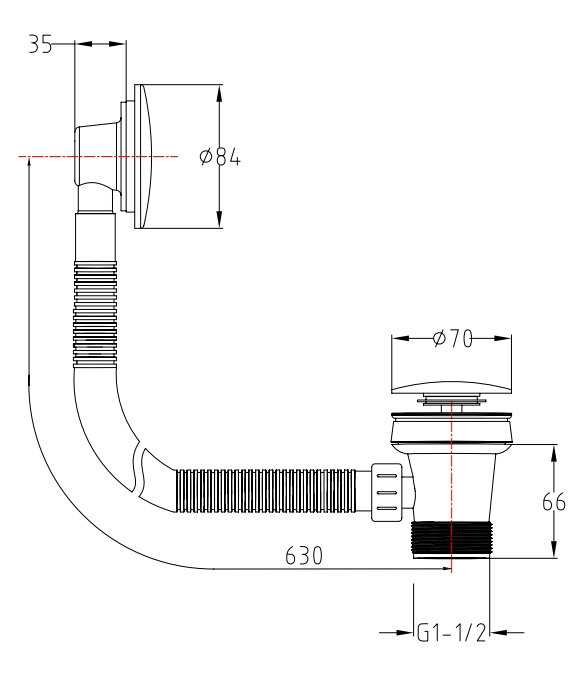

• Dimensions: Waste Cap Diameter: 70mm, Overflow Diameter: 84mm, Waste Pipe Length: 630mm
• Colour/Finish: Matt Black
• Product Type: Easy clean bath waste
• Round design
• Easy to install
• Removable click clack waste
• Fitting Size: Standard 1 1/2 inch bath fitting
• Suitable for most standard baths

All images are for illustration purposes only and all measurements are approximate.

Guarantee: 5 Year (2 year guarantee on coloured finish, toilet seat guaranteed for 1 year)

End panel sold separately

Components (included in the suite):

(1) 620 Gloss White Vanity Sink With Cabinet
(1) Modern Toilet + Soft Close Seat
(1) Single Ended Square Bath
(1) Acrylic Front Panel
(1) Hinged Square Glass Bath Screen
(1) Arezzo Matt Black Modern Round Thermostatic Shower
(1) Arezzo Matt Black Single Lever Basin Tap
(1) Arezzo Matt Black Bath Filler Tap
(1) Arezzo Matt Black Easy Clean Click Clack Bath Waste with Overflow
(1) Arezzo Matt Black Slotted Click Clack Basin Waste
