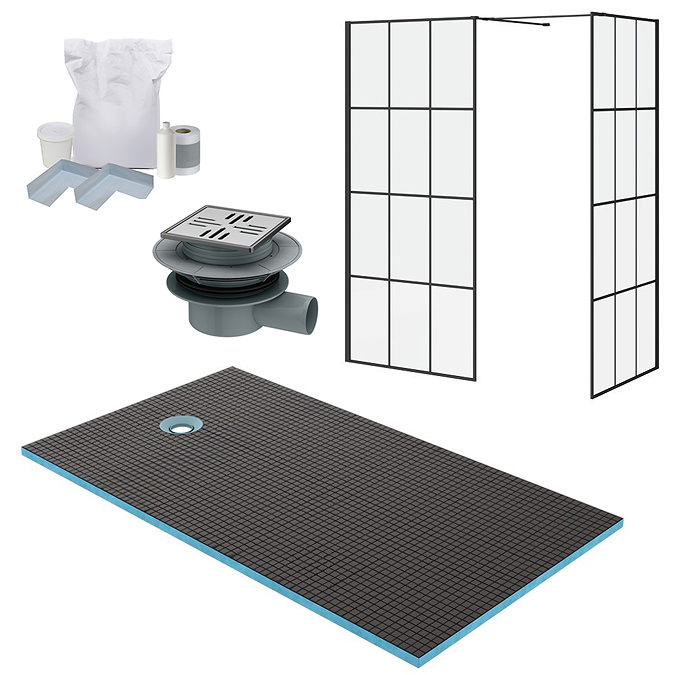

Arezzo 1600 x 900 Wetroom Enclosure Pack (Matt Black Grid)

Arezzo 1600 x 900 Wet Room Enclosure Pack - Matt Black Profile and Grid (900mm Screen, 900mm Side Panel, Tray Former, Waste and Installation Kit)

Elevate your bathroom with the Arezzo 1600 x 900 Matt Black Grid Wet Room Pack. This stylish package, featuring a matt black profile, includes all the essentials for a sleek wet room installation.

Ideal for Modern Wet Rooms, This Package Features:

• Contemporary Design: 8mm-thick glass screens with a digitally printed black grid pattern and a matt black profile.
• Complete Kit: Includes a 900mm main screen, 900mm side panel, tray former, high flow shower waste, and installation kit.
• Tray Former: Suitable for UK timber floors with correct gradients for effective wastewater discharge. Tileable to suit your style.
• High Flow Shower Waste: Screw-lock design with a 40 litres per minute flow rate and a square grate (various colours available).
• Easy Installation: Comes with a 2” x 1.5" Waste Pipe Reducer (Code: TSG1-REDUCER) included.

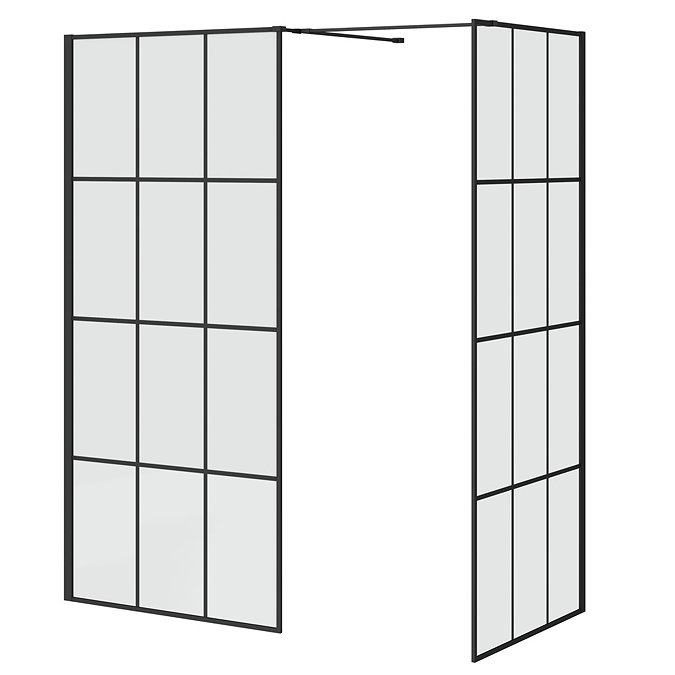

Glass Screen Details:

• Height: 1950mm
• Main Screen Width: 900mm
• Adjustment: 880-890mm
• Side Panel Width: 900mm
• Adjustment: 880-890mm
• Profile: Matt Black Aluminium
• Design: Digitally printed black grid pattern, Frameless
• Material: 8mm Toughened Safety Glass - Stronger and safer for your peace of mind
• Support Bar: Comes with a matt black square 1000mm stainless steel support bar (trim to size)
• Guarantee: 2 Years
• Certification: Tested and Certified BS EN 14428 Shower Enclosures, UKCA / CE Marked, ISO9001:2015 Registered Manufacturer

Tray Former Details:

• Shape: Rectangular
• Material: XPS foam core, reinforced with fiberglass and coated with cement mortar
• Waste Position: End centre
• Compatibility: Can be used on timber floors
• Features: Waterproof coated, ready for tiling, lightweight and insulated, can be tiled with any size tiles, suitable for level access installation, factory sealed drain, can be trimmed down (max. 100mm), suitable for domestic and commercial use, easy to install
• Note: This shower tray former is designed to be tiled over. It is not suitable for use with vinyl flooring.

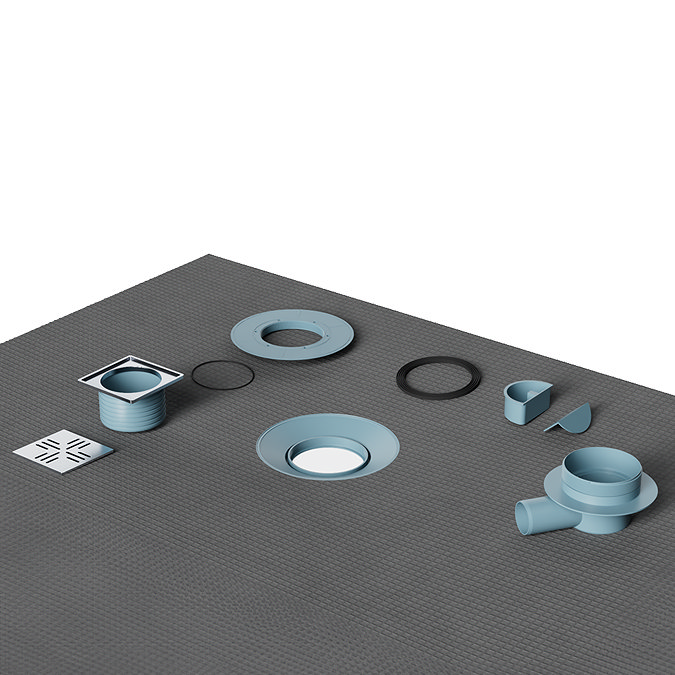

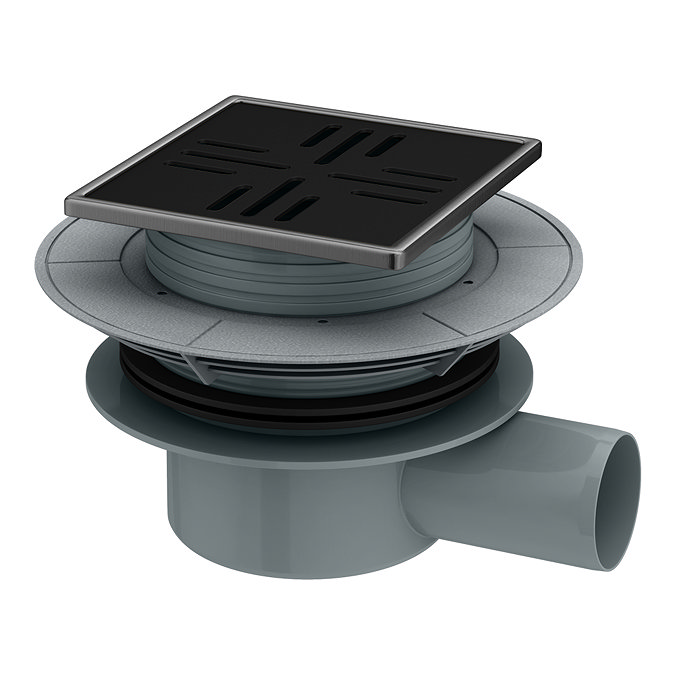

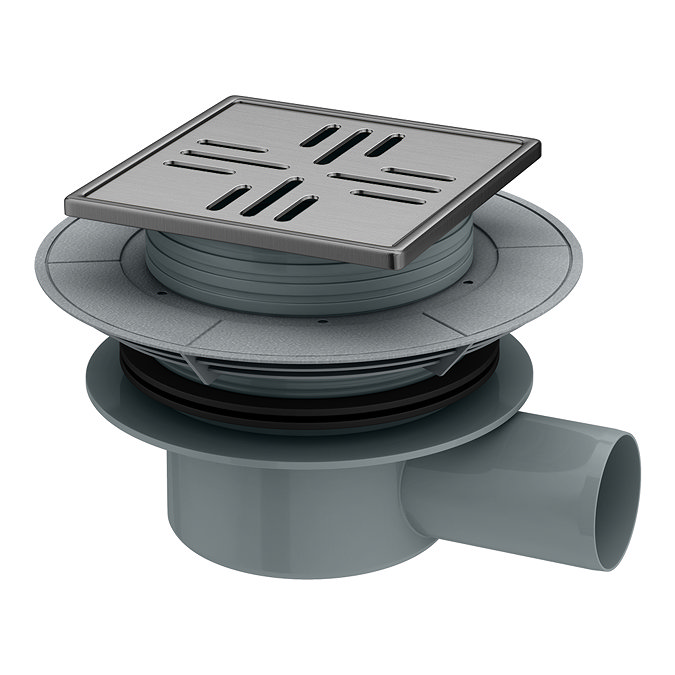

Square Shower Waste + Wetroom Installation Kit Details:

• Compatibility: Required for use with all tray formers and substrates
• Contents: Complete installation kit
• Square Drain Cover Plate Size: 110mm

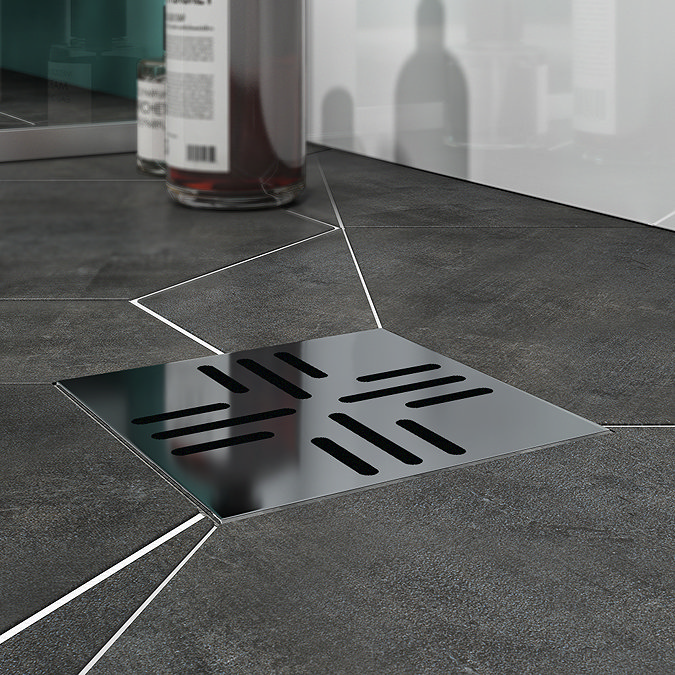

• Cover Plate Finish: Slotted grid square cover plate available in various colours
• Waste System: Screw lock
• Installation: Easy to install
• Supplied with: 2” x 1.5" waste pipe reducer



Please Note:
This product is accompanied by a 15-year guarantee, with a 2-year guarantee specifically for the glass screen and shower waste.
All images are solely for illustrative purposes and all measurements provided are approximate.

Package Comprises Of:

900mm Matt Black Grid Main Screen with Matt Black Profile and Support Arm
900mm Matt Black Grid Side Panel Screen with Matt Black Profile and Support Arm
Wetroom Rectangular Shower Tray Former (End Centre Waste)
Square Tray Waste Kit
110mm Stainless Steel Square Grid Cover
5kg Fixing Adhesive
5m Waterproofing Tape
Two Internal Corners
250ml Wood Floor Primer
500ml Tanking Membrane

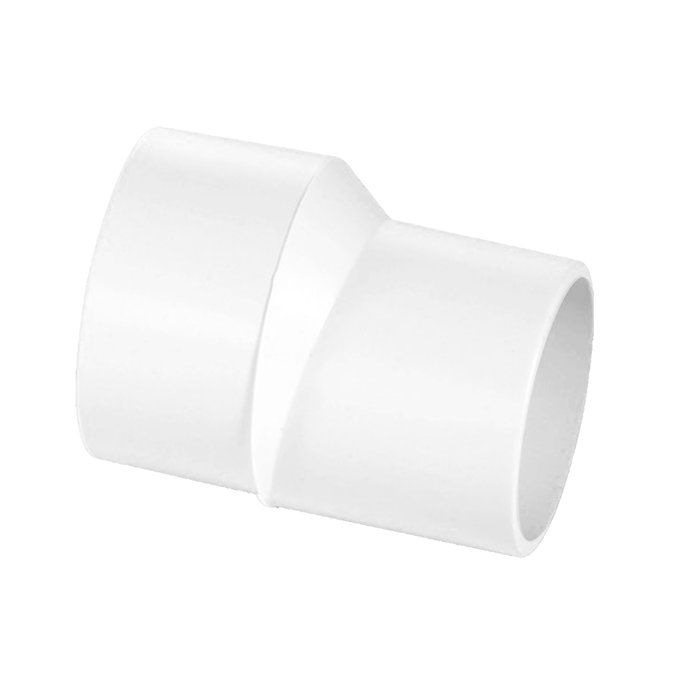

2” x 1.5" Waste Pipe Reducer
