AQUAS Reva Flex Smart 9.5KW Electric Shower - Brushed Brass

AQUAS Reva Flex Smart 9.5KW Electric Shower in Brushed Brass

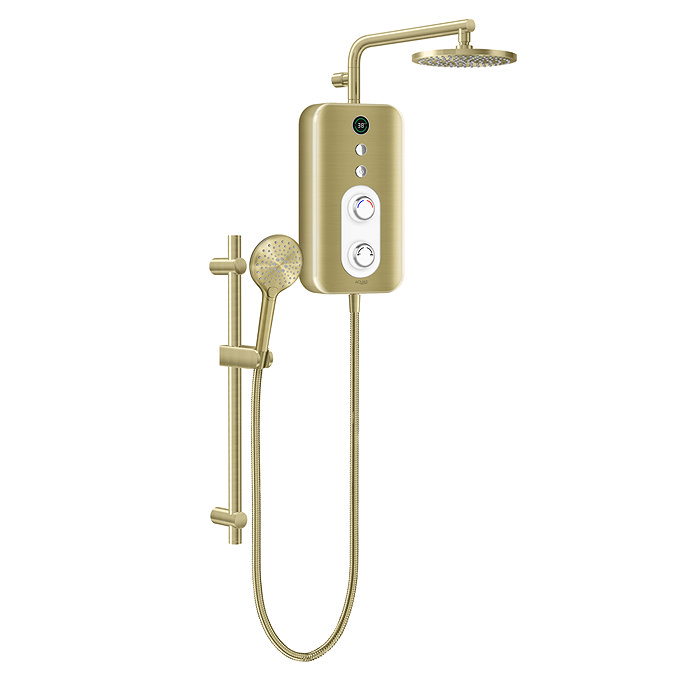

The all-new AQUAS REVA 9.5KW Flex Smart Electric Shower is a retrofit model that fits most current installations. It replaces single outlet showers and adds the choice of both an overhead shower and a handheld option.

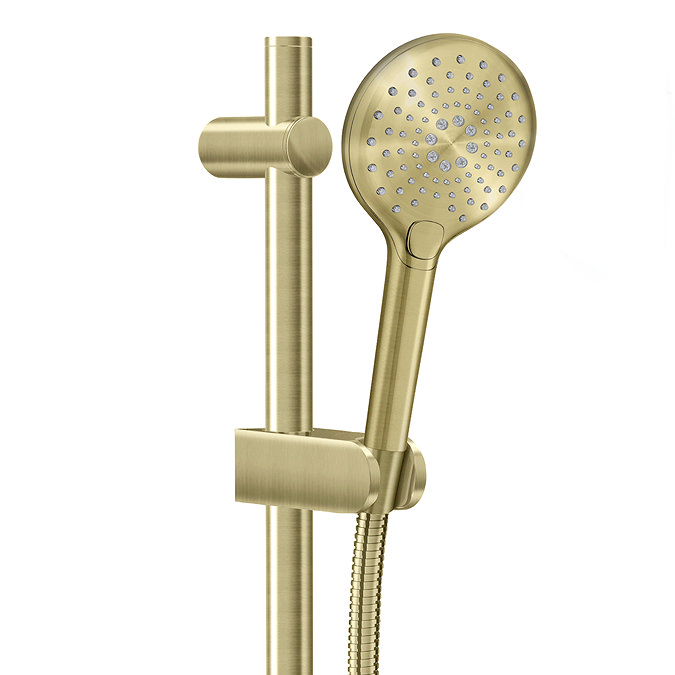

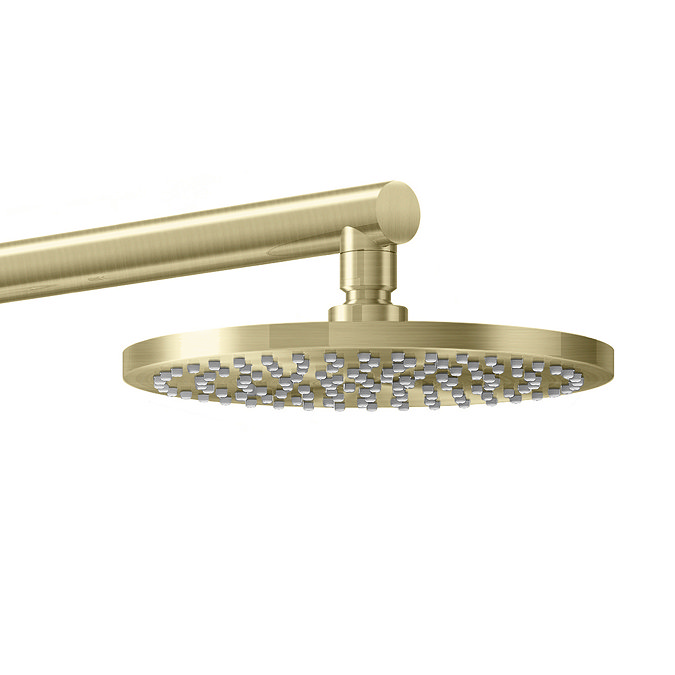

The 200mm overhead showerhead features spray outlet nozzles that are easy to clean and made from state-of-the-art materials for precise spray delivery. The Vento 120 3F hand shower complements electric setups perfectly, offering three spray combinations with liquid silicone nozzles optimised for flow. A push-button function makes switching patterns effortless.

Easily toggle between fixed and handheld showerheads using the intuitive control unit. For eco-conscious users, a reduced power setting allows for 5KW operation without compromising the invigorating shower experience.

Key Features:

• Two-Way Divertor: Ceramic valve for seamless switch between overhead and hand shower
• Extended Reach: Extra-long 400mm+ shower arm positions the head further from the wall
• Dual Power Settings:
• 9.5KW for cooler seasons – full moon icon
• ECO 5KW for warmer seasons – half moon icon
• Power setting stays locked after restart for convenience
• Before activating 9.5KW mode, set volume control to full cold

Product Details:

• Range: REVA
• Model Name: REVA FLEX SMART
• Colour/Finish: Brushed Brass / White
• Hand Shower:
• Vento 120mm diameter
• 124 liquid silicone nozzles
• 3 spray patterns with push-button control
• Overhead Shower: SMART 200mm with silicone nozzles
• Slidebar:
• 600mm rail with front-load slider
• Adjustable bracket spacing
• Shower Hose: Brushed Brass 1.5m, ½" x ½" twist-free and non-conductive
• Shower Arm: 400mm with adjustable mounting
• Technical Specification:
• Power Rating: 9.5KW
• Minimum Flow Required: 1.0 Bar
• Temperature Control: Integrated temperature and flow stabilizer
• Tank: Fibre-reinforced – energy efficient, limescale-resistant, and burst-resistant

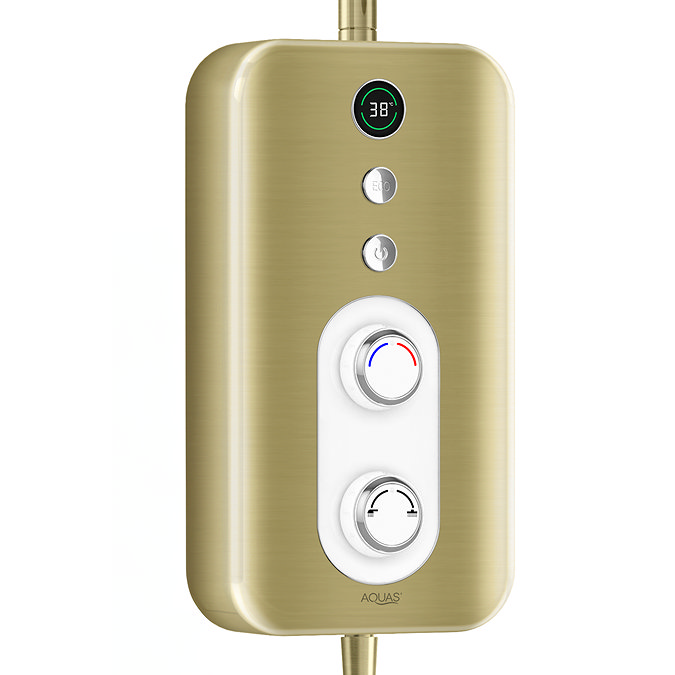

• Controls:
• Start/Stop button
• Enlarged "Super Grip" temperature dial for better adjustability
• Ceramic divertor

Installation:

• Electrical and water connections from 6 positions: Side left, Side right, Bottom left, Bottom right, Rear left, Rear right
• Suitable for left or right-hand installations
• Compatible with standard UK plumbing fittings
• Outlet connection: ½" compression and push-fit
• Power Input: 240V with 40A MCB circuit breaker
• Min Dynamic Pressure: 1.0 BAR
• Max Static Pressure: 5.0 BAR
• Should you require the showerhead higher use extensions 150mm/300mm avaiable

Additional Info:

Approvals: BEAB certified (UK)
Warranty: 2 Years
Images: For illustrative purposes only
Gravity-Fed Systems: Not recommended without compatible pump systems. Designed for direct mains feed.
