AQUAS AquaMax Top Manual Smart 9.5KW White Electric Shower
Part No:A000273
Discontinued
Product Information

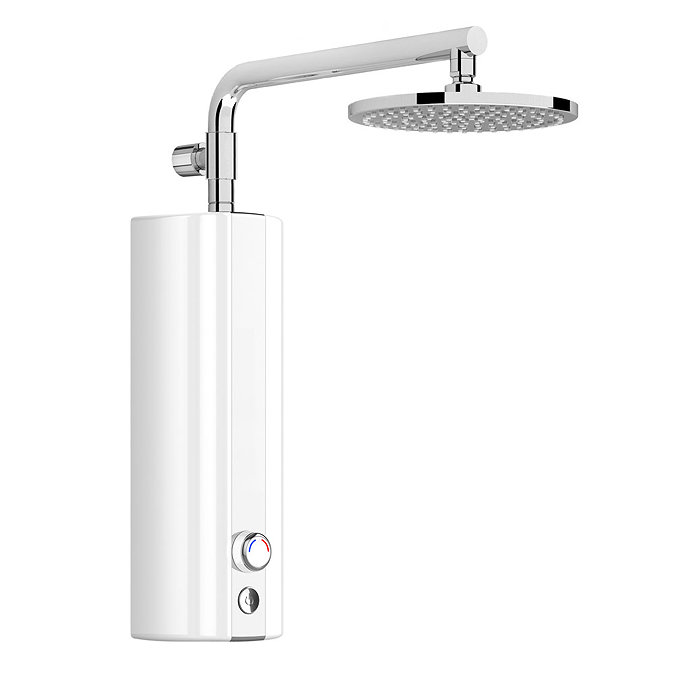

AQUAS AquaMax Top Manual Smart 9.5KW White Electric Shower
The stylish AQUAMAX TOP Shower is equipped with a Smart 200mm overhead shower and an easy to use control unit. On/Off then set your temperature. There is a built-in pressure balance for a steady temperature.
Longer Reach
Extra long 400mm+ reach extending the shower head out further from the wall
Product Details
Frequently Asked Questions
https://aquasshower.co.uk/en/customer-care/question-and-answers
Warranty: 2 years
The stylish AQUAMAX TOP Shower is equipped with a Smart 200mm overhead shower and an easy to use control unit. On/Off then set your temperature. There is a built-in pressure balance for a steady temperature.
Longer Reach
Extra long 400mm+ reach extending the shower head out further from the wall
Product Details
- Range: AQUAMAX
- Name: Top Manual SMART
- Colour: Gloss White Face / Chrome Body
- Overhead shower: SMART 200mm Rainshower
- Shower arm 400mm with free fixation
- Power Rating: 9.5kw
- Minimum Flow required: 1.0 Bar
- Temperature control:
- Electricity leakage safety
- High pressure protection
- Temperature and flow stabilizer
- Advantages:
- Fiber reinforced Tank - less limescale, extended life, energy efficient, burst resistant
- Controls:
- Start/Stop button
- Easy Grip - temperature control
- Installation:
- Electrical connection
- Water entry points right - top, bottom, back
- All indulge and AQUAMAX models have a water connection that is suitable for a "right" only water supply connection.
- The water connection pipe is not reversible.
- Use standard UK plumbing connections - compression - Push fit.
- Cable entry points left hand side - top, bottom, back : right hand side - top, bottom, back
- Outlet connection 1/2" compression and pushfit 1/2"
- Power Input:
- A Power Input of 240 V and 40 amp circuit breaker is required for max output ( 9.5 KW ) anything less and the heater will not operate at max efficiency
- Min-Max Working Pressure:
- A Min Dynamic flow pressure of 100 K /Pa ( 15 ib / Sq In ) - 1.0 BAR is required
- A Max Static pressure of 1000 K /Pa ( 150 ib / Sq In ) - 10.0 BAR should not be exceeded
- Approvals: BEAB, CE; ROHS
Frequently Asked Questions
https://aquasshower.co.uk/en/customer-care/question-and-answers
Warranty: 2 years
