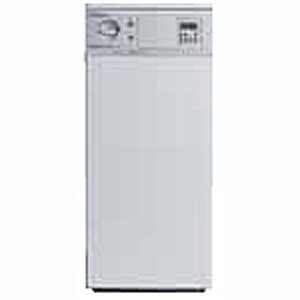

Worcester-Regular-Greenstar Camray 25-32
Part No:7716100107
Discontinued
Product Information
The Worcester Greenstar Camray 25/32 floor standing Regular Oil Boiler is part of the Worcester Greenstar Camray market-leading range of energy-saving condensing oil-fired boilers from Worcester. The Worcester Greenstar Camray 25/32 is designed to provide energy-efficient heating and hot water with very less effect on the environment. The Greenstar Camray 18/25 employs advanced heat exchanger technology to re-use heat energy from the exhaust or waste gases produced. At least 93% of the oil consumed by a Greenstar Camray condensing regular boiler is converted into heat for the heating and/or hot water system.Greenstar Camray 25/32 can reduce heating and hot water bills by between 5-10%. The boiler is typically suitable for installation in a medium-sized family home.
Pick up only NO DELIVERY - you must make arrangements to pick item up.
Key Features:
-
SEDBUK(Seasonal Efficiency of Domestic Boilers in the UK) A Rated – environmentally friendly
-
Compatible with Greenskies solar water heating
-
18kW, 25kW and 30kW outputs
-
Robust quality manufacture – excellence comes as standard
-
Optional fascia mounted 7 day programmer – reduced wiring
-
Oil isolation valve
-
5 year warranty (subject to condition)
Specification:
| Title | Value |
|---|---|
| Height (mm) | 855mm |
| Width (mm) | 370mm |
| Depth (mm) | 600mm |
| Weight | 108kg |
| SEDBUK Value/band | 94.2% Band A |
| Solar compatible | Yes |
| Burner | Riello RDB 2.2 |
| Optional plug-in twin channel digital controls | Yes |
| Minimum diameter flue CF | 130 |
| Minimum diameter flue RS | 80/125, 100/150 |
| Primary vent | 1¼ inch BSP |
| Primary cold feed | 3/4 inch BSP |
| Heating flow and return connections | 1¼ inch BSP, 28mm |
| Condensate connection | 21.5 |
| Condensate trap | Accessory kit supplied |
| Oil connection | 10 |
| Max. primary static head | 30 |
| Min. primary static head | 1 |
| Primary water content | 21 |
| NOx classification | Class 3 |
| Water side resistance 20°C | 69 |
| Exhaust flue gas mass flow | 51 |
| Control thermostat range | 55/81 |
| Power consumption | 160 |
| Ingress protection rating | IP20 |
| Flue reset overheat thermostat (cut out) (°C) | 110 |
| Boiler manual reset overheat thermostat (cut out) | 105 |
| Boiler high limit thermostat (cut out) (°C) | 95 |
| Max. horizontal flue RS 80/125 (mm) | 4,000 |
| Max. vertical flue RS 80/125 (mm) | 8,000 |
| Maximum hearth temperature | <100 |
| Power supply | 230V, 50Hz |
