Warmup Ultralight Underfloor Heating Insulation Board

Warmup Ultralight Underfloor Heating Insulation Board

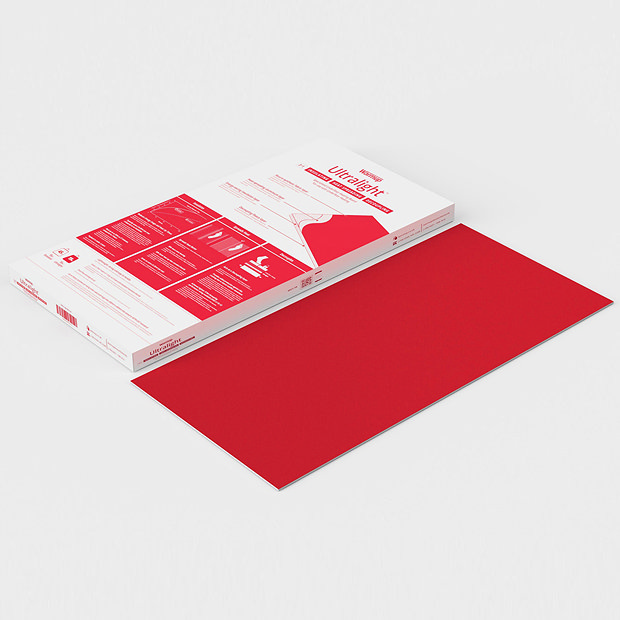

Warmup Ultralight Insulation Board is a specialised composite board designed for floor heating applications. Manufactured as flat, flexible sheets they are water and mould-resistant. The top surface incorporates a heat spreading aluminium layer combined with non-woven fleece. The core of PEF insulation provides thermal separation from the floor beneath, ensuring a rapid thermal response of a heated layer of tiles or levelling compound above. The rapid thermal response promoted by the PEF insulation and diffusion layer allows the flooring to heat up and cool down faster, resulting in a more energy efficient and comfortable heated floor, consuming up to 12% less energy compared to systems using traditional insulation. The base layer of non-woven fleece functions as a high performance anti-fracture membrane for tile and stone floor coverings. It also facilitates a high-strength mechanical bond making high-quality installations robust and repeatable.

Product Details

• Board Dimensions - 1200 x 800 x 6mm
• Insulating - High density insulating core

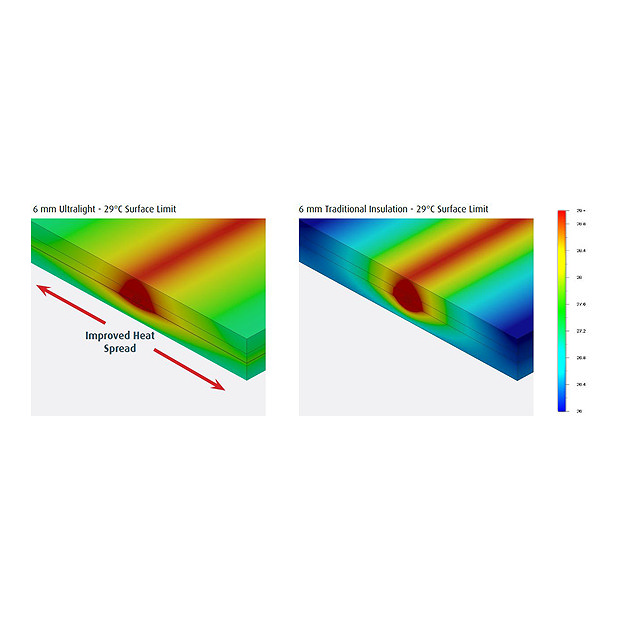

• Heat Spreading - Aluminium layer for faster, more even, heat spread
• Decoupling Performance - Tested to ANSI standards and rated as HIGH
• Sound Reducing - Tested and rated by Intertek for acoustic performance
• Lighter - ⅓ lighter than XPS insulation board (per m²)
• Dust Free - Less dust means less mess
• Coverage - 1200 mm x 800mm, total coverage is 0.96m², which means less boards and less joints
• Easier to Cut - No cement skin, so easier to cut with a Stanley knife
• More Robust - Less susceptible to damage during transit and when handling
