Voyage Tall WC Toilet Unit with Concealed Cistern Frame, Wall Hung Pan & Brushed Brass Flush Plate - Arctic White

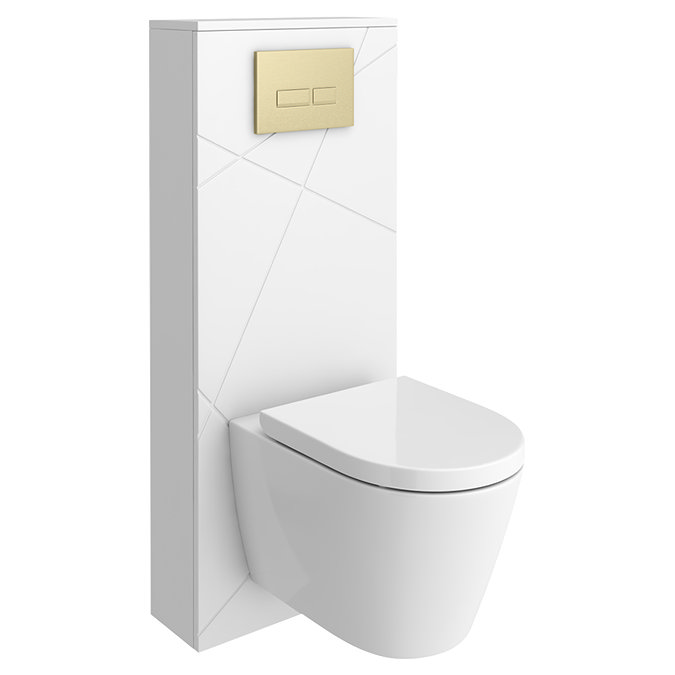

Voyage Tall Back to Wall WC Toilet Unit - 1200mm High with Cistern Frame, Brushed Brass Flush Plate & Wall Hung Pan - Arctic White

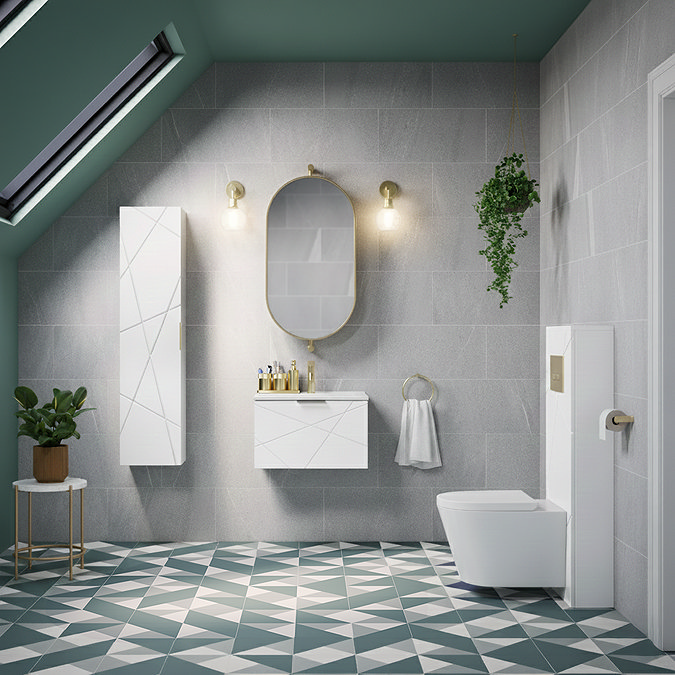

The sleek and modern Voyage Tall Back to Wall WC Unit stands at 1200mm high and features a concealed cistern frame, a brushed brass flush plate, and a stylish wall-hung pan. Finished in elegant arctic white, this unit is a perfect addition to any contemporary bathroom, combining functionality with minimalist design.

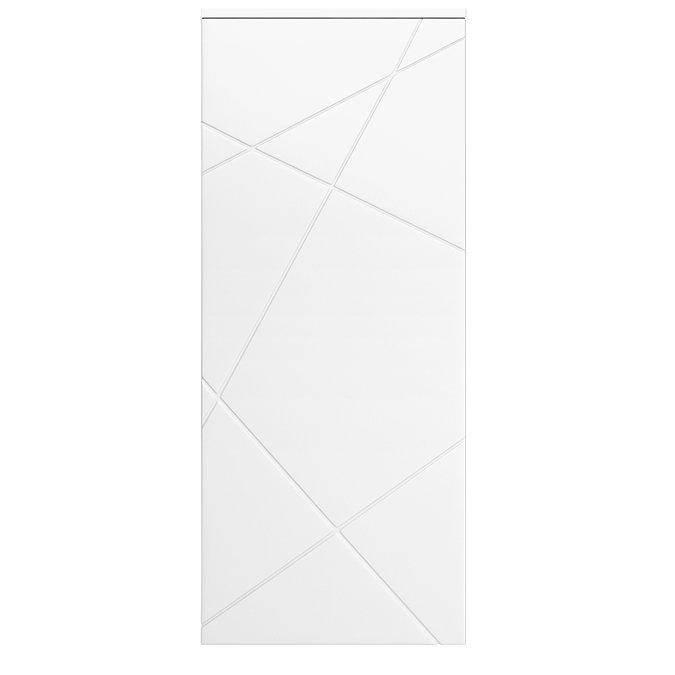

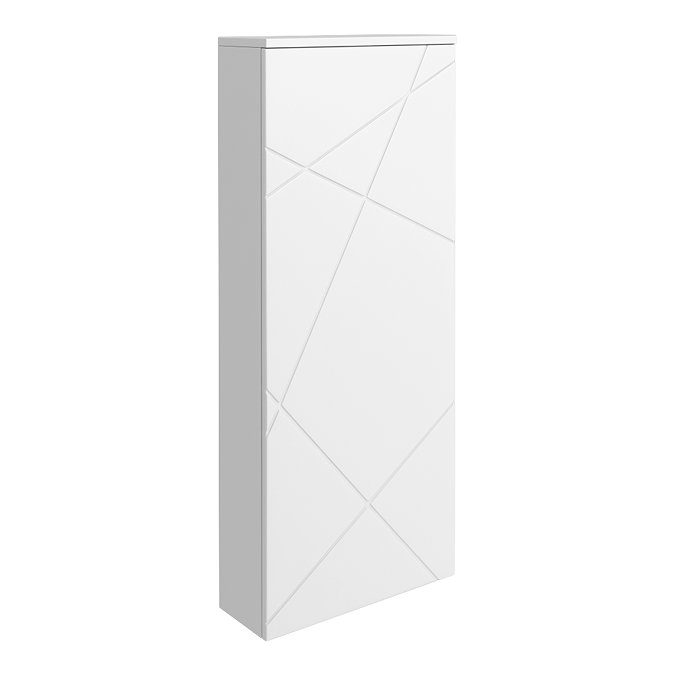

WC Unit Details:

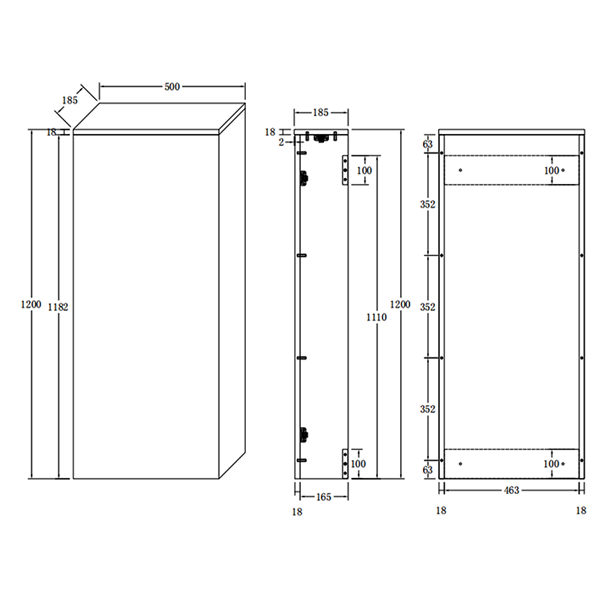

• Dimensions: H: 1200mm x W: 500mm x D: 185mm
• Range: Voyage
• Finish/Colour: Arctic White, Smooth Matt
• Material: MDF
• Type: WC Unit
• Design: Modern & minimalist
• Installation: Free-standing
• Features:
• Stylish Finish: Arctic White creates a sophisticated look that complements modern bathroom décor
• Concealed Plumbing: Neatly hides cistern and pipework for a clean, streamlined appearance
• Durable Construction: Made from high-quality materials for long-lasting use and easy maintenance
• Accessible Cistern: Access via removable panel or lid
• Fully Assembled: Ready for installation
• Coordinating Furniture Available
• FSC-Certified Manufacturer

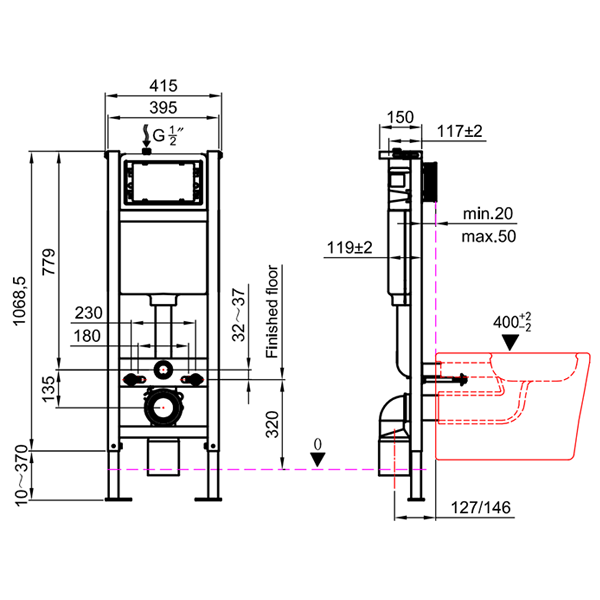

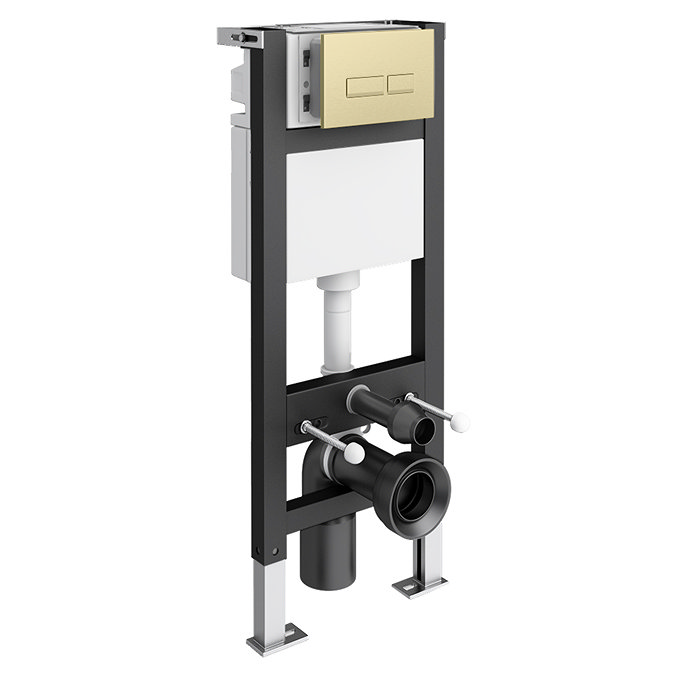

Cistern Frame & Flush Plate Details:

• Frame Dimensions:
• Height: 1078–1438mm (approx.)
• Width: 415mm
• Depth: 170–200mm
• Flush Volumes:
• Full Flush: 6–7.5L
• Half Flush: 2.5–4L
• Fill Valve Pressure: 0.2–16 bar
• Support Capacity: Metal frame supports up to 400kg
• Installation: Suitable for built-in or plasterboard walls

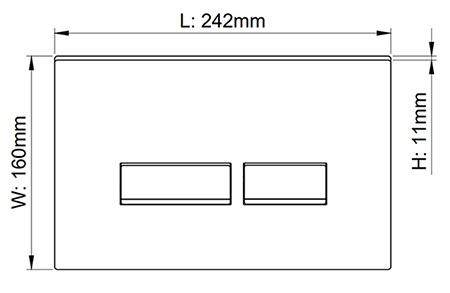

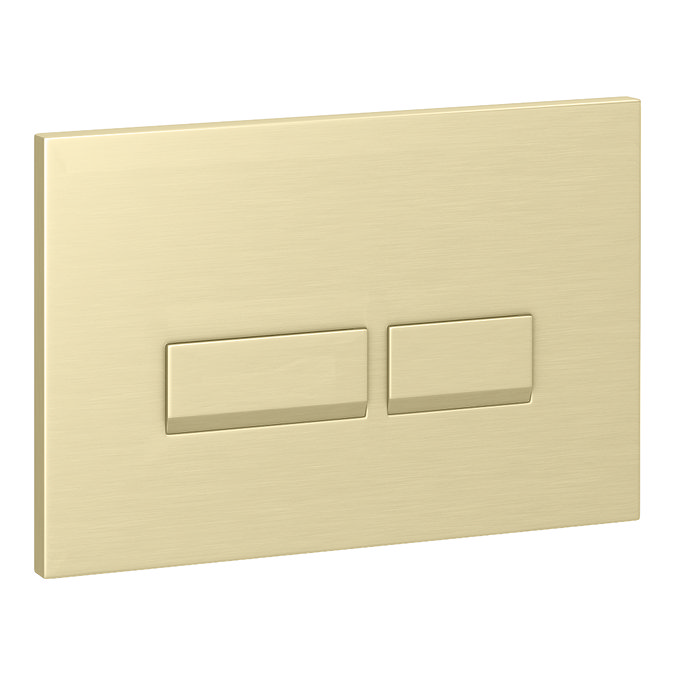

• Flush Plate:
• Size: 242 x 160mm
• Thickness: 10mm
• Colour: Brushed Brass
• Material: High-impact ABS
• Button Shape: Square
• Additional Features:
• Water-saving dual flush valve
• Condensation insulation for reduced noise
• Durable moulded tank
• Easy maintenance access
• Hassle-free installation
• Adjustable height and depth
• Sleek, minimalist design
• Compatible with a wide range of wall-hung pans
• Includes brackets and WC bend
• Certifications:
• Tested to EN 14055
• UKCA Marked
• ISO 9001:2015 Registered Manufacturer

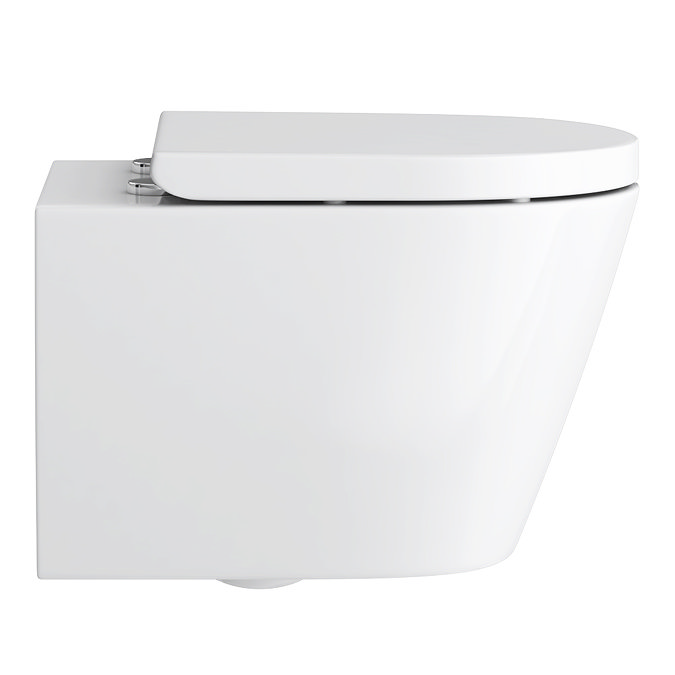

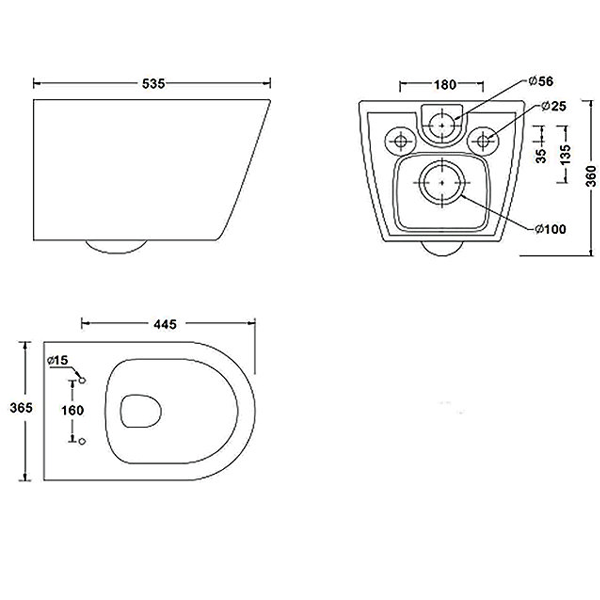

Toilet Pan Details:

• Style: Modern
• Shape: Compact Round
• Finish: Gloss White
• Type: Wall Hung
• Material: Ceramic
• Flushing System: Rimless
• Waste Outlet: Horizontal

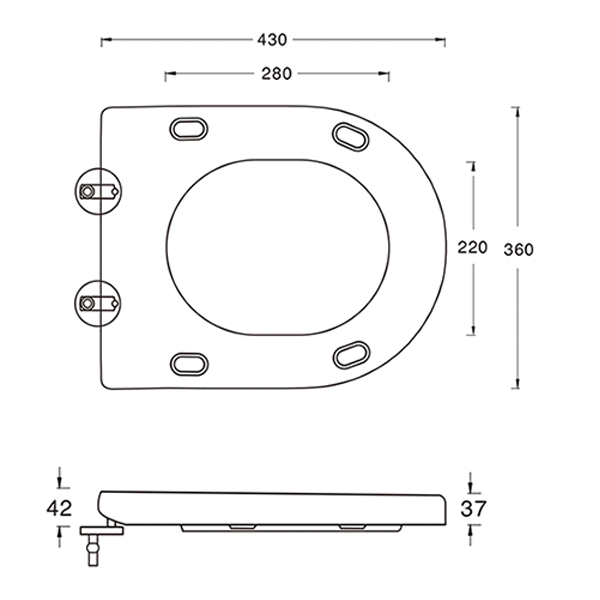

• Seat Features:
• Quick-release mechanism for easy cleaning
• Soft-close chrome hinges to prevent slamming
• Supplied with wrap-over soft-close top-fixing seat
• Fixings: Wall fixings included
• Certifications:
• Tested to BS EN 997:2018
• UKCA / CE Marked
• ISO 9001:2015 Registered Manufacturer

Please Note:

All measurements are approximate

Product images are for illustrative purposes only

The unit is water-resistant but not waterproof. Wipe away spillages promptly to maintain product longevity and guarantee validity.

Guarantee:
WC Unit: 2 Years
Pan: 5 Years (Seat: 1 Year)
Cistern Frame:
Tank: 5 Years
Fill & Flush Valve: 2 Years

Pack Includes:

Voyage Tall WC Unit - Arctic White
Toilet Frame with Front Dual Flush Cistern & Brushed Brass Flush Plate (Square Buttons)
Wall Hung Rimless Pan - Gloss White
D-Shape Wrap-Over Soft Close Urea Seat & Cover
