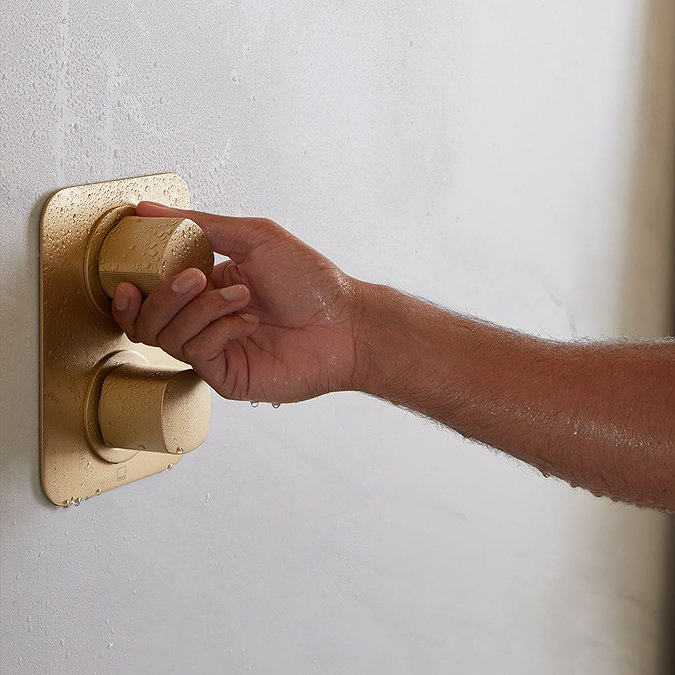

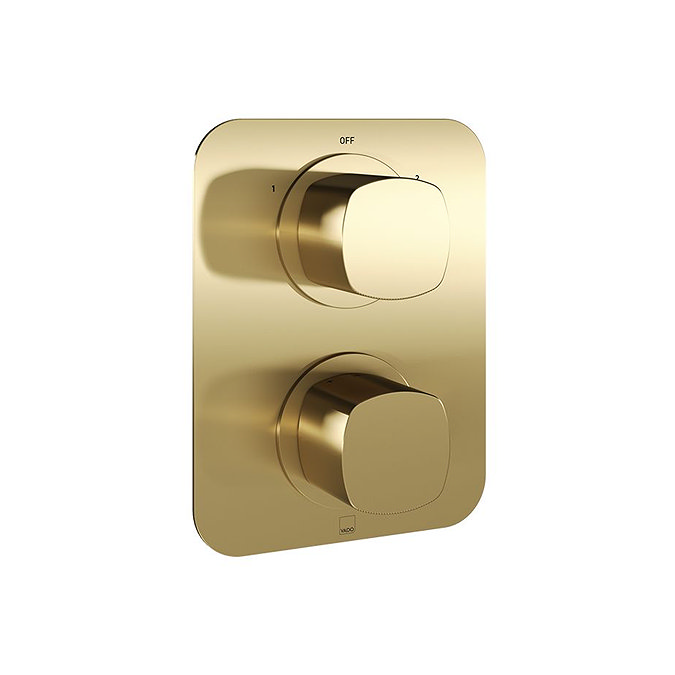

Vado Cameo Double Outlet Concealed Thermostatic Shower Valve - Satin Brass

Vado Cameo Double Outlet Concealed Thermostatic Shower Valve - Satin Brass

The Cameo Double Outlet Concealed Thermostatic Shower Valve offers a clean, modern finish with its square styling and satin brass faceplate. Designed for vertical installation, it provides precise temperature control and smooth switching between two outlets via its twin‑handle setup. With an installation depth of 70–95 mm and 3/4" female inlets and outlets, it fits neatly into a range of wall constructions. Suitable for gravity and combination‑boiler systems, it performs from 0.2 bar for showers and 1.0 bar for baths. Durable cartridges and a 10‑year guarantee ensure long‑lasting reliability.

Product Details

• Brand: Vado
• Type: Concealed Shower Valve
• Style: Square Handles
• Orientation: Vertical
• Finish: Satin Brass
• Product Code: CAM-148D/2-SBR
• Plumbing System Suitability: Gravity System, Combination Boiler
• Mounting: Wall Mounted
• Outlets: 2 Outlet
• Handles: 2 Handle
• Optimum Installation Depth: 82mm

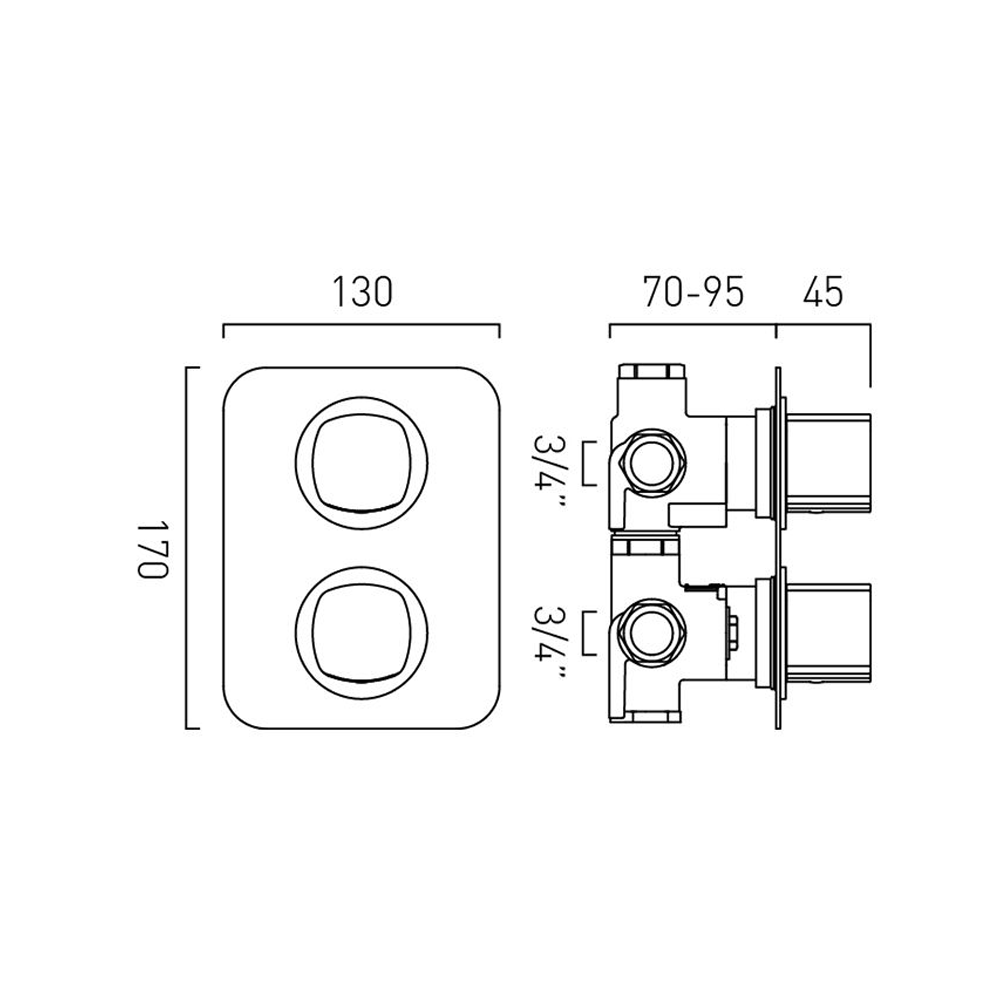

• Min-Max Wall Mount: 70-95mm
• Connections/Fittings: 2x 3/4" female inlets, 2x 3/4" female outlet
• Minimum Operating Pressure: 0.2 Bar (Shower), 1.0 Bar (Bath)

Please note that all measurements are approximate, and images are for illustrative purposes only

10-year guarantee
