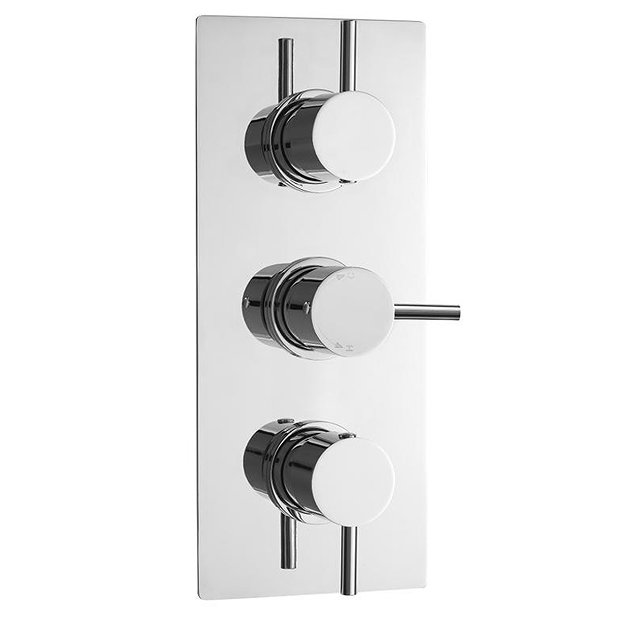

Ultra Quest Rectangular Concealed Thermostatic Triple Shower Valve

Ultra Quest Rectangular Concealed Thermostatic Triple Shower Valve - QUEV53

The Quest Rectangular Concealed Thermostatic Triple Shower Valve from Ultra - offers a flexible shower solution with a neat finish and is suitable for use with all water systems. Pipework is concealed for a clean look.

The unique cartridge is highly resistant to calcium build up - even in hard water areas and is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing.

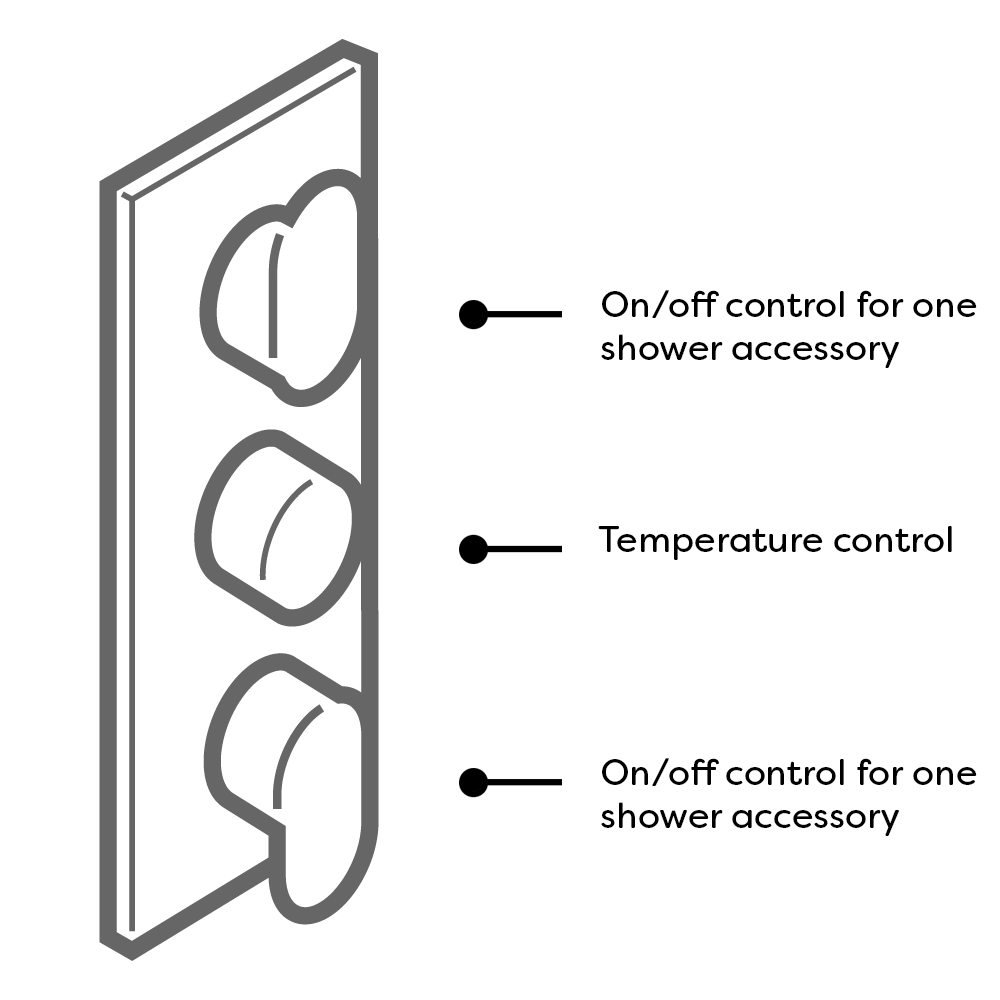

Features easy to operate controls, the top control operates one shower accessory the centre control adjusts the temperature and the bottom control operates the other shower accessory.

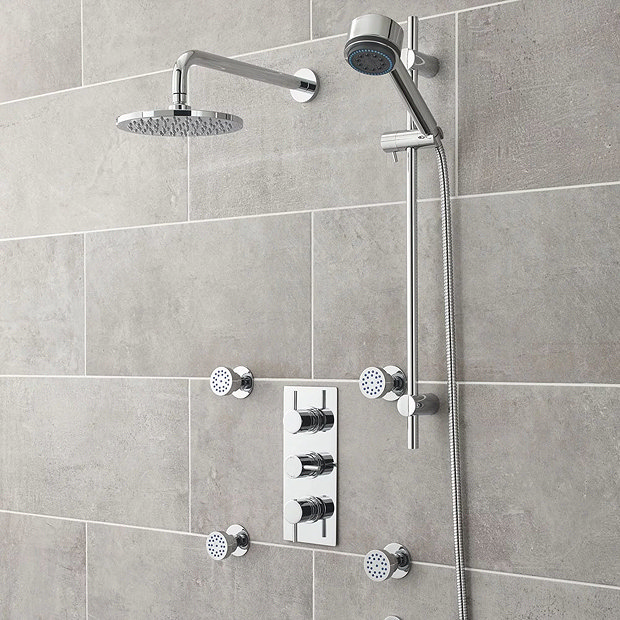

Operates two shower accessories separately or simultaneously.

Product Details

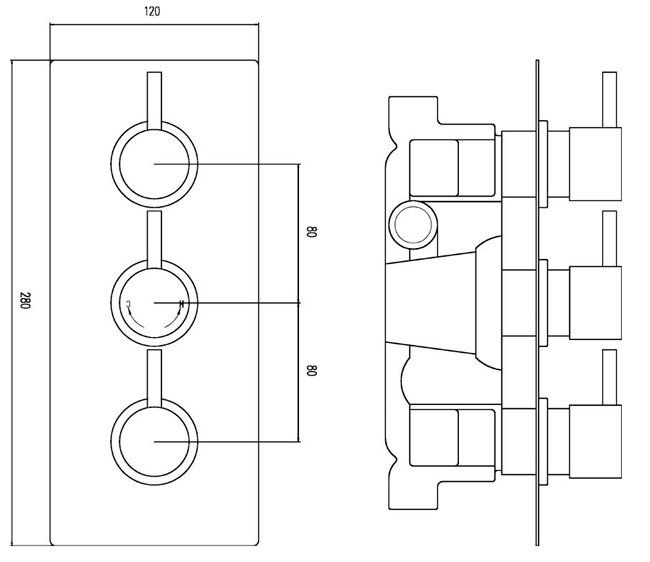

• Height - 280mm
• Width - 120mm
• Depth - 135mm
• Brand - Ultra
• Colour/Finish - Polished Chrome
• Material - Manufactured from high quality brass & ABS
• Pipe Size: 15mm (1/2" BSP)
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Water Pressure - LP1 - 0.1 bar pressure minimum
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 &°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates - even at low pressure.
• Simply remove the cartridge, turn 180 degrees and replace.
• WRAS Approved (2204707)

Guarantee - 5 Year

Flow Rates

0.1 Bar - 5.5 l/m
0.2 bar - 7.1 l/m
0.5 Bar - 14 l/m
1.0 Bar - 20 l/m
2.0 Bar - 29 l/m
3.0 Bar - 44 l/m
