Hudson Reed Tec Pura Plus Concealed Thermostatic Triple Shower Valve with Diverter

Hudson Reed Tec Pura Plus Concealed Thermostatic Triple Shower Valve with Diverter

The Tec Pura Plus tripe shower valve incorporates thermostatic control with the most up to date design. A thermostatically controlled shower with separate controls for the flow & temperature. Suitable for all types of plumbing installation this shower valve has the added safety benefit of a built in anti scald device should the cold water supply fail.

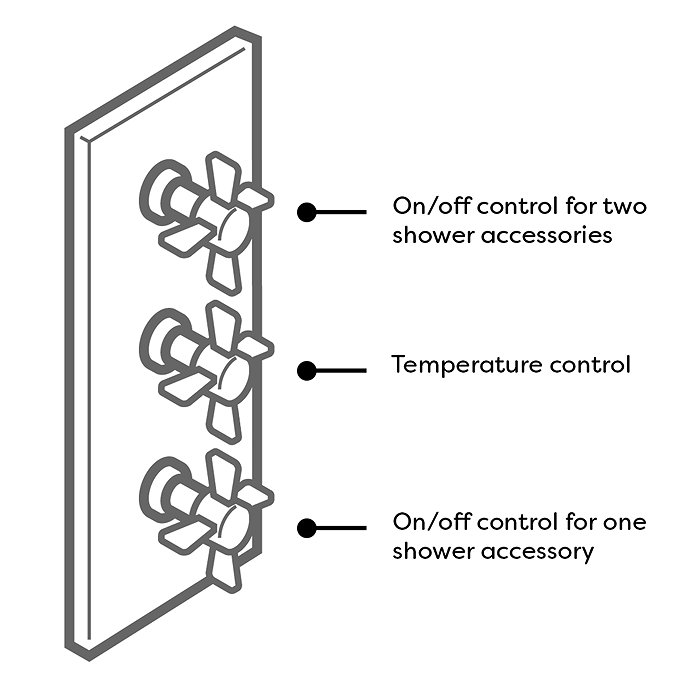

Operates two shower accessories separately or simultaneously and diverts to a third option: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets with option to divert to freeflow bath filler.

The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing, simply remove the cartridge turn 180° and replace. The cartridge is also highly resistant to calcium build up - even in hard water areas

Product Details

• Height - 280mm
• Width - 80mm
• Depth - 137mm
• Valve/Cartridge Type - 1/4 Turn Ceramic Disc
• Pipe Size - 15mm & 22mm
• Colour/Finish - Polished Chrome
• Outlets - 3
• Material - High quality brass & ABS
• Water Pressure - MP - 0.5 bar pressure minimum
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure the valve will shut down as per the relevant standard.
• Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates - even at low pressure.
• Suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers

Guarantee - 20 Year

Flow Rates

0.5 Bar - 13 l/m
1.0 Bar - 17 l/m
2.0 Bar - 24 l/m
3.0 Bar - 27 l/m
