Ellis & Co Wireless Door Sensor

Ellis & Co Wireless Door Sensor

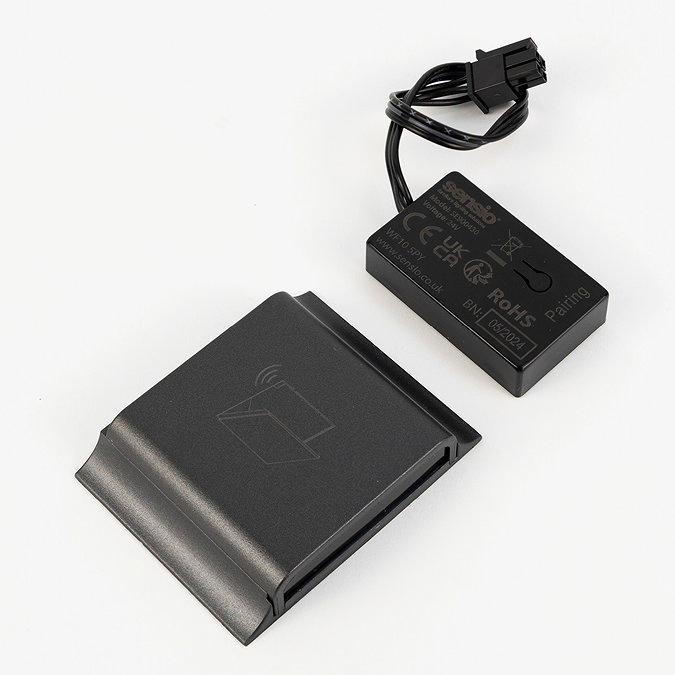

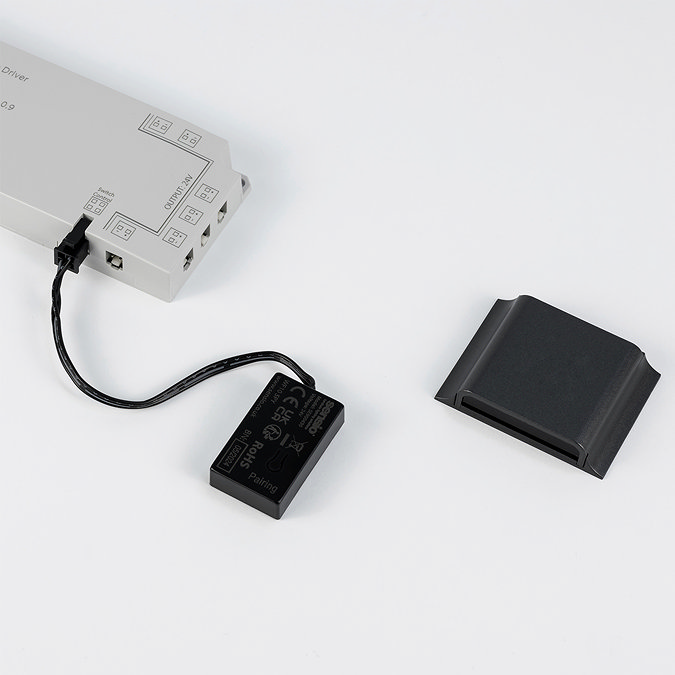

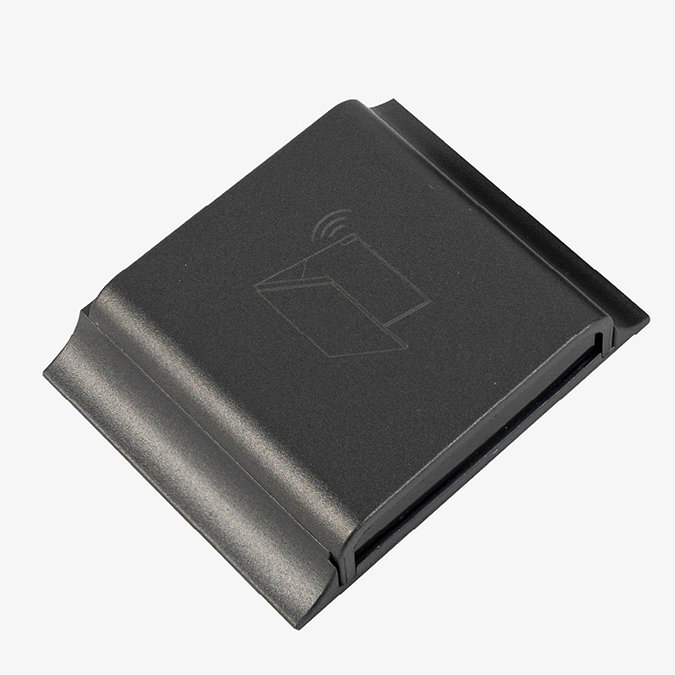

The Ellis & Co Sensors are the latest wireless offering from Ellis & Co, eliminating the hassle of dealing with wires and cables. These sensors also lower energy consumption and carbon footprint as they do not require a mains power supply. The complete range consists of an IR sensor with two functions: on/off or dimming, a PIR sensor with a range of 10m, a door sensor that can be used as a single or double door sensor, and finally, a touch sensor. The discreet sensor can be mounted to any surface easily or recessed with a mounting bracket. The sensors function alongside a receiver that plugs directly into the LED driver. A maximum of ten sensors can be paired with one receiver, ensuring there are no blind spots.

Product Details

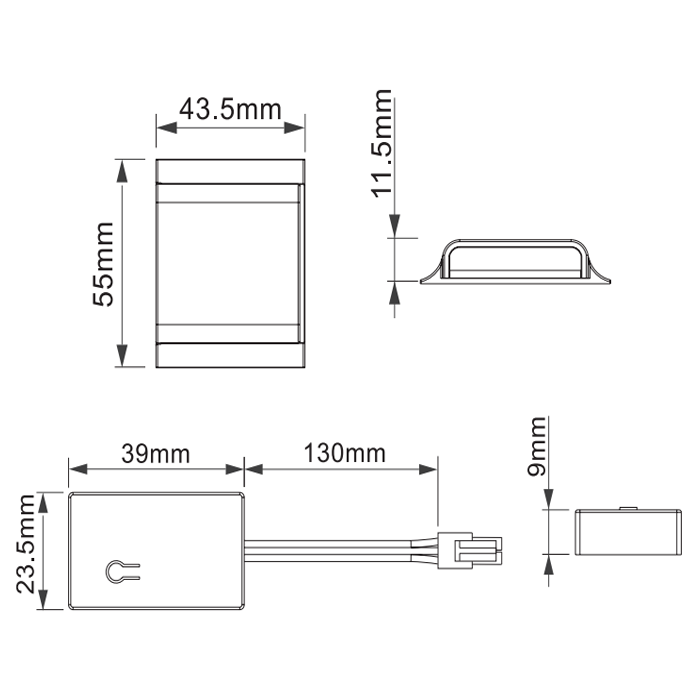

• Dimensions: 43.5mm x 55mm x 11.5mm
• Cable length: 130mm
• Voltage: 3V - 24V
• IP Rating: IP20
• Detection range: 1m - 10m
• Power Source: Operates on a 3V button battery, providing reliable power.
• Detection Range: Detects movement within 0 - 50mm
• Battery Life: Long-lasting battery life of 18 - 24 months, minimizing maintenance.
• Operating Conditions: Functions efficiently in temperatures ranging from -20°C to +40°C and humidity levels between 10% to 90% RH.

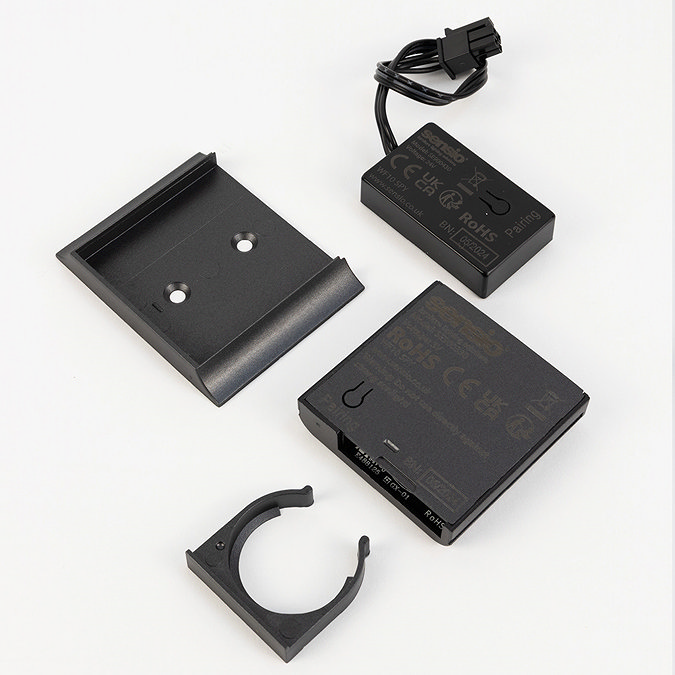

• Installation: Easy surface-mounted installation with the included bracket.
• Compatibility: Can pair up to 10 sensors to one receiver (Includes Receiver)
• Types of Sensors: Supports various sensor types including IR, PIR, and Touch.

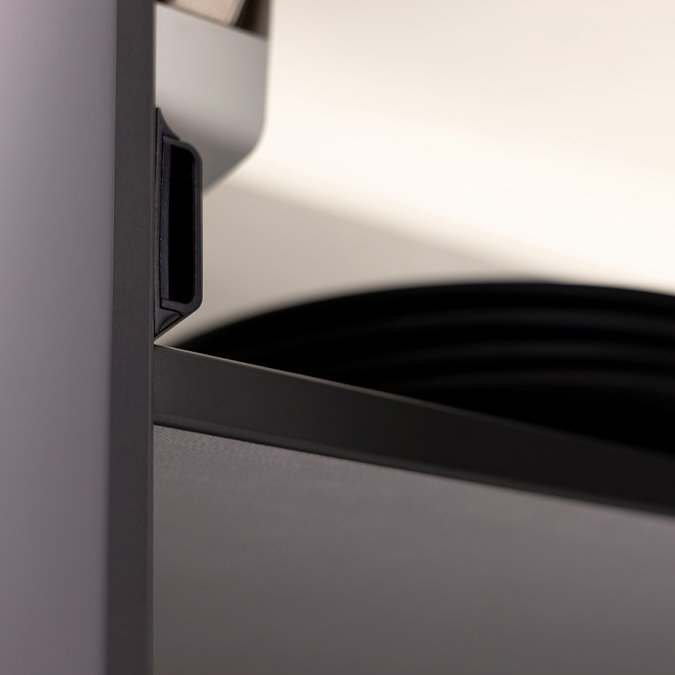

• Functionality: Activates lighting by simply opening cabinet doors, adding convenience to your daily routine.
