Nuie Windon Twin Concealed Thermostatic Shower Valve

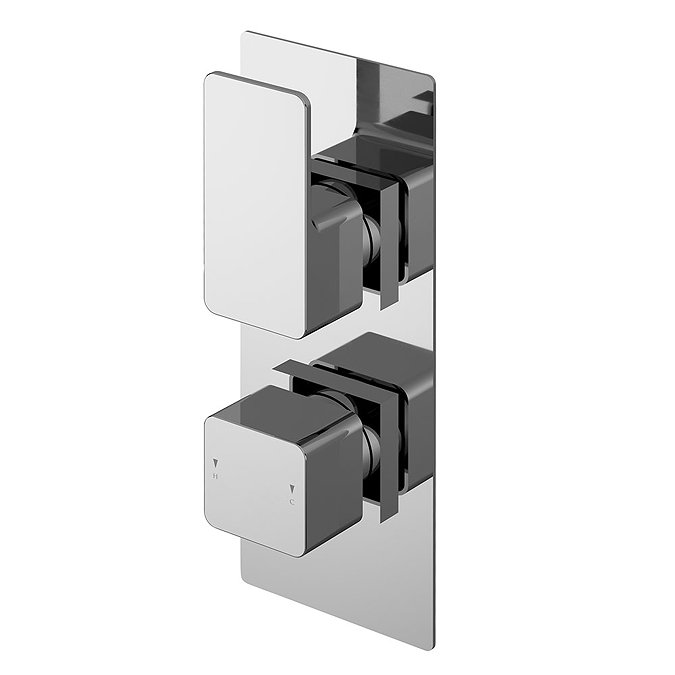

Nuie Windon Twin Concealed Thermostatic Shower Valve - WINTW01

With sleek lines and modern angular design, the Windon Twin Concealed Thermostatic Shower Valve is the perfect upgrade for all contemporary bathrooms. Made from high quality materials and beautifully finished in chrome.

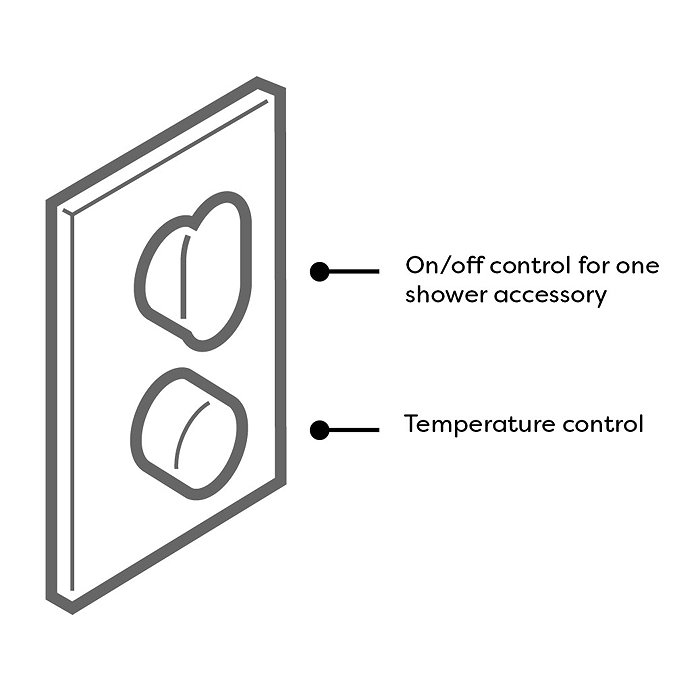

This concealed shower valve has two easy controls, for temperature and flow. Designed to operate one bath/shower accessory i.e. bath spout, slide rail kit or overhead shower.

Product Details

• Brand: Nuie
• Product Code: WINTW01
• Height: 215mm
• Width: 120mm
• Depth: 135mm
• Finish: Chrome
• Can be fitted vertically or horizontally
• Thermostatically controlled
• Material: Brass / ABS
• Concealed shower
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 1/2"
• Operating Pressure: 0.1 bar
• For use with 1 Outlet
• Approvals: WRAS

All measurements are approximate

Guarantee: 5 Year

Flow Rates

0.1 Bar - 5.5 l/m
0.2 Bar - 7.1 l/m
0.5 Bar - 14 l/m
1 Bar - 20 l/m
2 Bar - 29 l/m
3 Bar - 44 l/m
